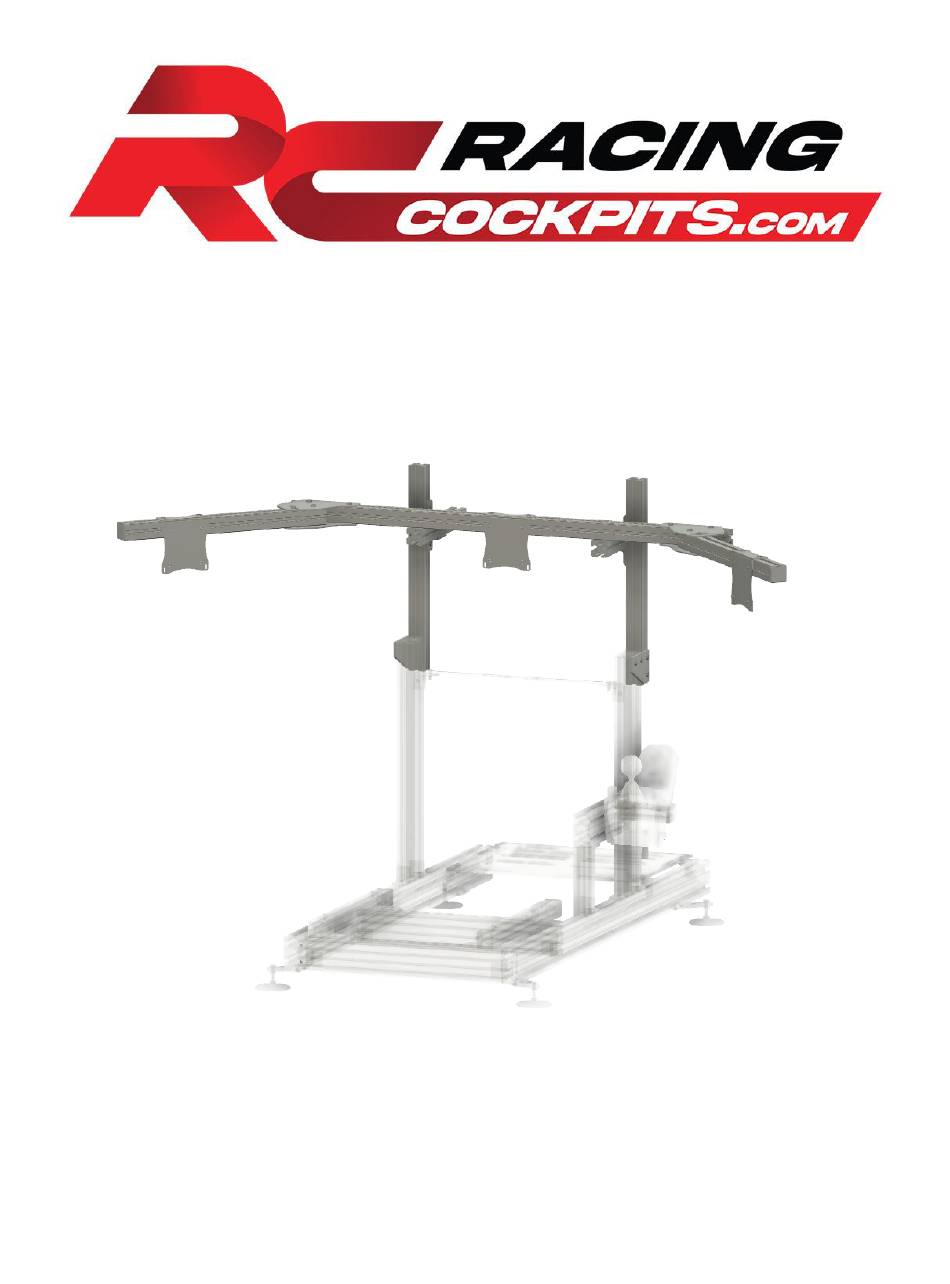

SPORT Series - TRIPLE Monitor Mount
Manual (v.05/2021.1)
If you need any assistance building, please let us know. We are here to help!
Team@RacingCockpits.com
+1(833)RACING2
©2021 Racing Cockpits Operating Company, LLC

Advertisement

loading
Need help?

Need help?

Do you have a question about the SPORT TRIPLE and is the answer not in the manual?

Questions and answers

Related Manuals for RACING COCKPITS SPORT TRIPLE

Summary of Contents for RACING COCKPITS SPORT TRIPLE

  • Page 1 SPORT Series - TRIPLE Monitor Mount Manual (v.05/2021.1) If you need any assistance building, please let us know. We are here to help! Team@RacingCockpits.com +1(833)RACING2 ©2021 Racing Cockpits Operating Company, LLC...
  • Page 2 SPORT - TRIPLE Monitor Mount Parts Guide Vesa Mounts Pivot Plates (Right Hand & Left Hand) 1-Slot Profile 4-Hole Joiner Bracket Page 2 Sport Series - TRIPLE Monitor Mount Manual (v.05/2021.1)
  • Page 3 SPORT - TRIPLE Monitor Mount Parts Guide (Cont.) 2-Hole 90° Corner Bracket 1-Hole End Cap Standard Spring T-Nut 16mm Standard Bolt 12mm SHORT Bolt Page 3 Sport Series - TRIPLE Monitor Mount Manual (v.05/2021.1)
  • Page 4 How to Use T-Nuts: A Quick Guide Method 1: Simply slide T-Nut into T-Slot from the side. Method 2: Push T-Nut into T-Slot at an angle then snap into place so it ends up flat. You can lever the allen wrench in the screw hole to help with this. This method is what you will use once the ends are blocked.
  • Page 5 How to Use T-Nuts: A Quick Guide (Cont.) Once T-Nut is in place, simply secure bracket etc. with the correct length bolt. PRO TIP: If you are installing vertically and need to hold the T-Nut in place, you can put the long end of the allen wrench into the T-Slot channel to hold it from below while hand tightening the bolt to secure it from sliding.
  • Page 6 Build Guide Step 1: Connect Monitor Mount Uprights Profile: ● 2 x 19” 1-Slot Profiles Hardware: ● 2 x 4-Hole Joiner Brackets ● 8 x 16mm Standard Bolts ● 8 x Standard Spring T-Nuts Connect 19” monitor uprights to the back of cockpit uprights. TIGHTEN well.
  • Page 7 Step 2: Add Lower Extender Arm Brackets ● 2 x 2-Hole 90° Corner Brackets ● 2 x 16mm Standard Bolts ● 2 x Standard Spring T-Nuts Both need to be level with each other. Use a tape measure to ensure they are at the same height.
  • Page 8 Step 3: Add Extender Arms Profile: ● 2 x 10” 1-Slot Profiles Hardware: ● 2 x 16mm Standard Bolts ● 2 x Standard Spring T-Nuts Both need to be even front to back with each other. Use a tape measure to ensure they are mounted at the same distance.
  • Page 9 Step 4: Add Upper Extender Arm Brackets ● 2 x 2-Hole 90° Corner Brackets ● 4 x 16mm Standard Bolts ● 4 x Standard Spring T-Nuts Page 9 Sport Series - TRIPLE Monitor Mount Manual (v.05/2021.1)
  • Page 10 Step 5: Add Horizontal Rail Profile: ● 1 x 40.5” 1-Slot Profile Hardware: ● 2 x 2-Hole 90° Corner Brackets ● 4 x 16mm Standard Bolts ● 4 x Standard Spring T-Nuts Horizontal rail needs to be resting ON TOP of extender arms, flush with the ends of the extender arms.
  • Page 11 Step 6: Install Vesa Mount on Center Monitor Hardware: ● 1 x Gaming Monitor (Purchased Separately) ● 1 x Vesa Mount ● 4 x 12mm Vesa Mounting screws Tighten Vesa mount so screws are in the middle of the vertical adjustment channels not too tight.
  • Page 12 Step 7: Install Center Monitor Hardware: ● 2 x 12mm SHORT Bolts ● 2 x Standard Spring T-Nuts By keeping bolts slightly loosened you can make Two Types of Adjustments: 1. Slide right & left along the rail (Move until centered. Check with tape measure.) 2.
  • Page 13 Step 8: Adjust Height & Distance Now let’s adjust the viewing height, and viewing distance. Be careful to prevent damaging the monitor. Have a good grip when moving things, and be sure to re-tighten everything well once you’re done with each step. Pro Tip: Viewing distance should be set as close as possible.
  • Page 14 Step 9: Adjust Height & Distance (Cont.) Adjust Viewing Height (Up & Down): Slightly loosen horizontal bolts highlighted in blue Remember to tighten everything once you’re done! Page 14 Sport Series - TRIPLE Monitor Mount Manual (v.05/2021.1)
  • Page 15 Step 10: Install Top & Bottom Pivot Plates Hardware: ● 2 x Top Pivot Plates (with angle print) ● 2 x Bottom Pivot Plates (blank) ● 8 x 12mm SHORT Bolts ● 8 x Standard Spring T-Nuts Install top pivot plates (with print) and bottom pivot plates (no print).
  • Page 16 Step 11: Install Side Arms Profile: ● 2 x 19” 1-Slot Profile Hardware: ● 8 x 12mm SHORT Bolts ● 8 x Standard Spring T-Nuts Connect 19” side arms with 12mm bolts in the top and bottom brackets. You may need to slide the top and/or bottom slightly to get it all lined up.
  • Page 17 Step 12: Add End Caps Hardware: ● 2 x 1-Hole End Caps Install 1-Hole End Caps on ends of side arms. Page 17 Sport Series - TRIPLE Monitor Mount Manual (v.05/2021.1)
  • Page 18 Step 13: Install Vesa Mount on Left & Right Monitors Hardware: ● 2 x Gaming Monitors (Purchased Separately) ● 2 x Vesa Mounts ● 8 x 12mm Vesa Mounting screws Tighten Vesa mounts so screws are in the middle of the vertical adjustment channels not too tight.
  • Page 19 Step 14: Install Left & Right Monitors Hardware: ● 4 x 12mm SHORT Bolts ● 4 x Standard Spring T-Nuts By keeping bolts slightly loosened you can make Two Types of Adjustments: 1. Slide right & left along the rail. 2.
  • Page 20 Step 15: Adjust & Align Monitors Now you’ll use a combination of 2 adjustment types to get the side monitors mostly aligned (fine tuning in next step): 1) Slide side monitors along side arm rail (by slightly loosening top bolts) 2) Slide the entire arm assembly (pivot plates, arm, &...
  • Page 21 Step 16: Fine-Tune Monitor Alignments Now you’ll use a combination of 3 adjustment types to get the monitors *perfectly* aligned: 1) Slide side monitors up and down in Vesa mount vertical channels (Slightly loosen bottom vesa screws, use slight force and rotation movements to slide up or down. Then re-tighten screws) 2) Rotate monitors in Vesa mount vertical channels (Slightly loosen bottom vesa screws, use slight force and rotation movements.
  • Page 22 Step 16: Fine-Tune Monitor Alignments (Cont.) 3) Adjust monitor tilt angle forward & back with Vesa mount top channels: Page 22 Sport Series - TRIPLE Monitor Mount Manual (v.05/2021.1)
  • Page 23 Step 17: Race, Adjust & Tighten! Congratulations!!! You are now ready to race. Our Monitor Mounts are designed to be completely customizable, so feel free to adjust everything to suit your needs and preferences. After a few days of use, go back around and tighten up all screws/bolts to keep everything nice and rigid after it settles in.
