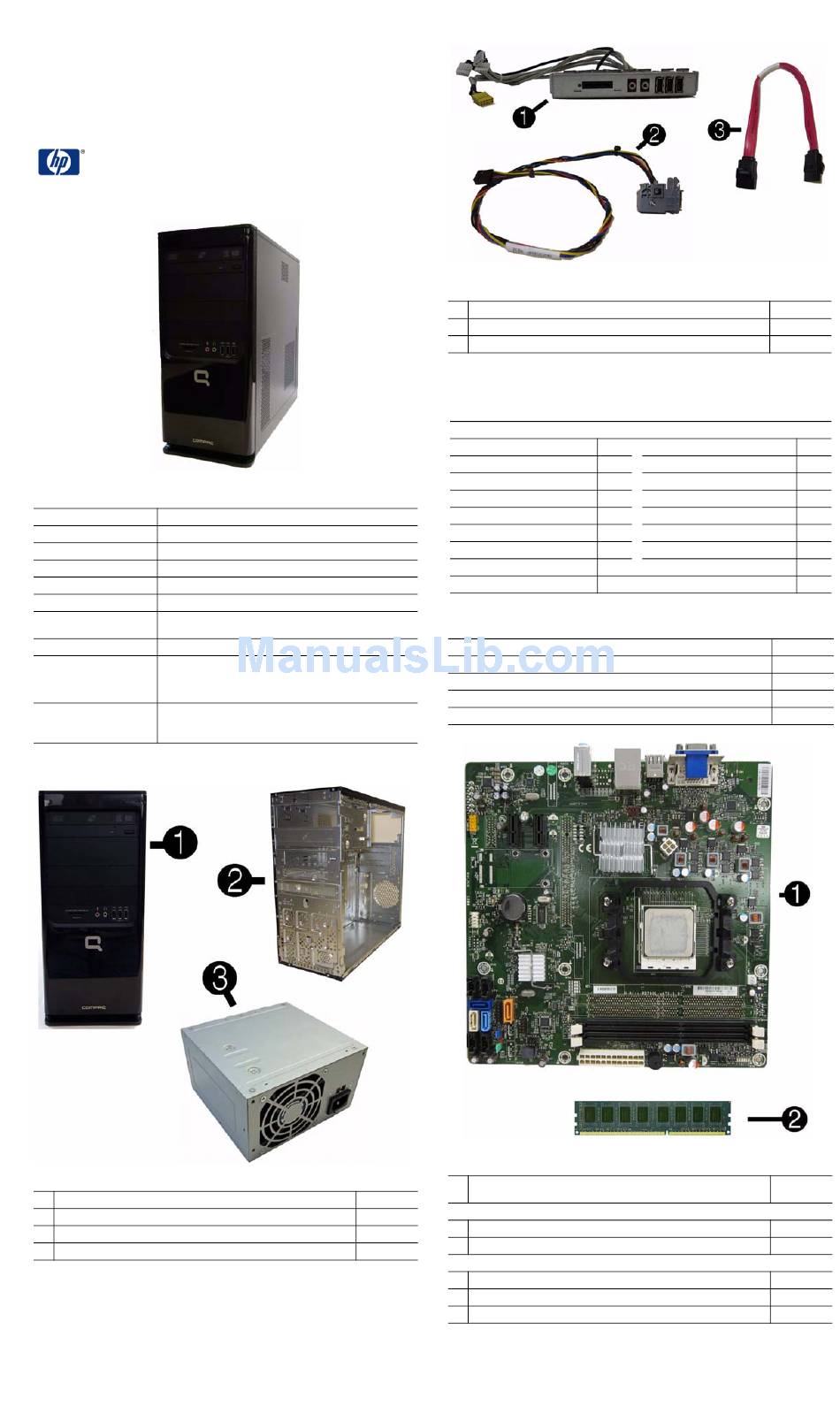

Compaq 315eu Illustrated Parts & Service Map

Illustrated Parts & Service Map
Compaq 315eu Microtower Business PC
©
2010 Hewlett-Packard Development Company, L.P. The information con-
tained herein is subject to change without notice. HP shall not be liable for tech-
nical or editorial errors or omissions contained herein. Intel, Pentium, Intel
Inside, and the Intel logo are trademarks or registered trademarks of the Intel
Corporation and its subsidiaries in the U. S. and other countries.
Document Number 625295-003.
Key Specifications
Processor Type AMD Athlon™ II X2
RAM Type DDR3-SDRAM DIMMs, PC3-8500 (1066 MHz)
Maximum RAM Supported 4 GB
Expansion Slots (2) PCIe x1
Graphics Adapter Integrated ATI Radeon 3000 Graphics
Chipset AMD 760G
Power 180-watt ATX Power Supply - PFC/non-PFC with a 115v/230v
line switch (varies by country/region)
Drive Support (1) external 5.25-inch
I/O Interfaces (9) USB 2.0 ports: (3) front ports, (4) rear ports, (2) internal
ports on motherboard; (1) rear audio in, (1) rear audio out, (1)
rear mic, (1) VGA, (1) RJ-45, (1) 6-in-1 card reader, (1) front
mic, (1) front headphone
Operating Systems •
•
•

Spare Parts

System Unit
1 Front bezel
* Bezel blank
2 Chassis
3 Power supply, 180W
*Not shown
Compaq 315eu Microtower Illustrated Parts & Service Map
3rd Edition January 2011.
Windows 7
Windows Vista
FreeDOS
Cables
1 Front I/O assembly with 6-in-1 card reader
2 Power switch/LED with holder
3 SATA hard drive cable with latch, 6.5 inch (165 mm)
*Not shown
Keyboards (not illustrated)
USB, red
Arabic
Belgian
Czech
Dutch
French
German
Greek
International English
Italian
Mass Storage Devices (not illustrated)
750 GB hard drive, 7200 rpm
640 GB hard drive, 7200 rpm
500 GB hard drive, 7200 rpm
320 GB hard drive, 7200 rpm
160 GB hard drive, 7200 rpm
Standard and Optional Boards
1 System board, AMD 760G (includes bumper and replacement thermal
material)
622203-001
Memory modules (PC3-10600, CL9)
622199-001
2 1 GB
not spared
* 2 GB
619959-001
AMD Athlon II X2 processor with alcohol pad and thermal grease:
* X2 215, dual core, 2 x 512 KB L2 cache, 2.70 GHz, C2
* X2 220, dual core, 2 x 512 KB L2 cache, 2.80 GHz, C2
* X2 245, dual core, 2 x 512 KB L2 cache, 2.90 GHz, C3
* Not shown
625295-003
537923-xxx
-171 Nordic
-381 Polish
-CG1 Portuguese
-331 Russian
-051 Spanish
-041 Swedish
-151 Swiss
-AR1 Turkish
-061 U.K.
619960-001
622204-001
622200-001
-DX1
-241
-131
-251
-071
-101
-BG1
-141
-031
619964-001
619962-001
619963-001
619961-001
619967-001
619958-001
576109-001
576110-001
586730-001
611192-001
643140-001
