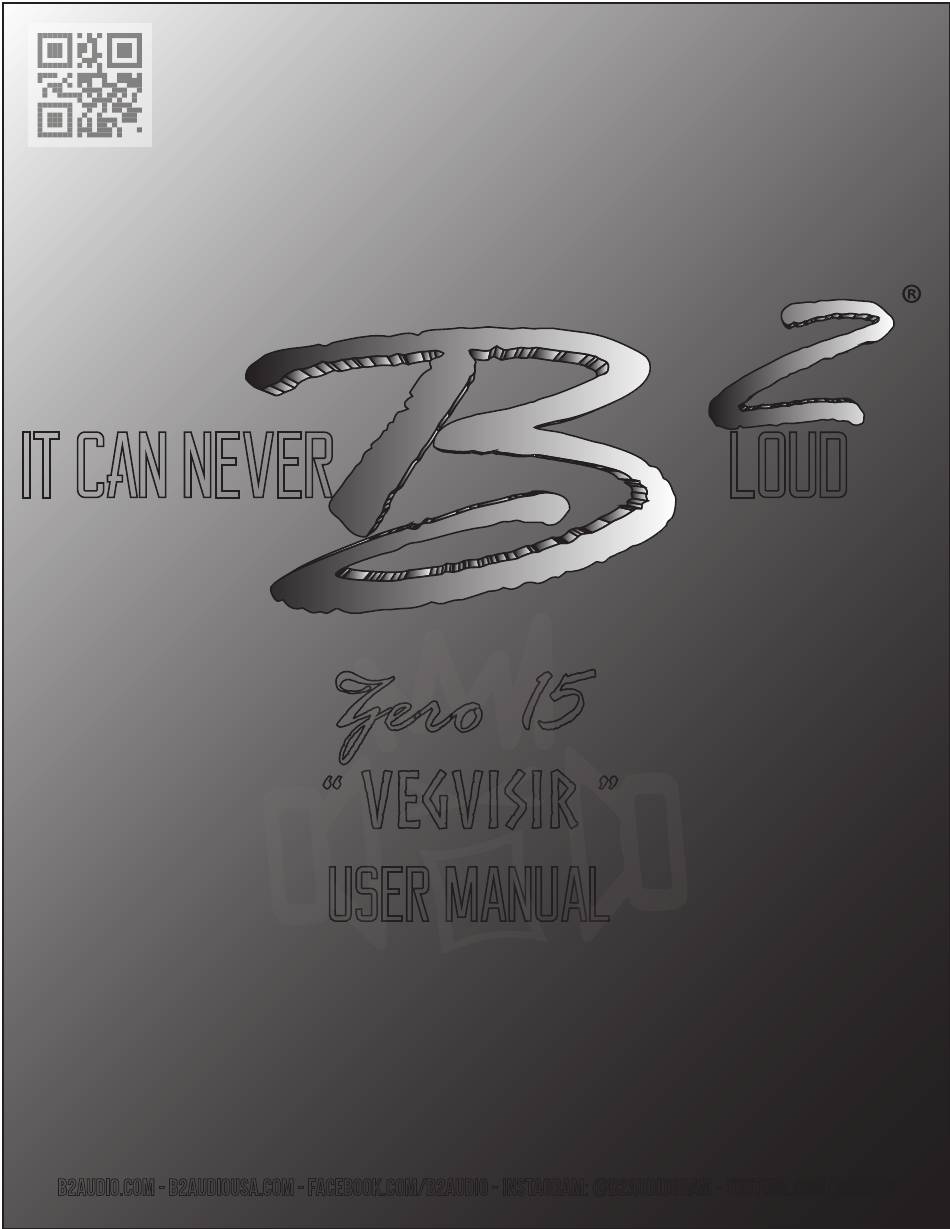

- Page 1 IT can NEVER LOUD Zero 15 “ vegvisir” USER MANUAL #ITCANNEVERB2LOUD B2AUDIO.COM - B2AUDIOUSA.COM - FACEBOOK.COM/B2AUDIO - INSTAGRAM: @B2AUDIOGRAM - youtube.com/b2audio...
-
Page 2: Table Of Contents
Welcome to the forefront of audio innovation with the B2 Audio Zero series. These ampli ers represent a signi cant advancement in the realm of high-performance audio, setting a new benchmark for precision, power, and reliability. At B2 Audio, we are committed to excellence. The Zero ampli ers embody this commitment, integrating state-of-the-art technology and superior engineering. -
Page 3: Design Specifications
▪ design specifications model: zero 15 - vegvisir circuit configuration: hi-ef class d frequency response: 10 hz-300 hz signal to Noise Ratio: >95 db input sensitivity: 5 v-0.2 v crossover circuit: 24 db/oct low pass crossover: 35 hz-250 hz subsonic crossover: 10 Hz - 50 hz phase: 0 ~ 180°... -
Page 4: Panel Layout
Panel layout INPUT LPF (LOW PASS FILTER 20 Hz ~200 Hz, 24 dB/oct) RCA signal input for left & right channel. Adjusts the cut o point for the low pass crossover A minimum of 0.2V input signal is required for correct at the frequency chosen. -
Page 5: Power & Speaker Terminals
Power terminals 1200 A fuse rating power terminal GND (Ground connection) +12v (Power connection) Connects to the vehicle’s chassis. Keep as short as Connects to the positivie terminal of the battery. possible (< 20” / 50 cm). Use minimum 0AWG cable For speci ed performance 0AWG cable is required. -
Page 6: Installation
installation Installation Considerations Installing an ampli er on your own can be a rewarding project, but it's important to approach it with caution and thorough preparation. Reading the owner's manual thoroughly will provide you with the necessary knowledge and precautions to take before beginning the installation process. If you nd yourself uncertain at any point, seeking assistance from authorized distributors or dealers is a wise choice to ensure that your setup is correctly con gured and your warranty remains valid. -
Page 7: Power & Speaker Configuration
speaker connection Speaker impedance 1 Ohm ~ 8 Ohm will reach thermal at a faster rate & will eventually go into protect. Impedance load under 1 ohm is not warranted! We recommend using minumum 8 Ga speaker cables to acquire the intended performance & e ciency. Run the speaker cables from your speakers to the ampli er’s mounting location. -
Page 8: Master / Daisy Chained Mode
daisy chain - master and daisy mode master daisy In daisy chain mode, the master ampli er's audio settings, such as gain, crossover, etc., are routed to the ampli er marked as daisy. From that daisy ampli er, you can route the input signal from the master ampli er to a second daisy by using the output RCA on the rst daisy ampli er. -
Page 9: Accu8 - The Accurate Crossover
accu8 crossover accu8 • The accurate crossover setting Dealing with guesses and improper settings of your crossovers seems futile when you have invested both time and money into your audio system. If you use a DSP, you can set the crossovers at any speci ed frequency you see t. On the ampli er's crossover setting, you would have to rely on costlier tools or guesses. -
Page 10: Audio Precision Charts
audio precision charts 14.4V 40HZ 1 ohm Zero 15 dx=0.000 W 0.05 0.02 0.01 0.005 0.002 0.001 15.21k Zero 15 12.6V 40HZ 1 ohm dx=0.000 W 0.05 0.02 0.01 0.005 0.002 0.001 1 1.85k... -
Page 11: Troubleshooting
troubleshooting The protection circuits of the ampli er prevent severe damage from faulty conditions and improper use. The protection indicator will switch on due to a short circuit connection, high/low voltage or speaker overload, causing the ampli er to turn o . Before inspecting the problem, turn all levels down and all power o , then carefully check the installation for wiring mistakes, shorts, or faulty ground.
