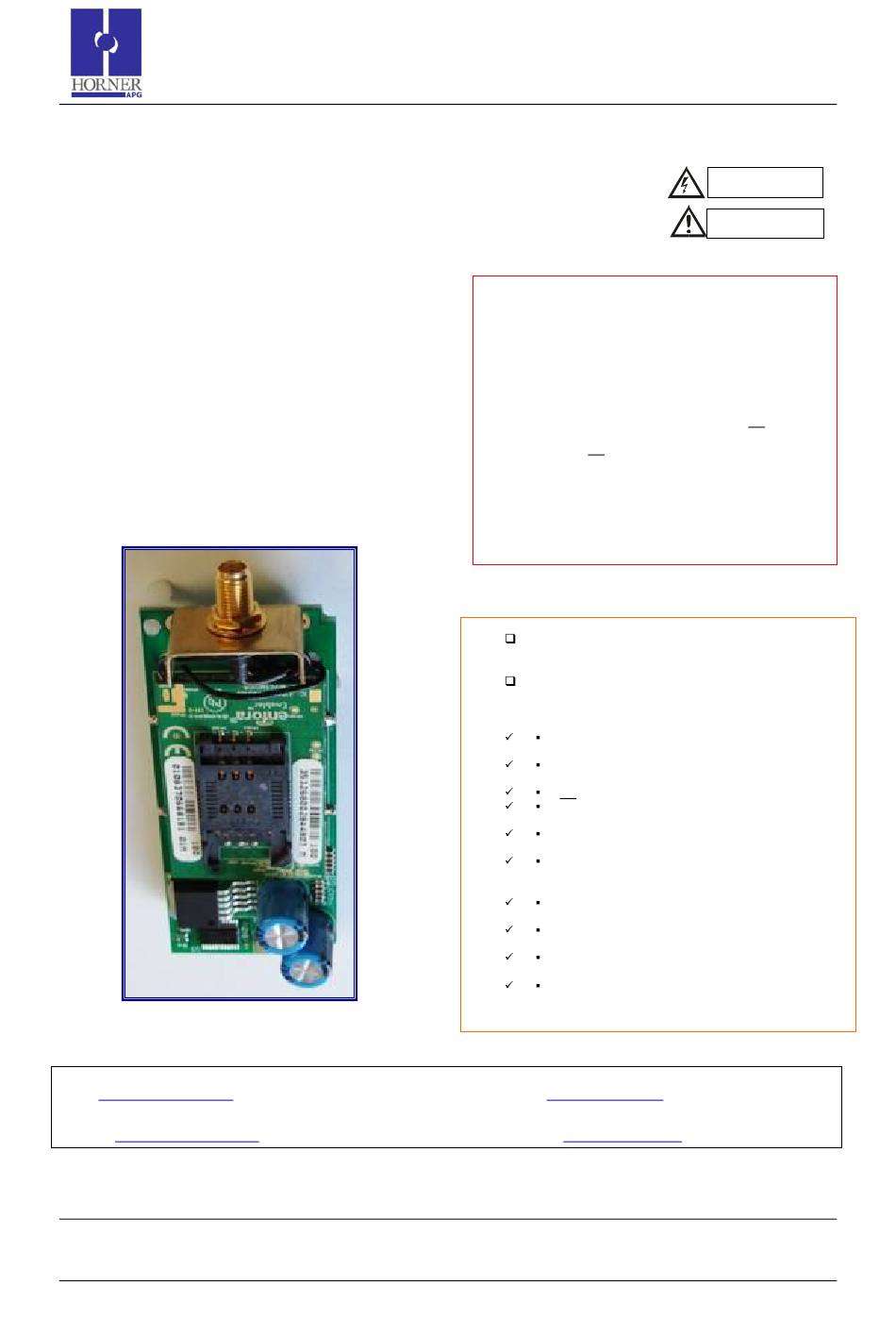

HORNER APG HE-GSM04 Operating Instructions

XLe / XLT GSM Modem COM Module: HE-GSM04
1 GENERAL
The GSM modem module supports the following features :
•
SMS
2 SMS FUNCTIONALITY
•
Up to 32 Send and 32 Receive messages with up to 20
Variables per message.
•
Group Names allow multiple devices to be grouped
together so that a particular message will be sent to a
number of different devices.
•
Phone number including country code and area code.
The phone numbers may have special chars like
brackets, comma, plus and dash.
•
Register numbers can be used instead of phone
numbers. In this case, the phone number is stored in
PLC registers as ASCII data with a maximum size of
20 chars (10 words).
•
Bit, Byte, Word, Double Word and Real variable types
supported.
•
64-bit Status word includes communication status,
Initialization status, signal strength, invalid messages
count and Retry count for Init commands
•
160 character message buffer stores last sent or
received message.
TECHNICAL SUPPORT
For assistance, contact Technical Support at the following locations:
EUROPE
Email: tech.support@hornerirl.ie,
Fax: +353 (0)21 4321 826
Tel : +353 (0)21 4321 266
Website : http://www.horner-apg.com
Information in this document is subject to change without notice. This document is the property of Horner APG and shall not be modified as to
3 INSTALLATION / SAFETY
When found on the product, the
following symbols specify:
WARNING: To avoid the risk of electric shock or burns,
always connect the safety (or earth) ground before making
any other connections.
WARNING: To reduce the risk of fire, electrical shock, or
physical injury it is strongly recommended to fuse the voltage
measurement inputs. Be sure to locate fuses as close to the
source as possible.
WARNING: Replace fuse with the same type and rating to
provide protection against risk of fire and shock hazards.
WARNING: In the event of repeated failure, do not replace
the fuse again as a repeated failure indicates a defective
condition that will not clear by replacing the fuse.
WARNING: Only qualified electrical personnel familiar with
the construction and operation of this equipment and the
hazards involved should install, adjust, operate, or service this
equipment. Read and understand this manual and other
applicable manuals in their entirety before proceeding.
Failure to observe this precaution could result in severe bodily
injury or loss of life.
Email: techsppt@heapg.com,
Fax: +1 317 916 4274
Tel: +1 317 916 4297
Website :
Page 1 of 2
content unless specifically authorized.
All applicable codes and standards need to be followed in
the installation of this product.
Adhere to the following safety precautions whenever any
type of connection is made to the module:
Connect the safety (earth) ground on the power
connector first before making any other connections.
When connecting to electric circuits or pulse-initiating
equipment, open their related breakers.
Do not make connections to live power lines.
Make connections to the module first; then connect to
the circuit to be monitored.
Route power wires in a safe manner in accordance with
good practice and local codes.
Wear proper personal protective equipment including
safety glasses and insulated gloves when making
connections to power circuits.
Ensure hands, shoes, and floor are dry before making
any connection to a power line.
Make sure the unit is turned OFF before making
connection to terminals.
Make sure all circuits are de-energized before making
connections.
Before each use, inspect all cables for breaks or cracks
in the insulation. Replace immediately if defective.
USA
http://www.heapg.com
MAN0829-01-EN
Warning: Electrical
Shock Hazard.
Warning: Consult
user documentation.
