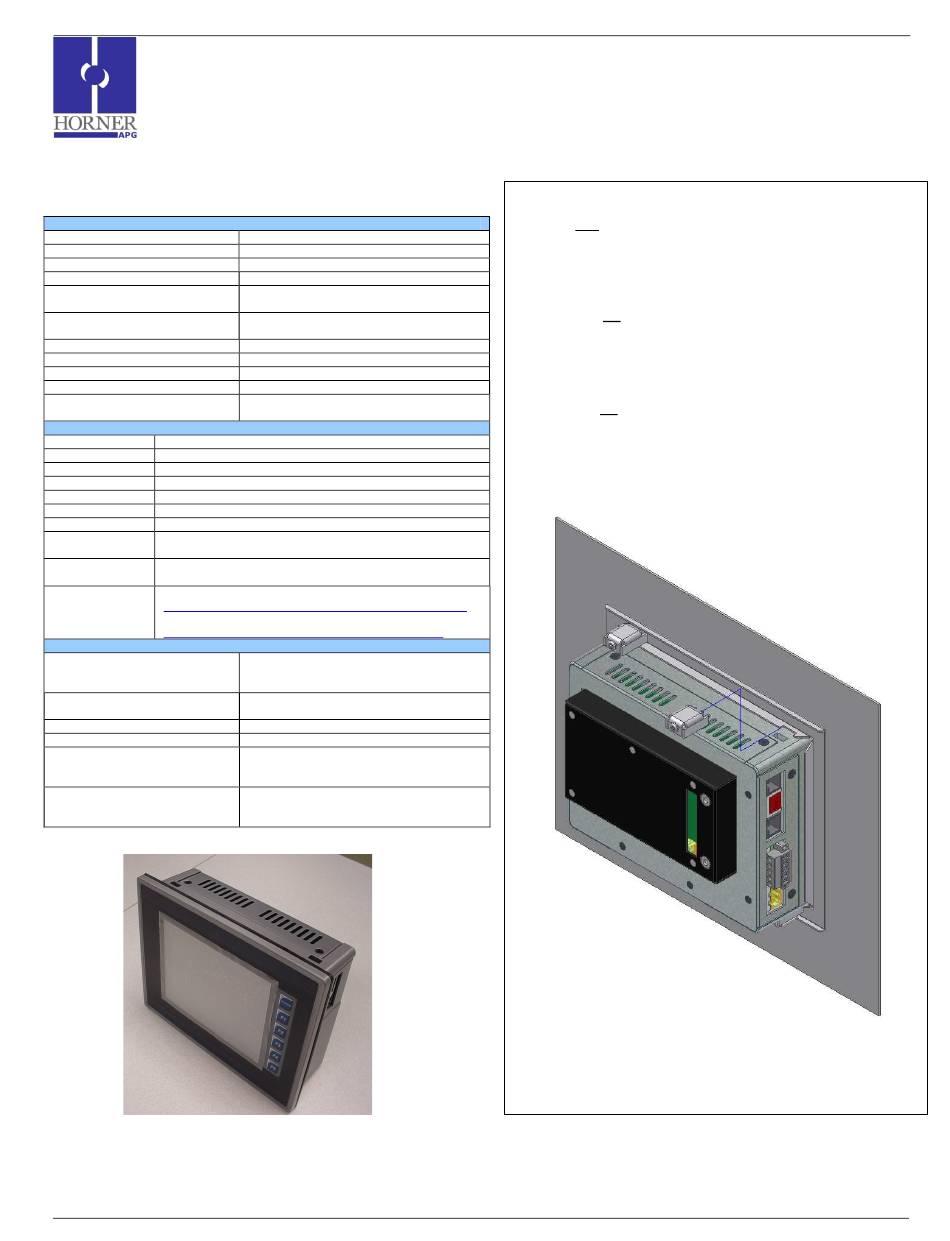

HORNER APG RX371 Series Specifications & Installation

MAN0925-01-EN
1. Specifications
Table 1 - RX371 Specifications
Display Type (LCD with Backlight)
Display Size
Display Screen Dimensions
Display Memory
Display Life
User Keys
Screens supported
Colors
Primary power
Steady state current
Inrush current
Product Descriptions
Height
Width
Depth
Serial Ports RS232 & RS485. Software Selectable
Terminal Type
Weight
Portable Memory
Temperature &
–30°C to +60°C & 5 to 95% Non-condensing
Humidity
Clock Accuracy
CE USA:
UL http://www.heapg.com/Pages/TechSupport/ProductCert.html
EUROPE:
http://www.horner-apg.com/en/support/certification.aspx
Smart Stack Modules
SmartStix Modules
Serial Ports
Ethernet
USB
Removable Media
RX371
________________________________________________________________________________________________________________________________________
2/3/2010
HE-RX371 / HERX371C101
5.7" QVGA TFT
5.7"
320 x 240
2.75MB
Minimum 40000 hours (50% brightness, 25
deg C)
5 user-defined Function keys and a System
key
1023
32768
10 – 30 VDC
0.8A @ 24 VDC, 2A @ 10 VDC
30 A for 1 ms @ 24 VDC – DC Switched
2.5 A for 4 ms @ 24 VDC - AC Switched
5.964" (151.49mm)
7.682" (195.12mm)
2.425" (61.60mm)
Screw Type, 5mm removable
54 oz (1.53kg)
Micro SD card slot
+/- 35 ppm maximum at 25° C
(+/- 1.53 Minutes per Month)
Connectivity
Provides a wide variety of I/O options for the
QX. Requires little space and are easy to
install.
It is a family of remote I/O products for the
QX.
2 Serial Ports – RS232 & RS485
Ethernet (10/100 Mbps)
USB networking port for communication with
PC's, programming of controller, flash drive
connectivity
Removable Media for up to 2 GB (gigabytes)
of storage of programs, data logging or screen
captures
RX371 Models:
2. Installation
1. Prior to mounting, observe requirements for the panel layout design
and spacing/clearances in the OCS RX371 Manual (MAN0924).
2. Cut the host panel.
3. Insert the OCS through the panel cutout (from the front). The
gasket material needs to be between the host panel and the OCS
Caution: Do not force the OCS into the panel cutout. An incorrectly
sized panel cutout can damage the touch screen
4. Install and tighten the mounting clips (provided with the OCS) until
the gasket material forms a tight seal.
Caution: Do not over-tighten. Over-tightening damages the case
5. Connect cables as needed such as communications, programming,
power and CsCAN cables to the ports using the provided
connectors.
6. Begin configuration procedures.
Page 1 of 5
Specifications / Installation
.
# 1018
