Philips HDD1420/00 Service Manual

Philips HDD1420/00 Service Manual

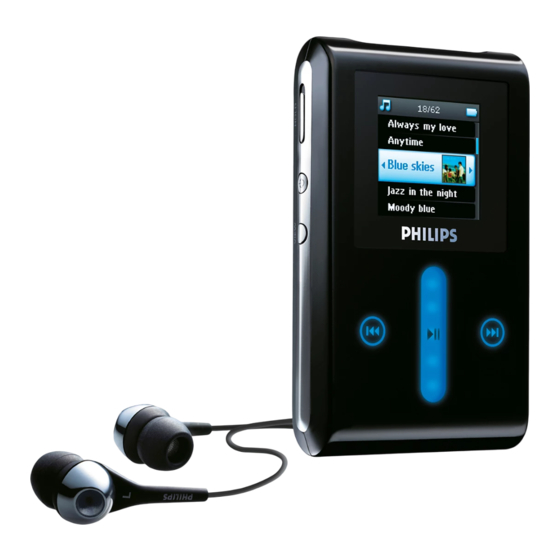

Micro audio jukebox
Hide thumbs Also See for HDD1420/00:
Table of Contents

Advertisement

Quick Links

Download this manual
Micro Audio Jukebox
Service Manual

TABLE OF CONTENTS

Safety Instructions......................................................2
Instructions for Use.................................................... 3
Mechanical Instructions.............................................. 4
Exploded view and Service parts list............................. 5
Troubleshooting flow.................................................. 6
Overall Block diagram................................................. 7
Overall Electrical diagram........................................... 8
Revision list............................................................... 9
©Copyright 2005 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may by reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronics,
mechanical, photocopying, or otherwise without the prior permission of Philips
Version 1.1
HDD1420
HDD1620
/00
HDD1630/HDD1635
/00/05
Chapter
/17
All version
3141 785 30701

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDD1420/00 and is the answer not in the manual?

Questions and answers

Related Manuals for Philips HDD1420/00

Summary of Contents for Philips HDD1420/00

  • Page 1: Table Of Contents

    All rights reserved. No part of this publication may by reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronics, mechanical, photocopying, or otherwise without the prior permission of Philips 3141 785 30701 Version 1.1...

  • Page 2: Technical Specification And Service Hints

    3.6 – 3.7V to the power supply with the AC/DC adapter. 3-step to 2-step voltage 3.53 – 3.6V Make sure all other applications such as Philips Device 2-step to 1-step voltage 3.48 – 3.53V plug-in, Windows Media Player or Windows Explorer Force Power Off voltage <3.5V...
  • Page 3 Once the installation is complete, connect the GoGear to the power supply with the AC/DC adapter. Make sure all other applications such as Philips Device plug-in, Windows Media Player or Windows Explorer that accessing the device are closed or else Device Manager will not recognize the device.
  • Page 4 Volume + and the power on/off slider switch until the display turns off. While the device restart, press and hold the volume – key until the Philips splash screen disappear and showing the connection icon to put the device in USB Mass Storage Device mode.
  • Page 5 1.0 TECHNICAL SPECIFICATION and SERVICE HINTS IMPORTANT: All music & content of your micro jukebox will be erased once the device is formatted. Unzip and copy all the content of the shipment ui files of the corresponding model version into the root directory of the device.

  • Page 6: Class 1 Laser Product

    2.0 SAFTETY INSTRUCTIONS WAARSCHUWING WARNING Alle IC’s en vele andere halfgeleiders zijn All ICs and many other semi-conductors are gevoelig voor electrostatische ontladingen susceptible to electrostatic discharges (ESD). (ESD). Careless handling during repair can reduce life Onzorgvuldig behandelen tijdens reparatie kan drastically.

  • Page 7: Instructions For Use

    3.0 INSTRUCTION FOR USE Power Connector...

  • Page 8: Mechanical Instructions

    4.0 MECHANICAL INTRUCTIONS Set Disassembly 1. Remove the cosmetic screw on the back cover by Allen Key. 2. Finger inset the gap of the top cover assy and the housing, and then carefully lift up the top cover. 3. Generally remove the housing. 4.
  • Page 9 4.0 MECHANICAL INTRUCTIONS 5. Carefully pull out the mainboard assy, which include the HDD drive, LCD, battery and PCBA board. 6. Disconnect the flex cable from the front touch screen module carefully, then free the top cover assy. 7. Lift up the double side tape of the side buttons. 8.
  • Page 10 4.0 MECHANICAL INTRUCTIONS 9. Open up the metal shielding and disconnect the cable connected to the battery. Carefully disassemble the mini mic as circled in the picture from the plastic audio jack holder. 10. Remove the battery part form PCBA. 11.

  • Page 11: Exploded View And Service Parts List

    AUDIO JACK HOLDER ASSY 994000003556 SHIELDING PHOENIX 994000003572 CRADLE HOLDER PHOENIX 994000003558 SCREW 1.7X5 PHOENIX 994000003557 BATTERY PACK PHOENIX 282206200084 HDD 4GB (HDD1420/00) 282206200079 HDD 6GB (HDD1620/00/05, HDD1630/17 & HDD1635/17) 994000003563 HDD DAMPER PHOENIX 994000003564 HDD HOLDER PHOENIX 994000003568 HD FPC PHOENIX...
  • Page 12 AUDIO JACK HOLDER ASSY 994000003556 SHIELDING PHOENIX 994000003572 CRADLE HOLDER PHOENIX 994000003558 SCREW 1.7X5 PHOENIX 994000003557 BATTERY PACK PHOENIX 282206200084 HDD 4GB (HDD1420/00) 282206200079 HDD 6GB (HDD1620/00/05, HDD1630/17 & HDD1635/17) 994000003563 HDD DAMPER PHOENIX 994000003564 HDD HOLDER PHOENIX 994000003568 HD FPC PHOENIX...

  • Page 13: Troubleshooting Flow

    6.0 TROUBLESHOOTING FLOW SYMPTOM 1: NO POWER...
  • Page 14 6.0 TROUBLESHOOTING FLOW SYMPTOM 2: JUKEBOX FREEZES / HANGS UP Open up the unit, unplug battery connector and reconnect again...
  • Page 15 6.0 TROUBLESHOOTING FLOW SYMPTOM 3: ERROR MESSAGE SCROLLS ON THE DISPLAY...
  • Page 16 6.0 TROUBLESHOOTING FLOW SYMPTOM 4: NO SOUND...

  • Page 17: Overall Block Diagram

    7.0 Overall Block Diagram EIDE Control U505 1 " HDD Data Bus Audio Codec J501 WM8731L Earphone Jack LCD Power 2.8V U510 1.5 " CSTN LCD Backlight x3 LED U502 Line Out PortalPlayer TEA5767HN PP5022 KeyPad (TouchPad + 2 Function Key) Remote Control Video Out U509...
  • Page 18 +1.2V R583 R583 +1.2V 100K 100K +3.3V +1.2V_AVDD R541 R541 0402 0402 +1.2V Place Close Each Power Pin +1.2V_USB_VDDP 0402 0402 I2S_SDIN 0402 0402 C562 C562 R568 R568 C566 C566 0.1U 0.1U C558 C558 C559 C559 100K 100K 0805 0805 0402 0402 0.1U...
  • Page 19 Only For PP5022 Ver.B CKE reset issue Can be eliminate XM2_MD[0..15] VCC_MEM U512 U512 XM2_MA[1..15] RESET# XM2_CKE R578 R578 C567 C567 100K 100K SN74AUC1G126 SN74AUC1G126 0.1U 0.1U 0402 0402 SC70_5 SC70_5 Power Supply Voltage:1.65V~1.95V RAM TYPE/WIDTH (UPPER 2 BITS ARE FIRMWARE SELECT) VCC_MEM 0402 0402...
  • Page 20 dI=Vo*(1-Vo/Vi)/(L*f) Imax=Iomax+(dI/2) 4/14 HD Power IC change from XC6366 to TPS62040 奇力新 SCDS3D16T-3R3T-B +3.3VP +3.3V 沛波 SPC-04702-6R8-GP (4.7*4.7*2) REGS_PWR IN_+3.3VP +3.3V_HDD1P +3.3V_HDD REGS_PWR IN_+3.3V_HDD1P 6.8UH 6.8UH SHORT-SMT3 SHORT-SMT3 SHORT-SMT3 SHORT-SMT3 3.3UH 3.3UH SPC-04702 SPC-04702 SHORT-SMT3 SHORT-SMT3 JO503 JO503 100K 100K 0402 0402 VIN_0...
  • Page 21 +1.8V 120Z/100M/NA 120Z/100M/NA 0402 0402 No AGND=>Check +3.3V 0402 0402 L517 L517 120Z/100M 120Z/100M U507 U507 120Z/100M 120Z/100M L515 L515 120Z/100M 120Z/100M +3.3V AUDIO_LDO_IN AUDIO_LDO_OUT C554 C554 HPVDD DBVDD C546 C546 VOUT 0402 0402 C544 C544 C541 C541 0402 0402 R540 R540 0.1U...
  • Page 22 Cradle POWER SWITCH +3.3V 0402 0402 Ext_ANT Ext_ANT OC_CRL_PWR# 0.1U 0.1U 0402 0402 0402 0402 +80-20% +80-20% U513 U513 SPARKGAP_6 SPARKGAP_6 +3.3V OC#_R Power_Out_C FLAG R589 R589 AT3_HD[0:15] Cradle_Power_Out_R Cradle_Power_Out 1" HDD FPC Connector C552 C552 FPF2006 FPF2006 0/NA 0/NA 0.1U 0.1U SC70_5...
  • Page 23 GND 0402 0402 0402 0402 0402 0402 R597 R597 R596 R596 9360-304-XXXX 9360-304-XXXX BKLT_PWM_RC S/W request to Control enable LCD output PHILIPS PHILIPS BKLT_PWM FPC/FFC-1MM-2P/NA FPC/FFC-1MM-2P/NA LED1 LED2 Using on PA020 6.81K 6.81K 63.4K 63.4K 0402 0402 0.1U 0.1U...

  • Page 24: Revision List

    9.0 REVISION LIST Version 1.0 (3141 785 30700) • Initial release HDD1420/HDD1620/HDD1630/DD1635 Version 1.1 (3141 785 30701) Chapter 5 – Service part list revised service 12NC as listed below • Added the new part cradle assy for HDD1635/17 (994000003791)

This manual is also suitable for:

Hdd1620/00Hdd1620/05Hd1630Hd1635/17
