Instructions for Installation and Operation

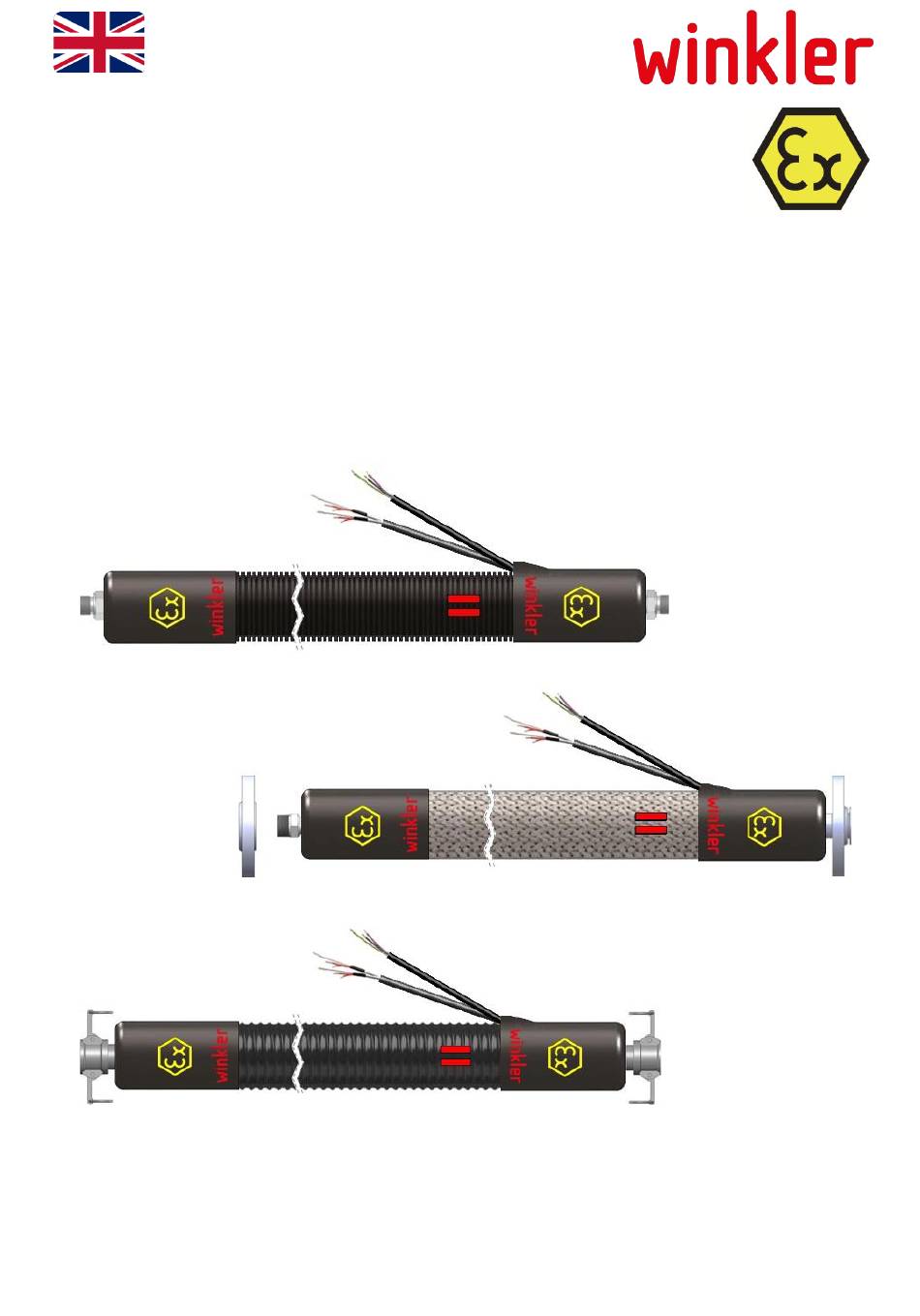

ATEX heated hoses series
Instructions for
Installation and Operation
ATEX heated hoses
series
WEX7...
(fixed resistance heating cable)
WEX7G...
Winkler AG ▪ Englerstrasse 24 ▪ 69126 Heidelberg ▪ Germany ▪ Phone: +49 6221 3646 0 ▪ sales@winkler.org ▪ www.winkler.org
WEX7...
1 of 16
WEX7P...
WEX7W...
Issue 03/2025
