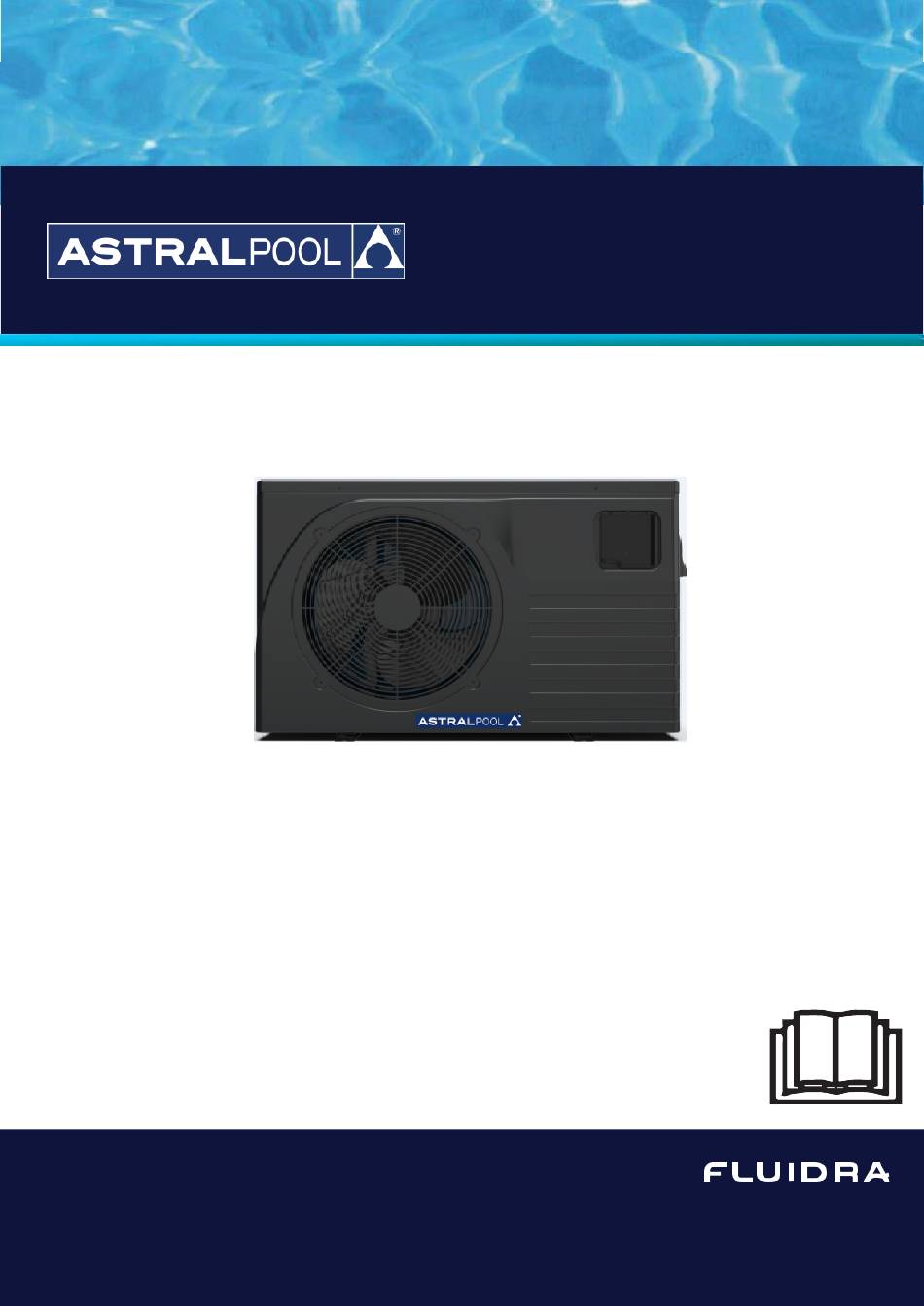

Page 1 INSTALLATION AND OPERATING INSTRUCTIONS INSTALLATION AND OPERATING INSTRUCTIONS Eco Range Inverter Heat Pumps ECO RANGE INVERTER HEAT PUMPS Installation & Instruction manual...
Page 3: Table Of Contents
CONTENTS 1. Preface Specifications 2.1 Performance Data of Swimming Pool Heat Pump Unit 2.2 Dimensions for Swimming Pool Heat Pump Unit Installation and Connection Installation illustration Swimming Pool Heat Pumps Location 3.3 How Close to Your Pool? 3.4 Swimming Pool Heat Pumps Plumbing 3.5 Swimming Pool Heat Pumps Electrical Wiring 3.6 Initial Start-up of the Unit Use and Operation Instruction...
Page 4: Preface
1. PREFACE In order to provide our customers with quality, reliability and versatility, this product has been made to strict production standards. This manual includes all the necessary information about installation, debugging, discharging and maintenance. Please read this manual carefully before you open or maintain the unit. The manufacture of this product will not be held responsible if someone is injured or the unit is damaged, as a result of improper installation, debugging, or unnecessary maintenance.
Page 5 1. PREFACE This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack experience knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Page 6 1. PREFACE Caution & Warning 1. The unit can only be repaired by qualified installer centre personnel or an authorised dealer. for Europe market 2. This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Page 7: Specifications
2.SPECIFICATION 2.1 Performance data of Swimming Pool Heat Pump Unit *** REFRIGERANT : R32 UNIT 78566 78567 Heating capacity 1.4-6.8 1.9-8.0 (27/24.3 Btu/h 4760-23120 6460-27200 Heating Power Input 0.14-1.51 0.19-1.82 10.0-4.5 10.00-4.4 Heating capacity 1.1-5.2 1.4-6.3 (15/12 Btu/h 3740-17680 4760-21420 Heating Power Input 0.21-1.24 0.28-1.5...
Page 8 2.SPECIFICATION 2.1 Performance data of Swimming Pool Heat Pump Unit *** REFRIGERANT : R32 UNIT 78568 78596 Heating capacity 2.4-10.9 3.50-18.15 (27/24.3 Btu/h 8160-37060 11900-61710 Heating Power Input 0.24-2.37 0.25-2.84 10.0-4.6 14.2-6.4 Heating capacity 1.6-8.4 2.55-13.8 (15/12 Btu/h 5440-28560 8670-46920 Heating Power Input 0.31-1.95 0.36-2.69...
Page 9: Dimensions For Swimming Pool Heat Pump Unit
2.SPECIFICATION 2.2 The dimensions for Swimming Pool Heat Pump Unit UNIT: 78566/78567/78568 unit mm 1000 Water outlet 48.3 Water inlet 48.3 Model:78596 unit：mm 1161 Water outlet Φ48.3 Water inlet Φ48.3...
Page 10: Installation And Connection
3.INSTALLATION AND CONNECTION 3.1 Installation illustration Installation items: The factory only provides the main unit and the water unit; the other items in the illustration are necessary spare parts for the water system ,that provided by users or the installer. Attention: Please follow these steps when using for the ﬁrst time 1.Open valve and charge water.
Page 11: Swimming Pool Heat Pumps Location
3. INSTALLATION AND CONNECTION 3.2 Swimming Pool Heat Pumps Location The unit will perform well in any outdoor location provided that the following three factors are presented: 1. Fresh Air - 2. Electricity - 3. Pool filter piping The unit may be installed virtually anywhere outdoors. For indoor pools please consult the supplier. Unlike a gas heater, it has no draft or pilot light problem in a windy area.
Page 12: Swimming Pool Heat Pumps Plumbing
3.INSTALLATION AND CONNECTION 3.4 Swimming Pool Heat Pumps Plumbing The Swimming Pool Heat Pumps exclusive rated ﬂow tanium heat exchanger requires no special plumbing arrangements except bypass(please set the ﬂow rate according to the nameplate). The water pressure drop is less than 10kPa at max. Flow rate. Since ther e is no residual heat or ﬂame Temperatures, The unit does not need copper heat sink piping.
Page 13: Swimming Pool Heat Pumps Electrical Wiring
3.INSTALLATION AND CONNECTION 3.5 Swimming Pool Heat Pumps Electrical Wiring NOTE: Although the unit heat exchanger is electrically isolated from the rest of the unit, it simply prevents the flow of electricity to or from the pool water. Grounding the unit is still required to protect you against short circuits inside the unit.
Page 14: Use And Operation Instruction
Use and Operation Instruction 4.1. Interface display 4.2. Key and icon function instruction 4.2.1 Key function instruction Key symbols Function Designation Under the heating mode or heating mode under the automatic mode, the mute key operation is effective and Mute key used to enter and exit the mute mode with one click.
Page 15 4.Use and Operation Instruction 4.2.2 Icon function instruction Function Icon symbol Designation It will display during cooling (there is no limit to startup & shutdown, and it is optional when the unit is cooling-only Cooling symbol unit or heating-and-cooling unit). It will display during heating (there is no limit to startup &...
Page 16: Startup & Shutdown
4.Use and Operation Instruction 4.3. Startup & shutdown Keep long press of " "for 0.5 s to enter ON/OFF interface When there is no operation within 1 minute, it will display with half screen off When there is no operation within 15 minutes, it will display with full screen off Notes:...
Page 17: Temperature Setting
Use and Operation Instruction Short press" " for to switch the mode circularly, after no operation for 2s, the current mode will be saved. Cooling mode Heating mode Automatic mode Operation descriptions: 1). Mode switch operation can only be conducted in the main interface. 2).
Page 18: Clock Setting
4.Use and Operation Instruction Notes: Under the temperature setting interface, if short press " ", the system will return to the main interface without any changes saved; If there is no operation for 5 s, the system will automatically memorize users setting, and return to the main interface. 4.6.
Page 19 4.Use and Operation Instruction 4.6.2 Setting and cancellation of timing ON and OFF Short press" " or " " to circularly display among Short press " " timing ON1, OFF1, ON2 andOFF2 Flashing Flashing Short press " " for setting hour digit of timing ON1 Short press "...
Page 20: Mute Setting
4.Use and Operation Instruction 4.7. Mute setting 4.7.1 One-click mute short press " " Flashing Notes: 1). If one-click mute and timing mute are stared at the same time, short press " " for canceling one-click mute and quitting the timing mute for this time. 2).
Page 21: Keyboard Lock
4.Use and Operation Instruction Notes: 1). When the mute icon" " is lighten:The timing mute has been set, but it's not under mute status. 2). When the mute icon" " flash:It's under the mute status. 3). When the mute icon" "disappear: The timing mute is not set.
Page 22: Parameter List And Breakdown Table
4.Use and Operation Instruction 4.10 . Parameter list and breakdown table 4.10.1 Electronic control fault table Can be judged according to the remote controller failure code and troubleshooting Fault Protect/fault Reason Elimination methods display The temp. sensor is broken or short Inlet Temp.
Page 23 4.Use and Operation Instruction 1. Motor is in locked-rotor state 1.Change a new fan motor 2.The wire connection between 2.Check the wire connection and make sure Fan Motor 2 Fault F032 DC-fan motor module and fan they are in good contact motor is in bad contact Frequency conversion board fault table: Fault...
Page 24: Interface Drawing
4.Use and Operation Instruction 4.10.2 Parameter list Meaning Default Remarks Adjustable 27℃ Refrigeration target temperature set point Adjustable 27℃ Heating the target temperature set point 27℃ Adjustable Automatic target temperature set point 4.11. Interface drawing 4.11.1 Wire control interface diagram and definition Sign Meaning 12V（power +）...
Page 25 Use and Operation Instruction 4.11.2 Controller interface diagram and definition CN66 CN18 CN13 CN11 IT SUT CT +12V 1 2 1 CN30 RS485-2 RS485 MODE CN97 CN99(PS) CN15(EEV) REMOTE P1(ACL) CN42 1 2 3 1 2 3 4 5 6 P10-1(U) 5V IN GND A B C D...
Page 26 4.Use and Operation Instruction Main board of the input and output interface instructions below N umber Sign Meaning P10-1/2/3(U/V/W) Compressor P13(L) Resistance P14(L) Resistance CN97 motor RS485-2 The port for centralized control RS485 Color line controller communication/WIFI Water output temperature System exhaust temperature Water input temperature System suction temperature...
Page 27: Maintenance And Inspection
5. MAINTENANCE AND INSPECTION Check the water s upply devic e and the release often. You should av oi d the condition of no water or air entering into sy stem, as this will i nfluence unit's perf or manc e and reliabil it y. You should clear the pool/ spa fi lter regularl y to av oid damage to the un it as a result of the dirty of c logged f ilter.
Page 28 5. MAINTENANCE AND INSPECTION No ignition sources No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space.
Page 29 5. MAINTENANCE AND INSPECTION Repairs to sealed components 1) During repairs to s ealed c omponents , all elec tri cal supplies shall be di sc onnec ted f rom the equipment being work ed upon pr ior to any removal of sealed covers , etc. If it is abs olutel y necess ary to hav e an electric al supply to equi pm ent during s ervi cing, then a permanently operating form of leak detec ti on s hal l be loc ated at the m os t c rit ical point to warn of a potentially haz ardous situation.
Page 30 5. MAINTENANCE AND INSPECTION Removal and evacuation When breaking into the refrigerant circuit to make repairs or for any other purpose conventional procedures shall be used. However, it is important that best practice is followed since flammability is a consideration. The following procedure shall be adhered to: .
Page 31 5. MAINTENANCE AND INSPECTION Decommissioning Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant.
Page 32: Appendix
6.APPENDIX 6.1 Cable specification (1) Single phase unit Nameplate Creepage protector Signal line maximum Phase line Earth line current No more 2 1.5mm 1.5mm 30mA less than 0.1 sec than 10A 2 2.5mm 2.5mm 30mA less than 0.1 sec 10~16A 16 ~25A 2 4mm 30mA less than 0.1 sec...
Page 33: Comparison Table Of Refrigerant Saturation Temperature
6.APPENDIX 6.2 Comparison table of refrigerant saturation temperature Pressure (MPa ) Temperature -51.3 (R410A)( ) Temperature -52.5 29.5 33.3 38.7 (R32)( ) Pressure (MPa ) Temperature (R410A)( ) Temperature 46.5 49.5 53.5 67.5 72.5 77.4 (R32)( )
Page 34 Note:...
Page 36 Code:83900024...
