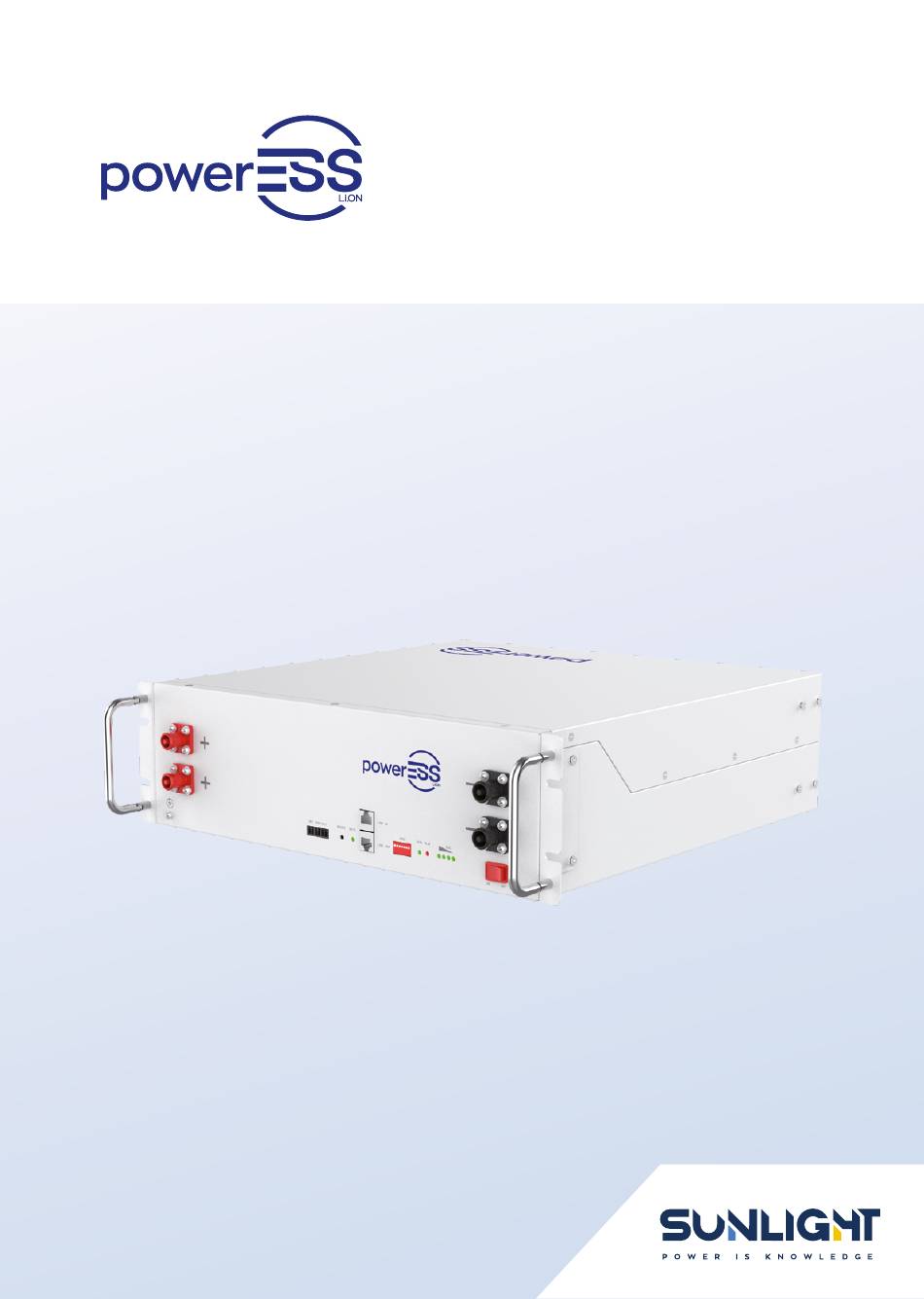

  • Page 1 Li.ON 51.2V-100Ah Battery Operation and Maintenance Manual...

  • Page 2: Legal Provisions

    Manual QR code Legal Terms Sunlight Group will retain the copyright of this document, do not extract, copy or translate in any ways without the written permission.

  • Page 3: Table Of Contents

    Operation and Maintenance Manual | powerESS Li.ON 51.2V-100Ah Table of Contents Legal Provisions Information Target Group Levels of Warning Messages Symbol Description Abbreviation Description Safety Safety Precautions Safety Instructions Product Overview Introduction Features Specification Protection Function Installation Preparation Inspection Start Installation...

  • Page 4: Information

    Li.ON 51.2V-100Ah | Operation and Maintenance Manual 1. Information 1.1 Validity This document is valid for the powerESS Li.ON 51.2V-100Ah. 1.2 Target Group 1.4 Symbol Description This document is intended for qualified persons 1.4.1 Symbols on Products Label and operators. Only qualified persons are...

  • Page 5: Abbreviation Description

    Operation and Maintenance Manual | powerESS Li.ON 51.2V-100Ah 1.5 Abbreviation Description Abbreviation Definition Battery/battery pack/ Single powerESS Li.ON rechargeable lithium iron phosphate battery pack including battery module cells, BMS and enclosure etc. Multiple powerESS Li.ON battery pack connected in parallel with power, Battery system/cluster communication and grounding cables and installation auxiliaries.

  • Page 6: Safety Instructions

    Li.ON 51.2V-100Ah | Operation and Maintenance Manual 2.2 Safety Instructions WARNING The battery has been designed and tested in In case of fire situations, please use carbon accordance with international (such as UL, IEC, dioxide fire extinguisher rather than liquid to UN38.3 etc.) safety requirements.

  • Page 7: Product Overview

    Operation and Maintenance Manual | powerESS Li.ON 51.2V-100Ah 3. Product Overview 3.1 Introduction CAUTION The powerESS Li.ON battery is a 51.2V lithium This electrical connection in this diagram is battery system, with BMS inside. It could be only for illustration, please follow the Manual...

  • Page 8: Features

    Li.ON 51.2V-100Ah | Operation and Maintenance Manual 3.2 Features • Built in BMS provides warning and protection • Highest safety, battery is made from LiFePO4 functions including over-discharged, over- chemistry and comply with highest international charged, overcurrent, short-circuit and high/low safety and transport standards.
  • Page 9 Operation and Maintenance Manual | powerESS Li.ON 51.2V-100Ah 3.3.2 Parameters Items powerESS Li.ON Rated voltage 51.2V Max. voltage range 44.8~57.6V, Shipping voltage>51.2V Charge voltage 56.0V Float charge voltage 54.6V Nominal energy@0.2C 5.12KWh Usable energy@0.2C 4.92kWh Nominal capacity@0.2C 100Ah Dimension 482*133.5*460mm (18.9*5.2*18.1 inch)
  • Page 10 Li.ON 51.2V-100Ah | Operation and Maintenance Manual Νο. Items Usage description Remark For handling, installation and disassembly of Handles battery Grounding Used to connect battery with ground Positive terminal Used to connect the inverter/charger 1 channel input signal Dry contact...
  • Page 11 Operation and Maintenance Manual | powerESS Li.ON 51.2V-100Ah 3.3.3.2 G: Link IN / Link OUT Port Pin No. Definition Remarks RS485-B1 RS485-A1 1.Used to connect with SGND external devices to establish CAN-H Link IN communication. CAN-L 2.Used to connect with upper...
  • Page 12 Li.ON 51.2V-100Ah | Operation and Maintenance Manual Protocol DIP setting CANbus Connection RS485 Connection (Master battery) Voltronic/MPP/Alpha outback/ Victron/SMA/Studer Innotec/Sofar Phocos/Kodak X000000 Sol-Ark/Solis/Goodwe/Deye/ Growatt/SAJ/LUXPOWER Megarevo/INVT/Sermatec/ TBB/MUST/Sunsynk X000010 Schneider X000001 NOTICE Fail to follow the DIP switch setting will cause the communication fault between battery and inverter, for more detail setting with different inverter/charger, please contact your supplier for consultation.

  • Page 13: Protection Function

    Operation and Maintenance Manual | powerESS Li.ON 51.2V-100Ah 3.3.3.4 RUN/ALM/SOC FLASH Type NOTE: ‘Warning’ including items of cell FLASH1 0.25S 3.75S imbalanced/low voltage/high current/high & FLASH2 0.5S 0.5S low temperature. FLASH3 0.5S 1.5S 3.4 Protection Function Items Description Remark Charge end...

  • Page 14: Installation

    (reccomended temperature) Relative humidity 5%~90%, No condensation Altitude <3000m • Do not expose the battery to direct sunlight, rain and snow. • Do not place the battery within children/pet touchable area. • Do not place the battery near heat source and flammable material.

  • Page 15: Inspection

    Operation and Maintenance Manual | powerESS Li.ON 51.2V-100Ah 4.1.3 Tools Tools Torque screwdriver Multi-meter Torque wrench Cable crimper Wire stripper Tape measure Flat-head screwdriver Phillips-head screwdriver Wire stripper Drill Phillips-screwdriver bit 4.2 Inspection • Please record and feedback to the 4.2.1 Unpacking...
  • Page 16 Li.ON 51.2V-100Ah | Operation and Maintenance Manual General Materials (Battery unit) Battery Pack *1pcs Optional Materials (Noted that each pack unit must be bought with one mounting kit type as default) Mounted Kits Type Material Detail A: Float nuts M6...
  • Page 17 Operation and Maintenance Manual | powerESS Li.ON 51.2V-100Ah A: Stacking components 4pcs B: Head screw M4 16pcs C: Battery to battery parallel positive cable(250mm) 1pcs D: Battery to battery parallel negetive cable(250mm) 1pcs Stack mounted kits (Packing using separate carton box)
  • Page 18 Li.ON 51.2V-100Ah | Operation and Maintenance Manual 4.2.3 External Cable Kits Cables connected to inverter or junction box belong to an “External Cables kit”, NOT included in battery carton. Customers need to purchase it separately, the information are as below.

  • Page 19: Start Installation

    Operation and Maintenance Manual | powerESS Li.ON 51.2V-100Ah 4.3 Start Installation Qualified person 4.3.1 Remainder 4.3.2.1 Rack Mounted Please check that the equipment and conditions meet the requirements for proper installation i. Take the battery pack out from carton. highlighted below: •...
  • Page 20 Li.ON 51.2V-100Ah | Operation and Maintenance Manual 4.3.2.2 Stack Mounted i. Take the battery pack out from the carton box. ii. Remove the mounting ear from both side of the battery. iii. Install the stacking component at the four corners of the battery.
  • Page 21 Operation and Maintenance Manual | powerESS Li.ON 51.2V-100Ah 4.3.2.4 Floor Mounted i. Take the battery pack out from the carton box. ii. Remove the mounting ear from both side of the battery. iii. Place the base near the wall, align with the wall and make sure the distance is between 10mm and 35mm.

  • Page 22: Cable Connection And Commissioning

    Li.ON 51.2V-100Ah | Operation and Maintenance Manual 4.3.3.2 Other Installation Hang on the wall with Holder Placing on the desk Please make sure the holder can handle a Please make sure the desk can bear the total minimum weight of 50kg weight.

  • Page 23: Communication Cable Connection

    Operation and Maintenance Manual | powerESS Li.ON 51.2V-100Ah 5.3 Communication Cable Connection 5.3.1 Take out battery to battery communication cable. 5.3.2 Confirm the location of Master battery, insert the RJ45 plug into the Link Out port and connect the other side to next battery Link IN port, “daisy chain”...
  • Page 24 Li.ON 51.2V-100Ah | Operation and Maintenance Manual Wiring diagram allowed: i. Single pair cable wiring----100A, 5KW rating Inverter/charger To inverter INPUT+ DC breaker To inverter INPUT- To PE To inverter CAN/RS485 port Inverter/charger To inverter INPUT+ DC breaker To inverter INPUT-...
  • Page 25 Operation and Maintenance Manual | powerESS Li.ON 51.2V-100Ah ii. Double pairs cable wiring----200A, 10KW rating...
  • Page 26 Li.ON 51.2V-100Ah | Operation and Maintenance Manual iii. Multiple pairs cable wiring----400A, 20KW rating iv. Multiple towers and inverters cable wiring...
  • Page 27 Operation and Maintenance Manual | powerESS Li.ON 51.2V-100Ah Wiring diagram not allowed: NOTICE The maximum communication cable length is required to be less than 15m between inverter/ charge and battery. The maximum power cable length is suggested to be less than 10m between inverter/charge and battery.

  • Page 28: Commissioning

    Li.ON 51.2V-100Ah | Operation and Maintenance Manual 5.6 Commissioning 5.6.3 Turn on the breaker between the inverter and 5.6.1 Set the DIP address of the Master battery (and battery if there is any, then turn on the inverter/ the Slave battery if there is any RS485 baud rate charger isolator.

  • Page 29: Troubleshooting And Faq

    Operation and Maintenance Manual | powerESS Li.ON 51.2V-100Ah 6. Troubleshooting and FAQ Inverter setting parameters Details 1. Power on battery and press RESET for 6 seconds to observe whether the battery can be started. Unable to start 2. Charge the battery use a charger or inverter to provide 54~57.6V voltage and observe that it can be started.
  • Page 30 Li.ON 51.2V-100Ah | Operation and Maintenance Manual Q1: Battery maximum SOC is 98~99% and never before it begins to report, this may lead to the goes to 100%SOC during daily cycle use, why? inaccurate display of the current draw.

  • Page 31: Transport, Storage

    Operation and Maintenance Manual | powerESS Li.ON 51.2V-100Ah 7. Transport, Storage • Do not violently shake, impact, or squeeze, flammable and explosive substances, and and prevent sunshine and rain during corrosive chemical substances in the storage transportation. location. • Do take care and strictly prevent falling, rolling, •...

  • Page 32: Connect With Victron Gx & Inverter/Charger Connect With Sma Inverter/Charger

    Li.ON 51.2V-100Ah | Operation and Maintenance Manual Appendix I Connect with SMA inverter/charger Connect with Victron GX & inverter/charger Connect with Schneider inverter/charger Connect with Studer inverter/charger Connect with GOODWE hybrid inverter Connect with Sol-Ark hybrid inverter...

  • Page 33: Connect With Growatt Inverter Connect With Solis Inverter

    Operation and Maintenance Manual | powerESS Li.ON 51.2V-100Ah Connect with Growatt inverter Connect with Solis inverter Connect with Deye hybrid inverter Connect with SUNSYNK hybrid inverter Connect with SAJ hybrid inverter Connect with LUXPOWER inverter...

  • Page 34: Connect With Megarevo/Invt Inverter Connect With Must Inverter

    Li.ON 51.2V-100Ah | Operation and Maintenance Manual Connect with Megarevo/INVT inverter Connect with MUST inverter Connect with Alpha & Outback energy inverter Connect with Voltronic inverter Connect with Phocos inverter Connect with Mpp solar inverter...
  • Page 35 Operation and Maintenance Manual | powerESS Li.ON 51.2V-100Ah...
