Installation, Commissioning and Operating Instructions
for Renewable Energy Storage applications
RES SOPzV 2V cells - Valve Regulated Lead Acid Batteries
Assembly and CE-marking by:
Commissioning by:
Number of cells:

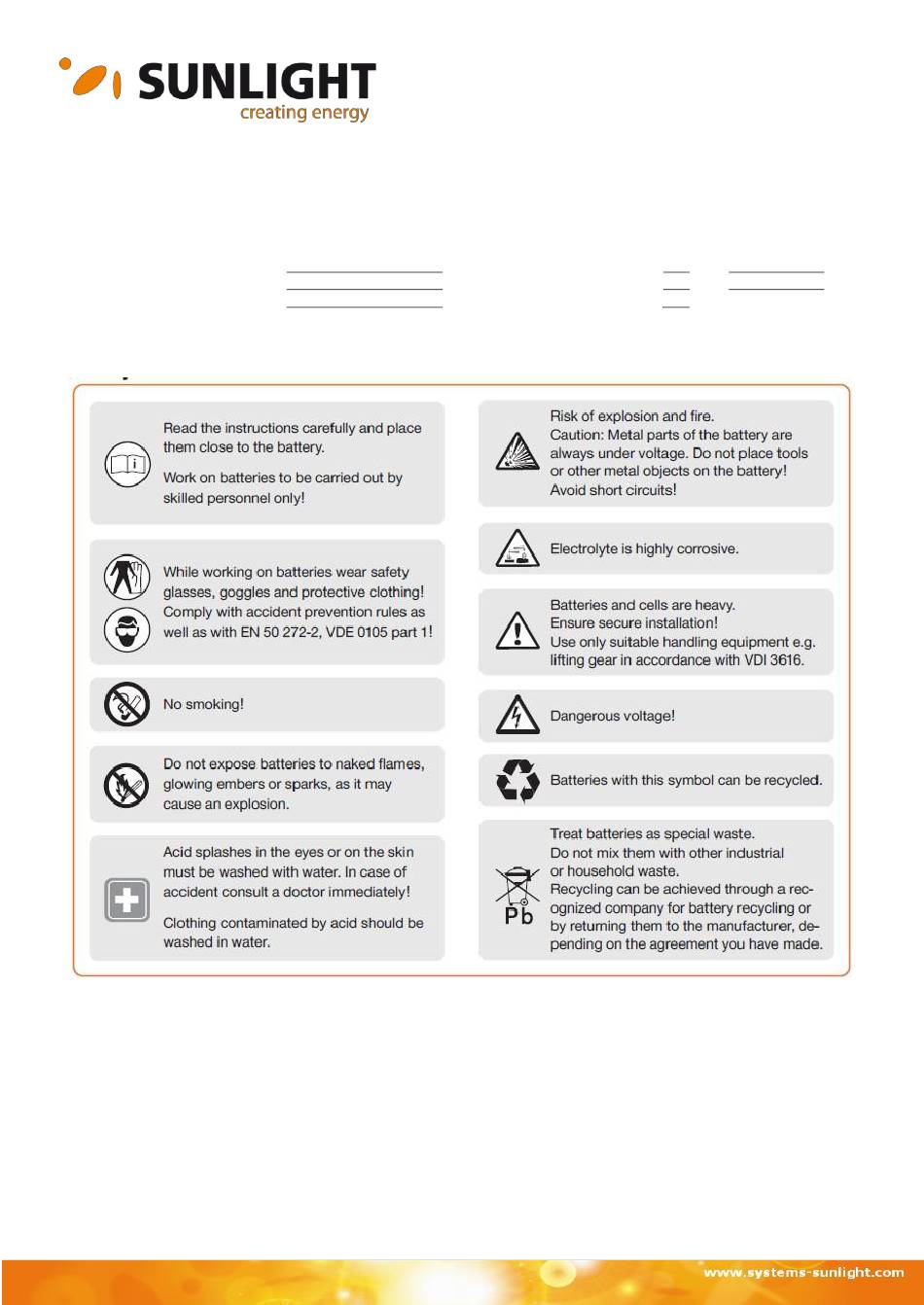

Safety Instructions
Usage of the battery which does not comply with the OPERATING INSTRUCTIONS, repairs carried out with non-
approved spare parts or unauthorized interference with the battery will invalidate any claim for warranty.
SYSTEMS SUNLIGHT S.A.
Headquarters 2 Ermou & Nikis Str, Syntagma Square, 105 63 Athens, Attica, Greece T +30 210 6245400 F +30 210 6245409
Manufacturing Plant Neo Olvio, 672 00 Xanthi, Greece T +30 25410 48100 F +30 25410 95446
Service Department 366 Tatoiou Street, 136 73 Acharnes, Αttica, Greece T +30 210 6245600 F +30 210 6245619
Date:
/
Date:
/
Type:
/
/
Advertisement
Table of Contents
Related Manuals for Sunlight RES SOPzV Series
Summary of Contents for Sunlight RES SOPzV Series
- Page 1 Usage of the battery which does not comply with the OPERATING INSTRUCTIONS, repairs carried out with non- approved spare parts or unauthorized interference with the battery will invalidate any claim for warranty. SYSTEMS SUNLIGHT S.A. Headquarters 2 Ermou & Nikis Str, Syntagma Square, 105 63 Athens, Attica, Greece T +30 210 6245400 F +30 210 6245409 Manufacturing Plant Neo Olvio, 672 00 Xanthi, Greece T +30 25410 48100 F +30 25410 95446 Service Department 366 Tatoiou Street, 136 73 Acharnes, Αttica, Greece T +30 210 6245600 F +30 210 6245619...
- Page 2 Specifically EN 50272-2 applies. The battery should be installed in a clean, dry area. Avoid placing the battery in a warm place or in direct sunlight. The location or arrangement of cells should result in no greater than a 3°C temperature differential between cells within a series-connected string at a given time.
- Page 3 4 parallel strings. If more than 4 strings are required, consult SYSTEMS SUNLIGHT S.A. The resistance of the cables in each string must be the same, e.g. same cross-section, same length. In addition, each string should be equipped with disconnect capabilities for maintenance and safety purposes.
- Page 4 “ RES 6 SOPzV 850” has C10=687Ah therefore a 60% MDDoD means 413 Ah extractable per day. The maximum allowable DoD (MDOD) is 80% of the maximum available capacity, unless otherwise has been approved by Systems Sunlight. Overdischarge Protection The MDOD limit control should not be implemented solely through control systems based on Ah-counters (integrating the ampere-hours into and out of the battery).
- Page 5 3.2. Charging 3.2.1. Full charge The full charge is a prolonged charge at an elevated voltage, performed under the supervision of the user. It lasts until certain full charge criteria are fulfilled but not outside certain minimum and maximum duration limits. It is used mainly ...
- Page 6 ± 0.025V Corrective Equalizing is performed as a Full Charge in paragraph 3.2.1. If the voltages are still out of the limits, Systems Sunlight Customer Service should be called. A service contract with Systems Sunlight S.A. is recommended. 3.2.3. Normal operation charging The following charging voltage settings are optimum values, so the battery is not heavily undercharged or overcharged.
- Page 7 Use the following settings. Temperatures are averaged over one month: For Stand-alone systems: Controller type Setting -20 to 0°C 0 to 15°C 15 to 35°C >35°C Constant Voltage – one 2,37V 2,35V 2,30V 2,27V step absorption Constant Voltage – two 2,40V 2,40V 2,35V...
- Page 8 Faults Should faults be detected in the battery or the charging device, Systems Sunlight Customer Service should be contacted immediately. Measured data simplify fault detection and elimination. A service contract with Systems Sunlight S.A. will detect faults in time. Testing Tests must be conducted according to IEC 60 896 - 21.
