nomad PDU V5.5 Instructions And Warranty

NOMAD PDU V5.5 100ah Ripper! – Instructions and Warranty
STOP! STOP!
You Must Read All Instructions
Please Note:
This is a recreational power distribution unit and not a jump starter.
Do not attempt to jump start any vehicle with the unit as this will void warranty.
The Nomad PDU V5.5 100ah series comes with a 2-year manufacturer's warranty under
normal use and 12 months warranty on the AC/DC Charger.
Battery and BMS are set to provide up 100% DOD – with voltage range LiFePO4 Prismatic from
14.6v to 10v.
Approximately 2000 cycles – dependant on type of use. Cycles are an estimation only and not a
guarantee or part of the warranty.

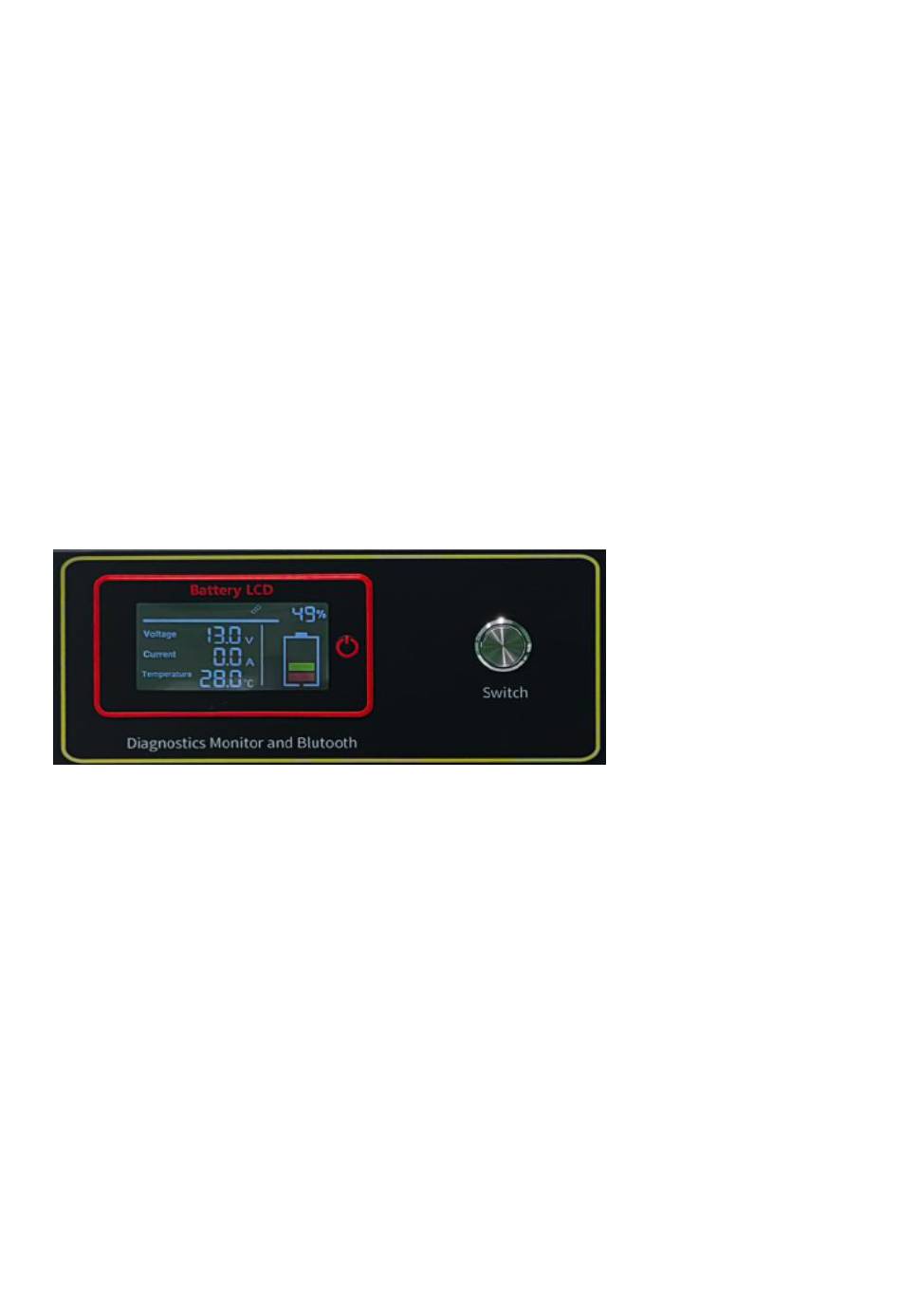

The monitor screen switch (smaller red button) and the unit switch (bigger silver switch) are
operated separately and do not affect each other. That is, when the unit is turned off, the
monitor screen can also be turned on by the monitor screen button.
WARNING!! WARNING!!
The V5.5 series can be charged with up to 50amp regulated charge through Anderson input and
also can be charged with an unregulated solar panel <= 300watt connecting to the Red
Anderson connection which connects to a 20amp MPPT internally.
At any time, the Max charge rate is 50amp, and you must use a suitable charger with LiFePO4
profile. So if you are installing in a vehicle, the DCDC charger must have a Lithium LiFePO4
profile 14.6v.
Do Not use this unit if you do not read the instructions. Failure to follow instructions, adhere to
ratings and loads will void warranty, including ignoring the do not do list below.
To protect the unit and ensure you do not void the warranty, please read the below.
If installing into a vehicle, make sure the unit is well ventilated to avoid excessive heat build-
up or exposure to elements. Only ever charge from the Nomad Inputs Red circled area.
YOU MUST NOT DIRECTLY CONNECT TO ALTERNATOR OR CRANK BATTERY WITHOUT A
SUITABLE DCDC CHARGER, this will damage the unit.
— 1 —
