SPAN F400 Owner's Manual

Foldable/portable patient lift
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
Model: F400
FOLDABLE / PORTABLE PATIENT LIFT

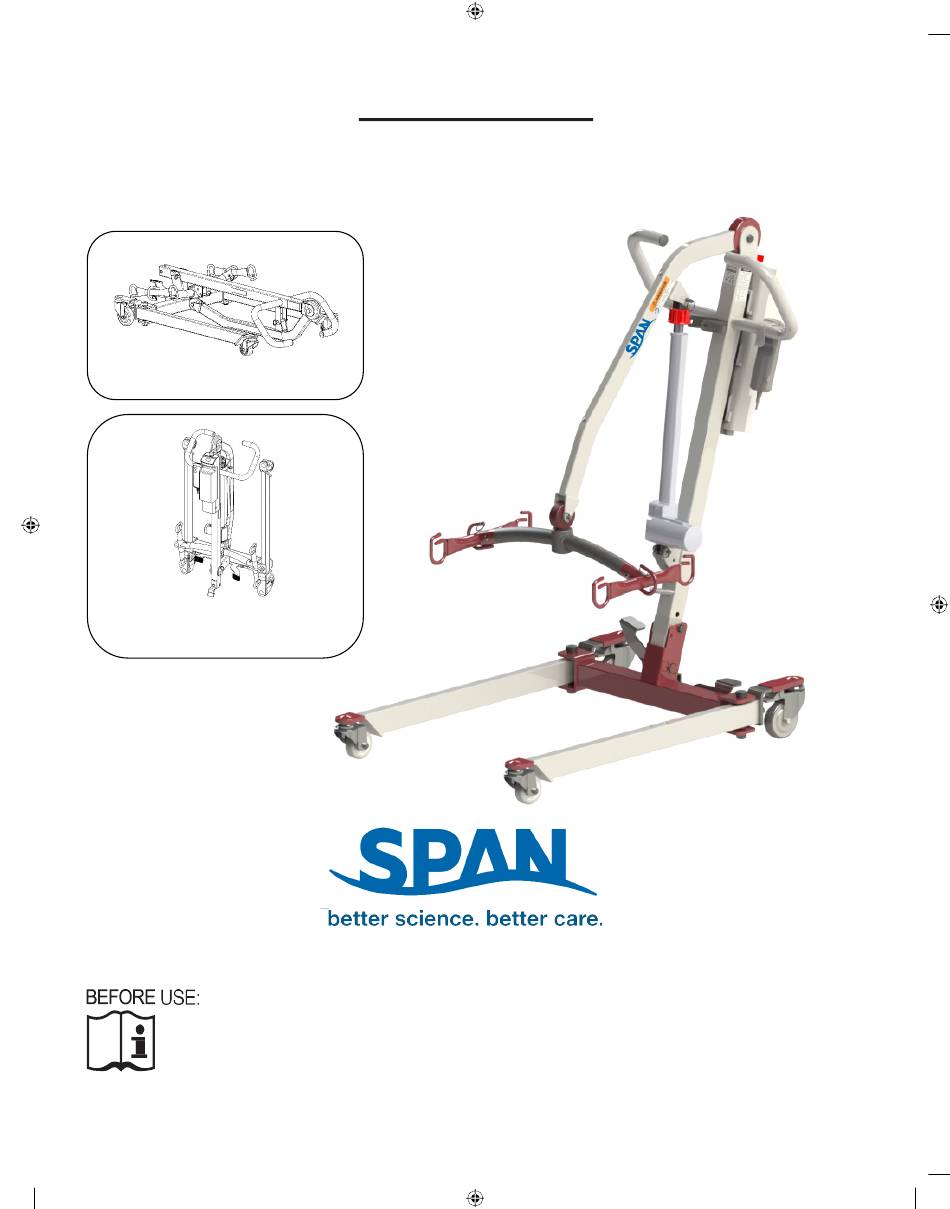

Folding Position #1 - Flat
Folding Position #2 - Standing
Span-America Medical Systems, Inc.
Greenville, SC 29606
(800) 888-6752
Ensure the product has been assembled according to the instructions in this manual.
All operators should read and understand the instructions for safe and proper operation of the
patient lift.
P16792 r1 CO#2604
