Document #2002-XTIPIN

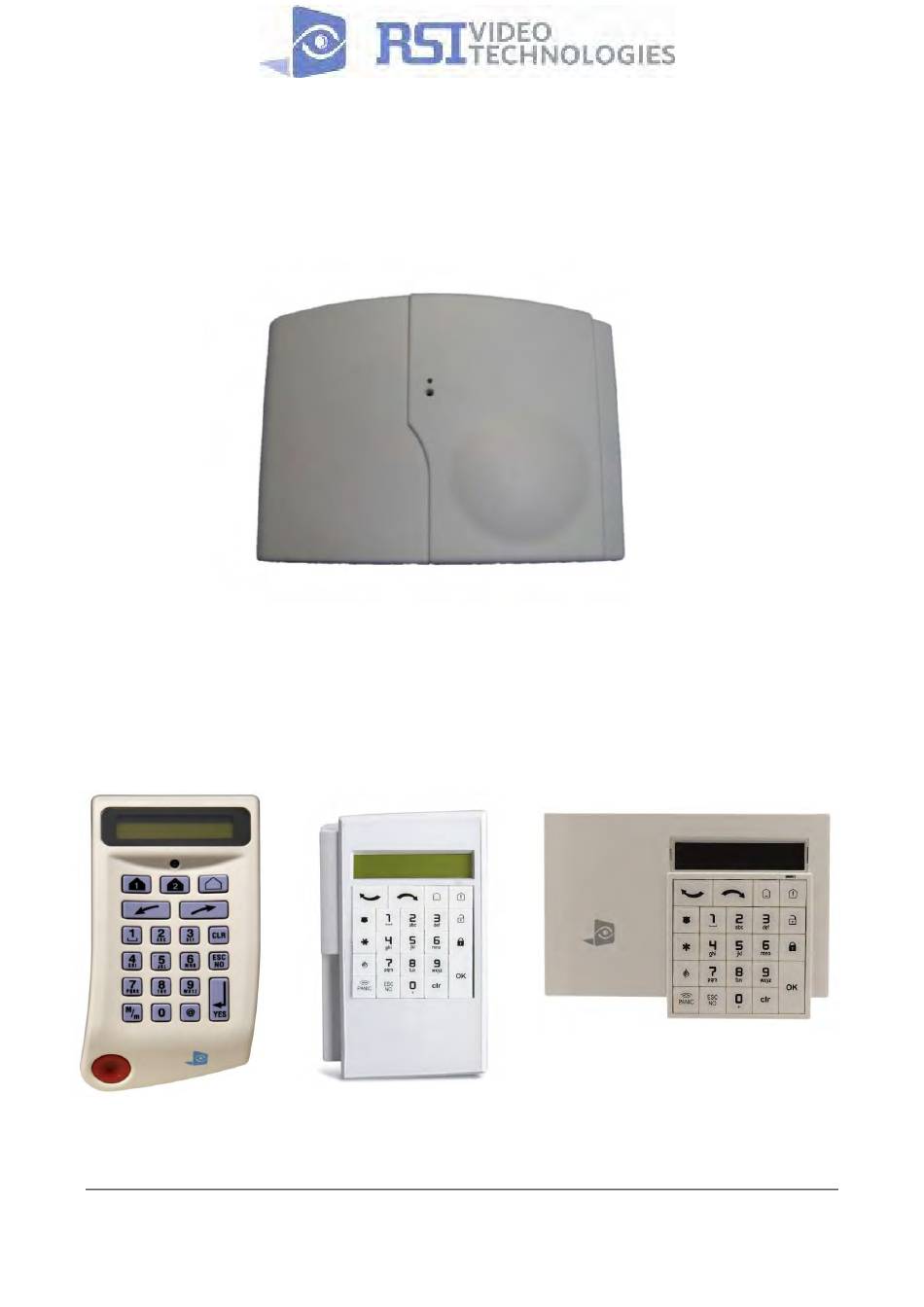

COMPLETE SETUP AND PROGRAMMING MANUAL
FOR
XT-IP 630 PANELS
A Videofied CMA/XMB/XMA/WMB Alphanumeric Keypad or Frontel TMT2 is required for
programming and maintenance
WMB
XMB/XMA
CMA
1375 Willow Lake Blvd. #103
Vadnais Heights, MN 55110
877-206-5800

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XT-IP 630 and is the answer not in the manual?

Questions and answers

Related Manuals for RSI VIDEO TECHNOLOGIES XT-IP 630

Summary of Contents for RSI VIDEO TECHNOLOGIES XT-IP 630

  • Page 1 Document #2002-XTIPIN COMPLETE SETUP AND PROGRAMMING MANUAL XT-IP 630 PANELS A Videofied CMA/XMB/XMA/WMB Alphanumeric Keypad or Frontel TMT2 is required for programming and maintenance XMB/XMA 1375 Willow Lake Blvd. #103 Vadnais Heights, MN 55110 877-206-5800...

  • Page 2: Table Of Contents

    2013/01/18 Ed 1 Setup and Programming manual for XTIP series Table of Contents Page Installation Guidelines Introduction Initial Programming 6-16 Device Installation Disabling Monitoring Entering Badges and Access Codes 19-20 Choosing Siren Options Ethernet Parameters and Testing Testing GPRS / 3G Level and Error Codes List Testing Device RF Level XTIP Power Chart Arming Input Wiring Diagram...

  • Page 3: Fcc

    2013/01/18 Ed 1 Setup and Programming manual for XTIP series Regulatory Information for USA and Canada FCC Part 15.21 Changes or modifications made to this equipment not expressly approved by RSI Video Technologies may void the FCC authorization to operate this equipment. FCC Part 15.105 Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 4: Installation Guidelines

    2013/01/18 Ed 1 Setup and Programming manual for XTIP series Basic Setup Guidelines for Installation and Programming Pre-Setup 1) Obtain the account number from the Central Station. 2) If using Cellular communication for primary or backup, activate the SIM card through your cellular provider a.

  • Page 5: Introduction

    2013/01/18 Ed 1 Setup and Programming manual for XTIP series Introduction: Description: The XTIP control panel is a Videofied wireless, battery operated hybrid alarm system. It is designed for residential, small business and commercial security applications. The XTIP provides integrated Video Verification and features dual communication paths: Ethernet and 2G3G (3G or less).
  • Page 6 2013/01/18 Ed 1 Setup and Programming manual for XTIP series SETUP MANUAL FOR XTIP SERIES 3G PANEL *THIS SYSTEM REQUIRES A CMA/XMB/XMA/WMB or TMT2 INSTALLER SOFTWARE FOR PROGRAMMING* **TO TRANSMIT ALARMS AND VIDEO VIA ETHERNET, THE SYSTEM REQUIRES AN EXTERNAL POWER SUPPLY WITH 4 ALKALINE BATTERIES FOR BACK-UP (PP4)** XT Initial Programming Open the Control Panel Using a #1 Phillips screwdriver, remove...
  • Page 7 2013/01/18 Ed 1 Setup and Programming manual for XTIP series *The SIM card must NOT be inserted or removed while the panel is powered* Install the SIM card Slide SIM card into the slot. Make sure it is aligned correctly. The SIM card is not required if you plan to use Ethernet only.

  • Page 8: Powering The Panel

    2013/01/18 Ed 1 Setup and Programming manual for XTIP series Powering the Panel **THE CONTROL PANEL MUST BE CONNECTED TO AN EXTERAL POWER SUPPLY WHEN ETHERNET FEATURE IS ACTIVE** Option 1: PP1 Option 2 4 x LSH20 SAFT Lithium D-Cell 4 x E95VP Alkaline D-Cell + 12v 2amp DC Class 2 power supply (not supplied) Used for Standalone or Xtender mode without...
  • Page 9 2013/01/18 Ed 1 Setup and Programming manual for XTIP series XTIP Programming Reset the XTIP Panel:  Press and hold programming button ( ) for 10sec until the Indicator LED blinks twice   Press and instantly release the programming button ( The indicator LED will blink once.

  • Page 10: Initial Programming

    2013/01/18 Ed 1 Setup and Programming manual for XTIP series  YES/OK The Radio Range test must be run during device recording RADIO RANGE to ensure proper pairing with the control panel. This tests TEST ? the number of successful pings between the device and the control panel.

  • Page 11: Periodic Test

    2013/01/18 Ed 1 Setup and Programming manual for XTIP series  YES/OK   DATE (Day) : Use the to set the Day 09/06/01 DATE (Day) : 09/06/03  YES/OK   Use the to set the Hour – The system uses a TIME (HOUR) : 00:00 24 hour clock.
  • Page 12 2013/01/18 Ed 1 Setup and Programming manual for XTIP series CODE/STATE modification CODE/STATE  MODIFICATION? YES/OK These are the default transmitted events: Device Alarm Alert Alarm Initialization Not Transmitted Panel Batteries Alarm/End TRANS. STATE AC Power Alarm/End MODIFICATION Phoneline Fault Not Transmitted Tamper Alarm/End...
  • Page 13 2013/01/18 Ed 1 Setup and Programming manual for XTIP series  Press right arrow to select the transmission mode for STRATEGY alarms and videos and YES/OK to confirm. ETH+2G3G  Ethernet transmission with 2G3G back-up  STRATEGY: Ethernet transmission only ...
  • Page 14 2013/01/18 Ed 1 Setup and Programming manual for XTIP series ETHERNET PARAMETERS DHCP: ENABLE OR DISABLE OU INACTIF DISABLE PANEL IP • These parameters are not necessary if you choose IP MASK DHCP ENABLE ENABLE • These parameters are the local network parameters. It’s necessary to configure all these parameters if GATEWAY DHCP is disabled.

  • Page 15: Exit Delay

    2013/01/18 Ed 1 Setup and Programming manual for XTIP series  Enter the name of the logical area 1 + YES/OK. Repeat AREAS this step for areas 2, 3, 4. Refer to page 4 for more CONFIGURATION information. Press ESC/NO if you want to let default value. AREA NAME 1: Note: Areas are designed to define logical separation between groups of devices.
  • Page 16 2013/01/18 Ed 1 Setup and Programming manual for XTIP series  By entering a value using the keypad, up to 600 seconds, TRANSMISSION the transmission of any event will be delayed that many DELAY seconds. Enter the value you would like for the Transmission Delay Value: (0-600) ...

  • Page 17: Device Installation

    2013/01/18 Ed 1 Setup and Programming manual for XTIP series Device Installation DCV651 – Outdoor MotionViewer / BR651 Outdoor Badge Reader Place batteries in Device. Wait for LED to turn on. Press and release the programming button. DCV601 – Indoor MotionViewer / ITR601 – Indoor Blind PIR Place batteries in device.

  • Page 18: Disabling Monitoring

    2013/01/18 Ed 1 Setup and Programming manual for XTIP series How to Disable/Enable Monitoring Disabling monitoring can be a useful tool in many situations. Before mounting devices and moving the panel to find a good GPRS / 3G level, disabling monitoring will ensure that you will have access to programming and that unnecessary signals are not sent to the monitoring station.

  • Page 19: Entering Badges And Access Codes

    2013/01/18 Ed 1 Setup and Programming manual for XTIP series Entering a Badge or Access Code for Arming/Disarming After Initial programming has been completed, you are not able to arm and disarm the system until you enter a user code or badge (the installer code cannot arm and disarm the system). Codes can be 4-6 digits and the 4 digit must be 2 values higher or lower than any other code on the system: Example: User code 1234, next code cannot be 1235, 1236, 1233, or 1232 –...

  • Page 20: Choosing Siren Options

    2013/01/18 Ed 1 Setup and Programming manual for XTIP series Access level Definition & rights LVL1 Stand by level Restricted USER level where it is only possible to arm/disarm the system. LVL2 USER level where it is possible to arm/disarm the system, check the event log, test the devices.

  • Page 21: Ethernet Parameters And Testing

    2013/01/18 Ed 1 Setup and Programming manual for XTIP series ETHERNET Parameters: nging Siren Options To configure or modify Ethernet Parameters, go to: CONFIGURATION (level 4) + [YES/OK] >> GENERAL PARAMETERS + [YES/OK] >> ETHERNET + After initial programming has been completed any sounder on the system will be enabled by default, [YES/OK] this includes the sounder on the Keypad and Badge Reader.

  • Page 22: Event Log

    2013/01/18 Ed 1 Setup and Programming manual for XTIP series GPRS / 3G for deployment of panel Before the system is mounted you will need to check the GPRS / 3G level to make sure it is adequate. If the level is 3/5 or better you can mount the control panel in that location.

  • Page 23: Maintenance

    2013/01/18 Ed 1 Setup and Programming manual for XTIP series How to test RF for deployment of devices Running the RF test during the mounting of devices is key to a successful Videofied installation. This test will ensure that all devices have adequate communication with the control panel. All Videofied devices are bi-directional which allows the system to ping the device and expect a response.

  • Page 24: Xtip Power Chart

    2013/01/18 Ed 1 Setup and Programming manual for XTIP series XTIP Power Chart 24 | P a g e 1375 Willow Lake Blvd. #103 Vadnais Heights, MN 55110...

  • Page 25: Arming Input Wiring Diagram

    2013/01/18 Ed 1 Setup and Programming manual for XTIP series Arming Input Wiring Diagram When in the ‘Arm From Host’ mode the Videofied system will only arm and disarm when 9-12v is supplied and sustained. When both arming inputs are supplied voltage at the same time the Videofied Keypad display will show ‘SYSTEM ARMED.

  • Page 26: Testing To Central Station

    2013/01/18 Ed 1 Setup and Programming manual for XTIP series How to test to the dispatch center Testing to the dispatch is done twice during installation. Once while you are programming the system and then again once the installation has been completely finished. Although both will use the same steps the initial test will be just confirmation using one device to verify the programming.

  • Page 27: Mounting Xt/Xtx

    2013/01/18 Ed 1 Setup and Programming manual for XTIP series How to mount the XTIP How to Mount the Control Panel? Fix the back casing on the wall  with 3 screws ()   27 | P a g e 1375 Willow Lake Blvd.

  • Page 28: Programmable Input Configuration

    2013/01/18 Ed 1 Setup and Programming manual for XTIP series General Programmable Input Configuration 28 | P a g e 1375 Willow Lake Blvd. #103 Vadnais Heights, MN 55110...
  • Page 29 2013/01/18 Ed 1 Setup and Programming manual for XTIP series 29 | P a g e 1375 Willow Lake Blvd. #103 Vadnais Heights, MN 55110...
  • Page 30 2013/01/18 Ed 1 Setup and Programming manual for XTIP series 30 | P a g e 1375 Willow Lake Blvd. #103 Vadnais Heights, MN 55110...

  • Page 31: Programmable Output Configuration

    2013/01/18 Ed 1 Setup and Programming manual for XTIP series General Programmable Output Configuration 31 | P a g e 1375 Willow Lake Blvd. #103 Vadnais Heights, MN 55110...
  • Page 32 2013/01/18 Ed 1 Setup and Programming manual for XTIP series 32 | P a g e 1375 Willow Lake Blvd. #103 Vadnais Heights, MN 55110...
  • Page 33 2013/01/18 Ed 1 Setup and Programming manual for XTIP series 33 | P a g e 1375 Willow Lake Blvd. #103 Vadnais Heights, MN 55110...

  • Page 34: Scheduling Configuration

    2013/01/18 Ed 1 Setup and Programming manual for XTIP series Scheduling Configuration 34 | P a g e 1375 Willow Lake Blvd. #103 Vadnais Heights, MN 55110...
  • Page 35 2013/01/18 Ed 1 Setup and Programming manual for XTIP series 35 | P a g e 1375 Willow Lake Blvd. #103 Vadnais Heights, MN 55110...
  • Page 36 2013/01/18 Ed 1 Setup and Programming manual for XTIP series 36 | P a g e 1375 Willow Lake Blvd. #103 Vadnais Heights, MN 55110...

  • Page 37: Troubleshooting

    2013/01/18 Ed 1 Setup and Programming manual for XTIP series Troubleshooting Monitoring Station is not getting ANY video but is getting signals: Good communication between the MotionViewers and the Control Panel is key to getting successful video to the monitoring station. During mounting of any device on your Videofied system you must run the Radio Range/Device Locating test to ensure that the mounting location is with-in range of the Control Panel.
  • Page 38 2013/01/18 Ed 1 Setup and Programming manual for XTIP series Monitoring Station is not getting any signals: Communication between the Control Panel and the Monitoring Station is either over the Ethernet Connection or GPRS / 3G side of the GSM cellular network. ...
  • Page 39 2013/01/18 Ed 1 Setup and Programming manual for XTIP series Unable to record device or getting ‘Pairing Failure’ error This usually occurs when the device still has a pairing key from a previous system or setup. To perform a pairing key override: 1.

  • Page 40: After Initial Programming Flow Chart

    2013/01/18 Ed 1 Setup and Programming manual for XTIP series XTIP -SERIES ‘AFTER INITIAL PROGRAMMING’ FLOW CHART Parameters are only available in Access Level 4 40 | P a g e 1375 Willow Lake Blvd. #103 Vadnais Heights, MN 55110...
  • Page 41 2013/01/18 Ed 1 Setup and Programming manual for XTIP series 41 | P a g e 1375 Willow Lake Blvd. #103 Vadnais Heights, MN 55110...

  • Page 42: Addendum

    2013/01/18 Ed 1 Setup and Programming manual for XTIP series Addendum 1. LSH20 Control Panel Batteries: 2. LS14500 Peripheral Batteries: Excludes SE601 and SE651 3. Lithium Battery Storage: 42 | P a g e 1375 Willow Lake Blvd. #103 Vadnais Heights, MN 55110...

  • Page 43: Event Log Ethernet Codes

    2013/01/18 Ed 1 Setup and Programming manual for XTIP series 4. Finding Manufacture Week and Year: The Manufacture week and year can be found in the serial number of the device/control panel. The second sets of 4 numbers in the serial number are WWYY. ####0411######## = Which shows that this device was manufactured in the 4 week of 2011.
