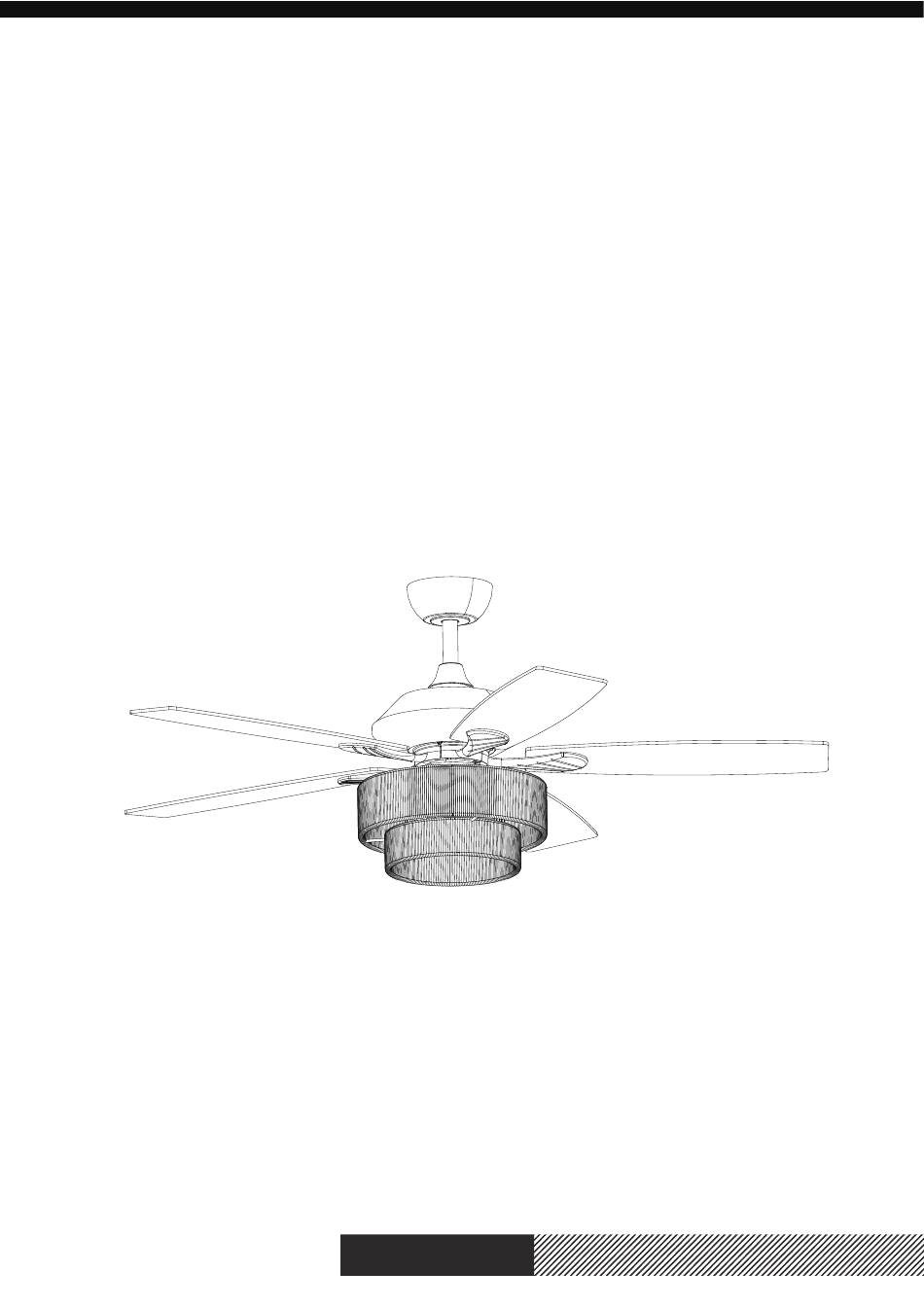

- Page 1 F6391110V INSTALLATION MANUAL READ AND SAVE THESE INSTRUCTIONS English...
-
Page 2: Safety Information
Safety Information To reduce the risk of electric shock, the electricity WARNING: To reduce the risk of personal injury, has been turned off at the circuit breaker or fuse do not bend the blade brackets (also referred to as flanges) during assembly or after installation. Do not box before begin. -
Page 3: Rated Voltage
NOTE: Children should be supervised to ensure that they do not use appliances as a toy. TECHNICAL INFORMATION SKU# Rated Voltage Light Rated Power (motor) 28W±5W 2*E12 Bulb MAX.25W (not included) F6391110V 110-120 VAC... - Page 4 Mounting screws Wood screws (2PCS) (4PCS) Blade screw (16PCS) Plastic wire nut Washer (2PCS) Blade washer (4PCS) (16PCS) Balanced parts package (1PC) Spring washer Blade bracket screws (2PCS) (1PC) Slide-on mounting bracket Neutral Wire N Neutral Wire N AC IN Black L Live Wire L AC IN White N 6"...
-
Page 5: Installing The Mounting Bracket
INSTALLING THE MOUNTING BRACKET: The ceiling fan must be installed in a location so that the blades are 12” (300mm) spacing from the tip of the blade to the nearest objects or walls. When hanging the Fan REMEMBER to turn off the power. Follow the instruction below to hang your fan properly: 1. - Page 6 Install the suspension system components of the product as shown in the diagram. Carefully lift the fan motor assembly onto the mounting bracket that was attached to the outlet box. Turn the entire assembly until the check tab (stopper of bracket) drops into the notch of the downrod ball and seats firmly.
- Page 7 Install the canopy to the screws of the mounting bracket, tighten the screws and cover the canopy cover. Attach the fan blade to the fan blade bracket using the blade screws and washers provided, tighten them firmly. Complete 5 blades assembly. Remove 10 screws from the motor assembly and remove 3 reforcing pieces, place the screws for subsequent.
- Page 8 Remove 3 screws from motor assembly. Connect the wires of the fan motor assembly with light fixture of light kit. Attach the light kit to the fan motor assembly using Install 2 E12 bulbs (not included) to the light fixture of the light kit. removed 3 screws and tighten firmly.
-
Page 9: Remote Controller
Remote controller INSTRUCTION OF INSTALLATION AND OPERATION 1. INSTALLING RECEIVER IN CEILING FAN A. Safety precautions: WARNING: HIGH VOLTAGE! Disconnect power by removing fuse or switching off circuit breaker. Do not use with solid state fans. INPUT Electrical wire must meet all local and national Neutral wire N AC IN Black L electrical code requirements. - Page 10 Switch Indicator Speed Controller Fan Power Switch Fan Reverse Natural Wind Security Light Switch Timer 2 X1.5V AAA Battery Actual use shall be subject to the real product Learning method of remote control: Power on the receiver, press the key at the emitter at once. The learning is succeed, when hear doule beep ringing from the loud speaker.
-
Page 11: Product Size
PRODUCT SIZE Dia 11.9 in. (Ø278mm) Dia 5.9 in. (Ø150mm) Dia 9.3 in. (Ø237mm) Dia 12.9 in. (Ø330mm) 52 in. (1320mm) 52 in. (1320mm) -
Page 12: Troubleshooting Guide
TROUBLESHOOTING GUIDE Table of Contents 1. Fan / Remote is not working 2. Fan is noisy 3. Fan Wobbles 4. Light is not working Please refer to the instruction sheet for detailed directions and descriptions of installation steps and requirements 1. -
Page 13: After Installation
AFTER INSTALLATION WOBBLE The fan blades have been adjusted in the factory to minimize any wobble NOTE: CEILING FANS TEND TO MOVE DURING OPERATION DUE TO THE FACT THAT THEY ARE MOUNTED ON A RUBBER CROMMET. IF THE FAN WAS MOUNTED RIGIDLY TO THE CEILING, IT WOULD CAUSE EXCESS VIBRATION. MOVEMENT OF A FEW CENTIMENTERS IS QUITE ACCEPTABLE AND DOES NOT SUGGEST ANY PROBLEM TO REDUCE THE FAN WOBBLE, PLEASE CHECK THAT ALL SCREWS WHICH SECURED THE MOUNTING BRACKET AND DOWNROD ARE SECURE.
