Summary of Contents for Parrot Uncle F6305Q110V

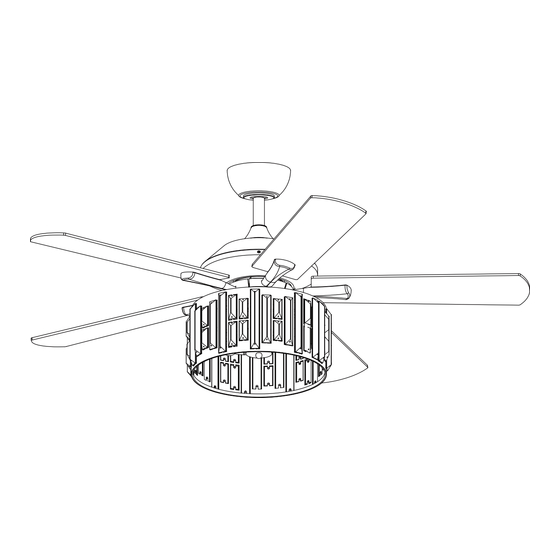

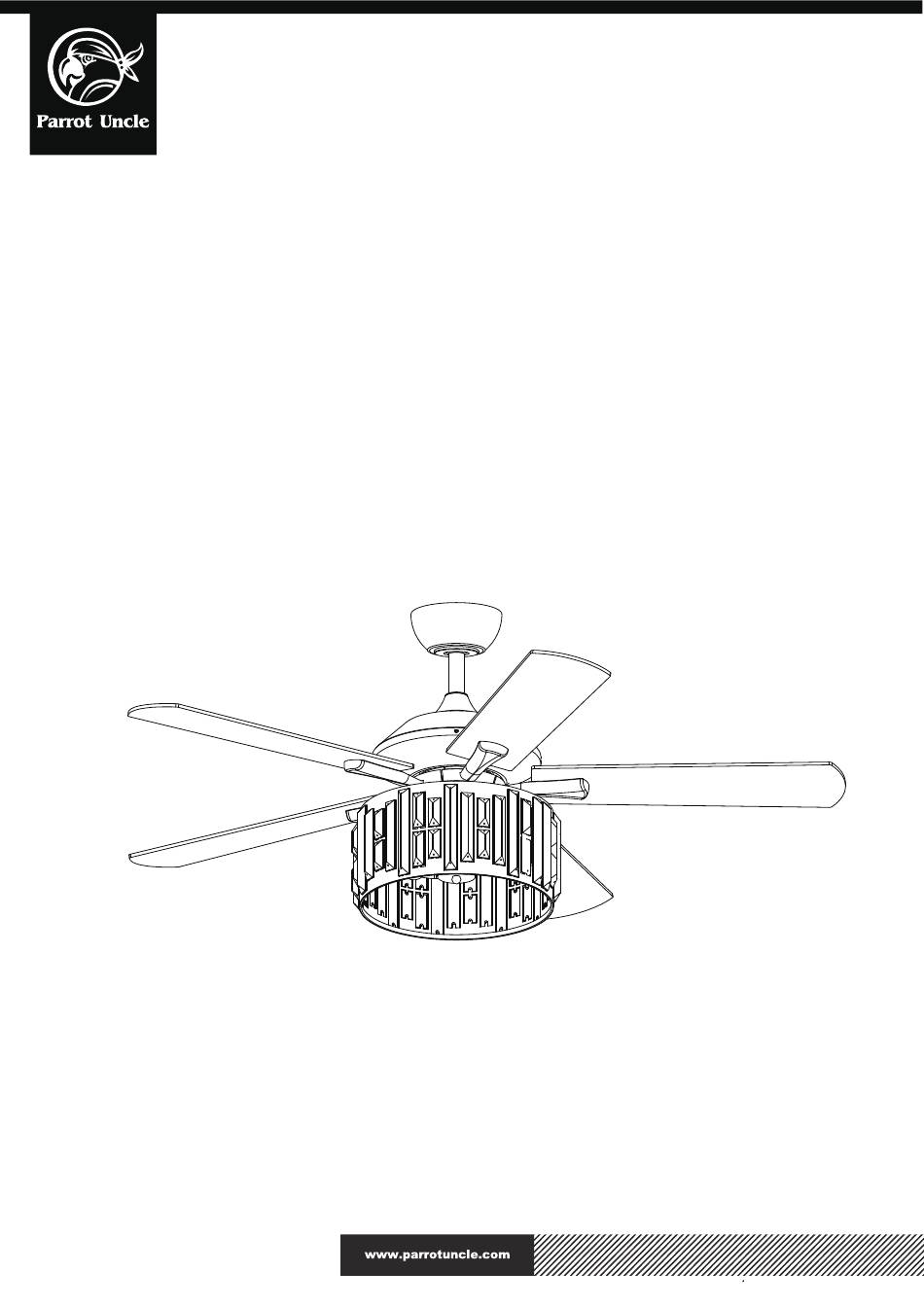

- Page 1 F6305Q110V / F6305BKQ110V CEILING FAN INSTALLATION MANUAL READ AND SAVE THESE INSTRUCTIONS English...
- Page 2 F6305Q110V / F6305BKQ110V Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BERAKER Safety Information To reduce the risk of electric shock, the electricity WARNING: To reduce the risk of personal injury,...
- Page 3 F6305Q110V / F6305BKQ110V Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BERAKER THANK YOU FOR YOUR PURCHASE Thank you for purchasing this quality product. To ensure correct function and safety, please read and save all instructions before using the product.
- Page 4 F6305Q110V / F6305BKQ110V Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BERAKER Mounting screws Wood screws (2PCS) (4PCS) Blade screw (16PCS) Plastic wire nut Washer (2PCS) (4PCS) Blade washer Balanced parts package...
- Page 5 F6305Q110V / F6305BKQ110V Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BERAKER Loose 2 screws of the mounting bracket under the canopy, removed the mounting bracket from the canopy. INSTALLING THE MOUNTING BRACKET: The ceiling fan must be installed in a location so that the blades are 12”...
- Page 6 F6305Q110V / F6305BKQ110V Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BERAKER Install the suspension system components of the product as shown in the diagram. Carefully lift the fan motor assembly onto the mounting bracket that was attached to the outlet box. Turn the entire assembly until the check tab (stopper of bracket) drops into the notch of the downrod ball and seats firmly.
- Page 7 F6305Q110V / F6305BKQ110V Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BERAKER Install the canopy to the screws of the mounting bracket, tighten the screws and cover the canopy cover.
- Page 8 F6305Q110V / F6305BKQ110V Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BERAKER Remove 3 screws from motor assembly. Connect the wires of the fan motor assembly with light fixture of light kit.
- Page 9 F6305Q110V / F6305BKQ110V Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BERAKER Remote controller INSTRUCTION OF INSTALLATION AND OPERATION 1. INSTALLING RECEIVER IN CEILING FAN A. Safety precautions: WARNING: HIGH VOLTAGE! Disconnect power by removing fuse or switching off circuit breaker.
- Page 10 F6305Q110V / F6305BKQ110V Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BERAKER FAN OFF Fan Power Switch Fan Forward and Reverse Speed Controller LED - LED + Light Switch Timer 2 X1.5V AAA Battery...
- Page 11 F6305Q110V / F6305BKQ110V Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BERAKER PRODUCT SIZE Dia 5.9 in. (Ø150mm) Dia 1.04 in. x 4 in. or 10 in. (Ø26.5mm x 100mm or 254mm) Dia 10.94 in.
- Page 12 F6305Q110V / F6305BKQ110V Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BERAKER TROUBLESHOOTING GUIDE Table of Contents 1. Fan / Remote is not working 2. Fan is noisy 3. Fan Wobbles 4.
- Page 13 F6305Q110V / F6305BKQ110V Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BERAKER AFTER INSTALLATION WOBBLE The fan blades have been adjusted in the factory to minimize any wobble NOTE: CEILING FANS TEND TO MOVE DURING OPERATION DUE TO THE FACT THAT THEY ARE MOUNTED ON A RUBBER CROMMET.
