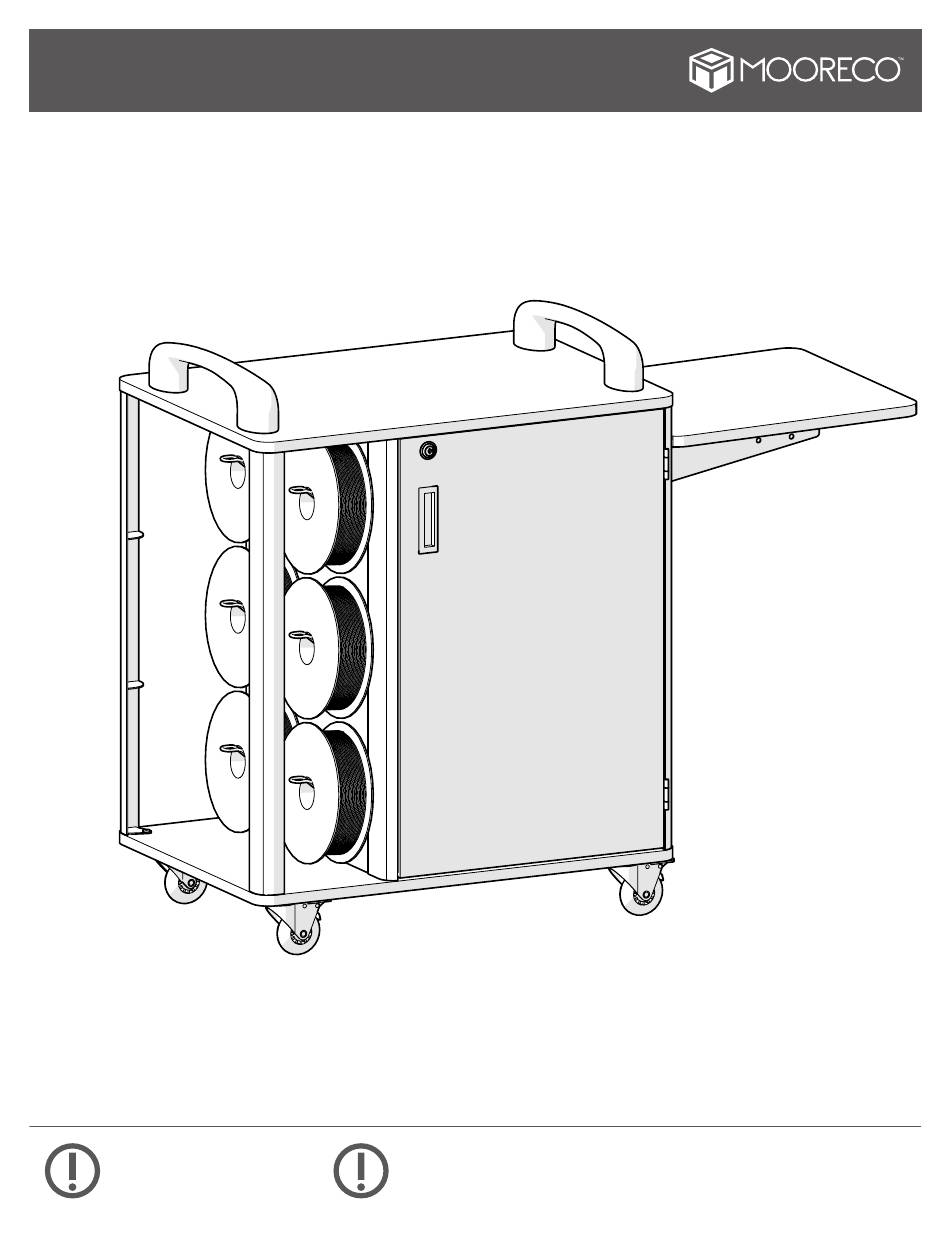

- Page 1 3D Printer Cart Part Numbers: 91403A ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE ENSEMBLAJE INSTRUCTIONS DE MONTAGE DO NOT THROW AWAY! NO LA TIRE NE PAS JETER UPDATED AS OF: 09/15/2020 1 of 10...
- Page 2 Parts Hardware P1 - Top A - Locking Caster B - Non-Locking Caster P2 - Base C - Back Shelf Bracket P3 - Side Panel Right D - Front Shelf Bracket P4 - Side Panel E - Screw M3x12mm Left F - Magnetic Door Catch P5 - Back Panel G - Cam Lock...
-
Page 3: Warranty
WARNINGS AND DISCLAIMERS ADVERTENCIAS Y RENUNCIAS AVERTISSEMENTS Review full assembly instructions and Previo a comenzar el proceso de Avant de commencer l’ assamblage check that all parts are present before ensamblaje favor revisar veuillez consulter instructions beginning assembly. Heavy or large instrucciones y asegurarse que cuenta con complètes et vérifier si vous avez toutes furniture may require multiple persons in... - Page 4 STEP 1 Attach Back Panel to Side Panels with Tapped Rivets. STEP 2 Insert Cam Posts and Dowels into Top. UPDATED AS OF: 09/15/2020 4 of 10...
- Page 5 STEP 3 Set Side and Back Panels onto Top. Rotate all Cam Locks to fix to Top. STEP 4 Insert screws to panel tabs to secure to top. Mount Door Catch to underside of Top using wood screws. UPDATED AS OF: 09/15/2020 5 of...
- Page 6 STEP 5 Set Uprights on Top and secure with one screw each. STEP 6 Insert Cam Posts and Dowels to Base. Add Cam Locks to Side and Back Panels then set Base onto panels. Rotate Cam Locks to secure. UPDATED AS OF: 09/15/2020 6 of 10...
- Page 7 STEP 7 Set Casters on Base and secure each with three 18mm screws through inserts and one 25mm screw and Tapped Rivet in the corner. Install both Locking Casters in front and Non-Locking Casters in the back. STEP 8 Flip cart upright and install Handles using two screws each. UPDATED AS OF: 09/15/2020 7 of 10...
- Page 8 STEP 9 Insert Shelf Brackets (Left and Right) through slots in side panel on cart. Set shelf on brackets and secure with screws. STEP 10 Insert Shelf Pins to inside of cart and set in Shelves by aligning routed slots with pins. UPDATED AS OF: 09/15/2020 8 of 10...
- Page 9 STEP 11 Install lock on Door. Door Inside Face STEP 12 Install door by placing three wood screws through each hinge and tightening into door. UPDATED AS OF: 09/15/2020 9 of 10...
- Page 10 STEP 13 Insert Trays to corresponding shelves. STEP 14 Mount Wire Hangers to side of cart using two screws each. THIS COMPLETES ASSEMBLY INSTRUCTION UPDATED AS OF: 09/15/2020 10 of 10...
