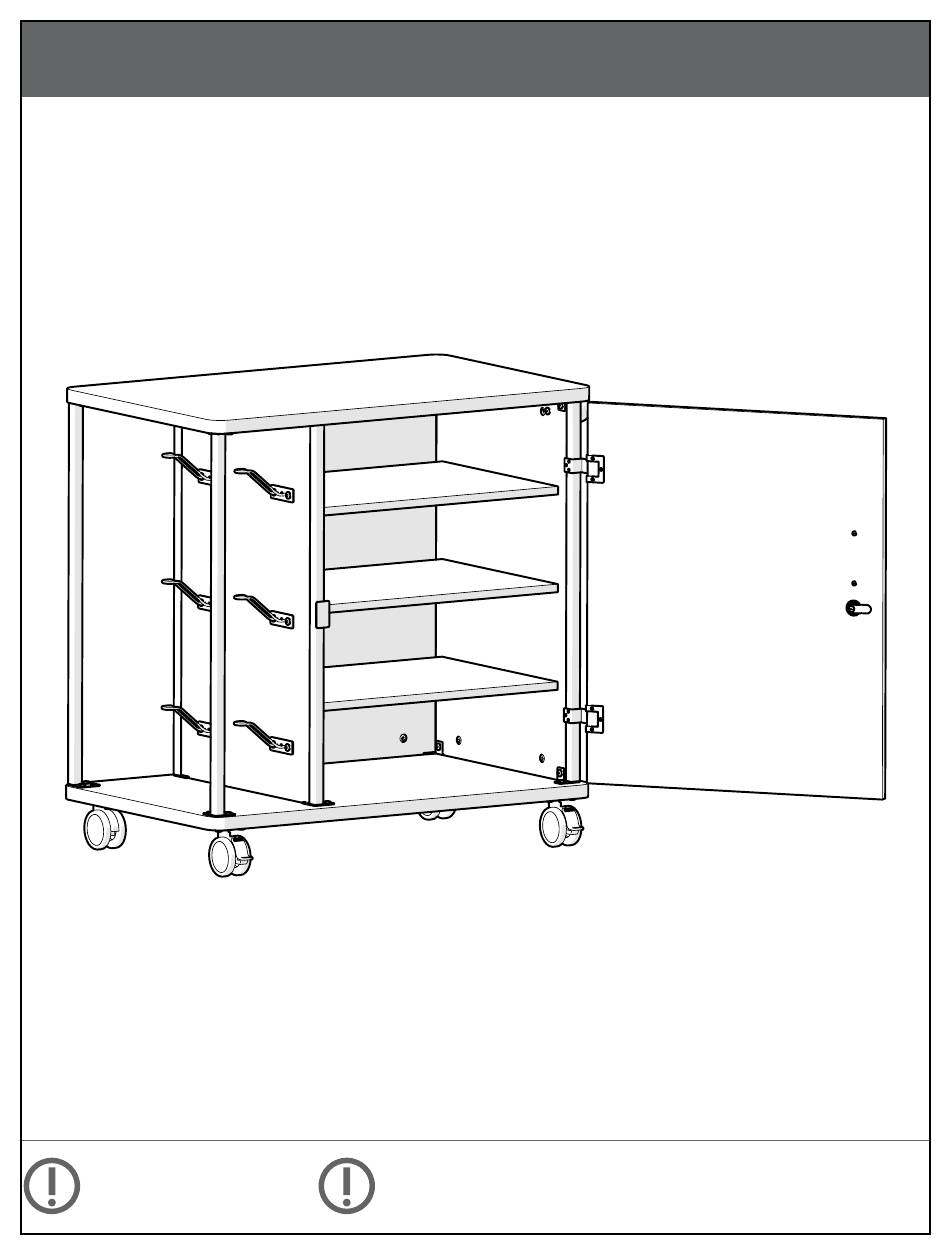

- Page 1 Essential 3D Printer Cart Part Number: 91687 ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE ENSEMBLAJE INSTRUCTIONS DE MONTAGE DO NOT THROW AWAY! NO LA TIRE NE PAS JETER UPDATED AS OF: 08/30/17 1 of 9...
- Page 2 PARTS (2x) (2x) (6x) ASSEMBLY INSTRUCTIONS INSTRUCTIONS DE MONTAGE INSTRUCCIONES DE ENSEMBLAJE NE PAS JETER DO NOT THROW AWAY! NO LA TIRE UPDATED AS OF: 08/30/17 2 of 9...
- Page 3 HARDWARE I- Allen Wrench A- 6x Small Wood Screws B- 2x #8-5/32” Lock Parts Screws C- 12x Shelf Pins D- 48x 1/4”x12mm Screws E- 2x M6-1.0 x30mm Screws F- 12x Wood Dowels G- 12x Cam Locks H- 12x Cam Posts ASSEMBLY INSTRUCTIONS INSTRUCTIONS DE MONTAGE INSTRUCCIONES DE ENSEMBLAJE...
-
Page 4: Spanish Translation
WARNINGS AND DISCLAIMERS SPANISH TRANSLATION FRENCH TRANSLATION Review full assembly instructions and Previo a comenzar el proceso de Avant de commencer l’ assamblage check that all parts are present before ensamblaje favor revisar veuillez consulter instructions beginning assembly. Heavy or large instrucciones y asegurarse que cuenta con complètes et vérifier si vous avez toutes furniture may require multiple persons in... - Page 5 STEP 1 STEP 2 Use 4 “D” screws to attached Repeat step 1 using P4 and P6. P8 and P6 to P5. Note: P4 has 2 through holes to Note: P5 Has 12 holes on the the outside. outside. STEP 3 STEP 4 Drop the two side panel Install 6 “H”...
- Page 6 STEP 5 STEP 6 Use 6 “G” cam locks to Carefully Tilt the two secure the 3 panels to the side panels slightly base. Screw 2 D screws outward, and drop the through the front posts, back panel (P3) into into the base.
- Page 7 STEP 9 STEP 10 Insert 6 “G” cam locks and Use 6 “D” screws to tighten to secure the top to secure the top to the base the base assembly. assembly. STEP 11 STEP 12 Flip the cart assembly right Flip the cart assembly side up.
- Page 8 STEP 13 STEP 14 Slide 3 P9 shelves into the Install 6 P16 spool hooks cabinet and rest on shelf using 12 “D” screws. pins. STEP 15 STEP 16 Use 6 “A” screws to screw the Use 2 “E” screws, from the door (P10) to the hinges.
- Page 9 STEP 17 STEP 18 Assemble lock while installing on door. User 2 “B” screws to install Image A shows all parts. Image B shows the small plastic handle (P15). which parts go on each side of the door. Note orientation of latch to ensure correct functionality.
