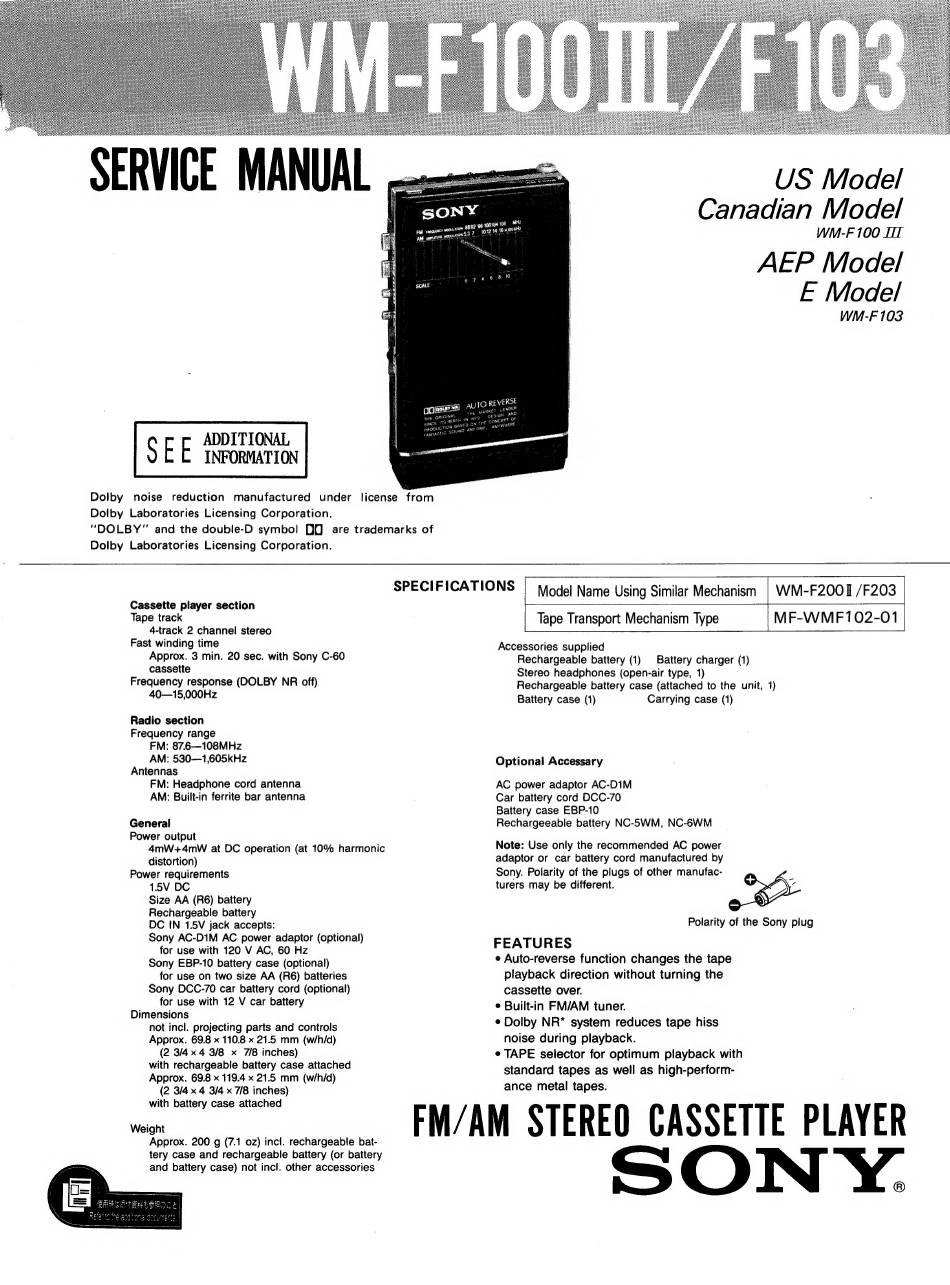

Sony WM-F100III Service Manual

" F F ADDITIONAL
INFORMATION
ae AE we
ne moe ee WM-F 100 IIT
AEP Model
E Model
WM-F103
Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
"DOLBY" and the double-D symbol 0 are trademarks of
Dolby Laboratories Licensing Corporation.
Cassette player section
Tape track
4-track 2 channel stereo
Fast winding time
Approx. 3 min. 20 sec. with Sony C-60
cassette
Frequency response (DOLBY NR off)
40—15,000Hz
Radio section
Frequency range
FM: 87.6—108MHz
AM: 530—1,605kHz
Antennas
FM: Headphone cord antenna
AM: Built-in ferrite bar antenna
General
Power output
4mW+4mW at DC operation (at 10% harmonic
distortion)
Power requirements
1.5V DC
Size AA (R6) battery
Rechargeable battery
DC IN 1.5V jack accepts:
Sony AC-D1M AC power adaptor (optional)
for use with 120 V AC, 60 Hz
Sony EBP-10 battery case (optional)
for use on two size AA (R6) batteries
Sony DCC-70 car battery cord (optional)
for use with 12 V car battery
Dimensions
not incl. projecting parts and controls
Approx. 69.8 x 110.8 x 21.5 mm (w/h/d)
(2 3/4x 4 3/8 x 7/8 inches)
with rechargeable battery case attached
Approx. 69.8 x 119.4 x 21.5 mm (w/hid)
(2 3/4 x 4 3/4 x 7/8 inches)
with battery case attached
Weight
Approx. 200 g (7.1 02) incl. rechargeable bat-
tery case and rechargeable battery (or battery
and battery case) not incl. other accessories
SPECIFICATIONS | Model Name Using Similar Mechanism | WM-F2001 /F203
Tape Transport Mechanism Type MF-WMF102-01
Accessories supplied
Rechargeable battery (1) Battery charger (1)
Stereo headphones (open-air type, 1)
Rechargeable battery case (attached to the unit, 1)
Battery case (1) Carrying case (1)
Optional Accessary
AC power adaptor AC-D1M
Car battery cord DCC-70
Battery case EBP-10
Rechargeeable battery NC-5WM, NC-6WM
Note: Use only the recommended AC power
adaptor or car battery cord manufactured by
Sony. Polarity of the plugs of other manufac-
turers may be different. \V7
Polarity of the Sony plug
FEATURES
e Auto-reverse function changes the tape
playback direction without turning the
cassette over.
¢ Built-in FM/AM tuner.
¢ Dolby NR* system reduces tape hiss
noise during playback.
e¢ TAPE selector for optimum playback with
standard tapes as well as high-perform-
ance metal tapes.
FM/AM STEREO CASSETTE PLAYER
ONY.
