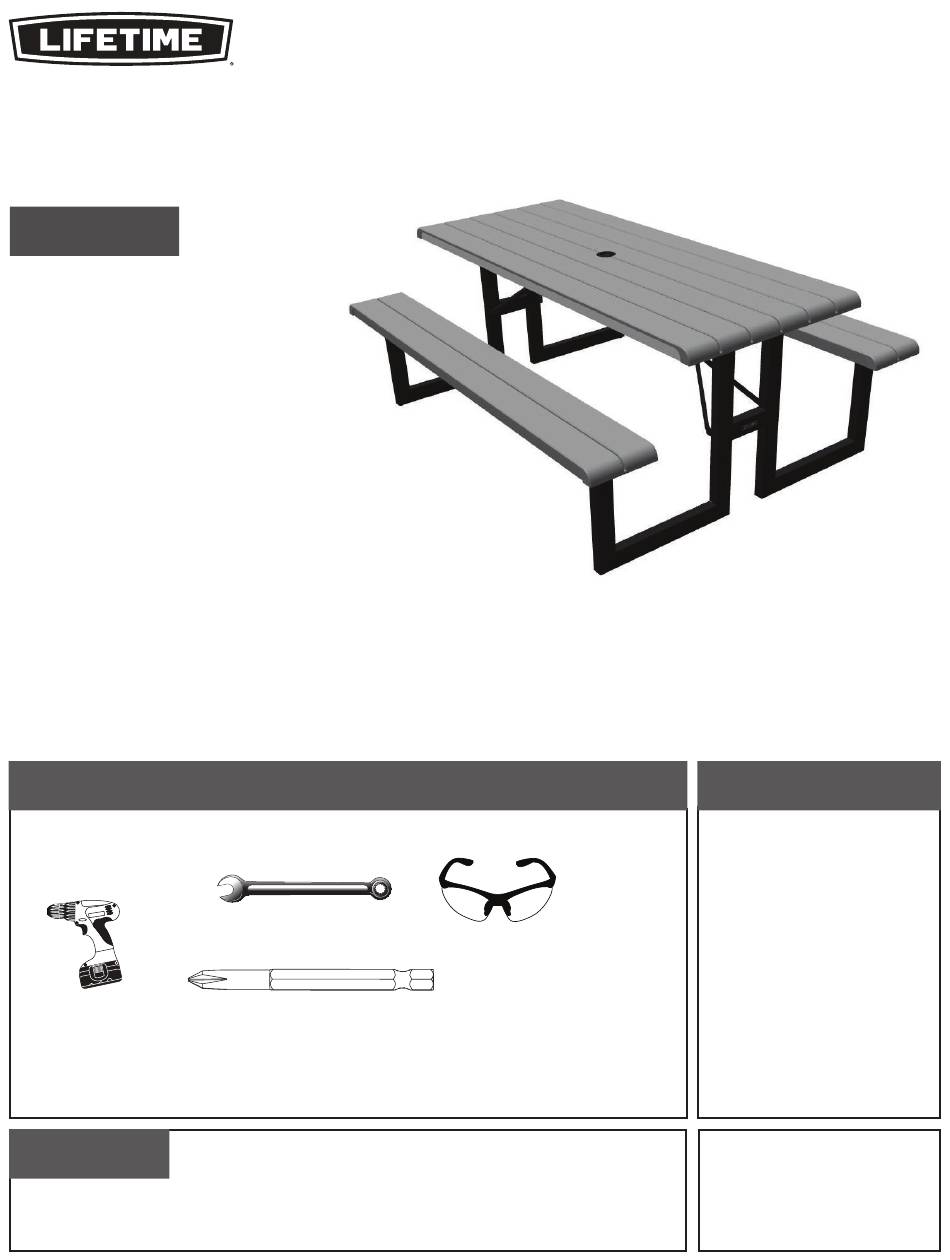

Lifetime 60481U Assembly Instructions Manual

Folding picnic table
Hide thumbs

Advertisement

Quick Links

Download this manual
FOLDING
PICNIC TABLE
MODEL 60481U
ITM. / ART. 1807117
BEFORE ASSEMBLY:
• Assemble on a level surface
• At least 2 people recommended for setup
ITEM IS INTENDED FOR OUTDOOR COMMERCIAL AND DOMESTIC USE ONLY. IMPORTANT,
RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
TOOLS REQUIRED (NOT INCLUDED)
(Not included—unless otherwise indicated*)
QUESTIONS?
Call: 1-800-225-3865
(English, French, Spanish)
10 mm (x2)
CONTACT LIFETIME CUSTOMER SERVICE:
Live Chat:
www.lifetime.com/customerservice/home
(click on "LIVE CHAT" tab)
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
(x2)
For Customer Service in mainland
Europe and the United Kingdom:
E-mail: csinternational@lifetime.com
TABLE OF CONTENTS
Icon legend...................................4
Warnings & notices......................5
Table assembly..............................6
Table storage...............................15
Additional warnings.....................19
Cleaning & care...........................22
Registration...........................23
Warranty................................24
Model Number: 60481U
Product ID:

Advertisement

loading
Need help?

Need help?

Do you have a question about the 60481U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lifetime 60481U

Summary of Contents for Lifetime 60481U

  • Page 1 Table storage.......15 Additional warnings.....19 10 mm (x2) Cleaning & care......22 Registration......23 (x2) Warranty........24 QUESTIONS? Model Number: 60481U CONTACT LIFETIME CUSTOMER SERVICE: Product ID: Call: 1-800-225-3865 For Customer Service in mainland Live Chat: Europe and the United Kingdom: www.lifetime.com/customerservice/home (English, French, Spanish) E-mail: csinternational@lifetime.com...

  • Page 2: Instructions D'assemblage

    Enregistrement......23 Garantie........25 (x2) N° de pièce : 60481U ® QUESTIONS ? CONTACTER AUX SERVICES À LA CLIENTÈLE LIFETIME Référence du produit : Pour les services à la clientèle du Composer le 1-800-225-3865 Entretien en direct: continent européen: (anglais, français, espagnol) www.lifetime.com/customerservice/home...

  • Page 3: Instrucciones De Ensamblaje

    10 mm (x2) Registro........23 Garantía........26 (x2) Número de pieza: 60481U ® ¿PREGUNTAS? PONERSE EN CONTACTO CON LOS SERVICIOS DE CLIENTES LIFETIME ID del producto: Chat en vivo: Llamar : 1-800-225-3865 Para el servicio a clientes en el continente europeo: Correo electrónico: www.lifetime.com/customerservice/home (inglés, francés, español)
  • Page 4 ICON LEGEND / LÉGENDE DES ICÔNES / LEYENDA DE ÍCONOS • Indicates special heed should be taken when reading. • Indique qu’une attention spéciale doit être portée à la lecture. • Indica que uno debe prestar atención al leer. • Indicates the parts (or no parts) required for a section. •...
  • Page 5 WARNINGS & NOTICES / AVERTISSEMENTS ET AVIS / ADVERTENCIAS Y AVISOS English: • Failure to follow these warnings may result in serious injury or property damage and will void warranty. • To ensure safety, do not attempt to assemble this product without following the instructions carefully. •...
  • Page 6 TABLE ASSEMBLY / ASSEMBLAGE DE LA TABLE / ENSAMBLAJE DE LA MESA HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO GTQ (x8) FMN (x4) AON (x4) GTR (x8) PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Large parts / Grandes pièces / Piezas grandes BWP (x2) BWO (x2) BWM (x1)
  • Page 7 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTIL ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO • Lay the table top (BWM) upside down on the ground. Use a drill or electric screwdriver to remove the six (6) screws connecting one of the channels to the table top, and remove the channel from the table top.

  • Page 8: Section 1 (Continued) / Section 1 (Suite)

    SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTIL ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO 10mm (x2) FMN (x4) AON (x4) •...
  • Page 9 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTIL ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO • Insert a leg assembly (BWO) and a leg brace assembly (BWP) into the two large holes along the J-channel that is still connected to the table top as indicated.
  • Page 10 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTIL ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO GTP (x6) All removed in step 1.1 Toutes les vis enlevées dans l’étape 1.1 Todos quitados en paso 1.1 •...
  • Page 11 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTIL ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO GTR (x2) • Lay the table legs and table leg braces down fl at on the table top. Place a sliding end cap (GTR) on the ends of one of the tubes on a table leg as indicated.
  • Page 12 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTIL ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO GTR (x6) • Attach two (2) sliding end caps (GTR) to the tube on the other table leg, and lift the bench assembly upward until the sliding end caps rest inside the underside of the bench.
  • Page 13 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTIL ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO GTQ (x8) 1.11 • While another adult holds the table legs upright, insert four (4) screws (GTQ) through the holes in the bench channels and into the bench as shown to keep the sliding end caps under the glide rails.
  • Page 14 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTIL ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDO Arrow / Flèche / Flecha BBZ (x1) 1.12 •...
  • Page 15 TABLE STORAGE / RANGEMENT DE LA TABLE / ALMACENAMIENTO DE LA MESA • To store the picnic table, tip the table on one side as shown. Slide the locking ring down the leg brace, and push down on the locking lever to fold the leg. •...
  • Page 16 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) NO TOOLS AND HARDWARE REQUIRED / AUCUN OUTIL OU QUINCAILLERIE REQUIS / NINGÚN INSTRUMENTAL O HERRAJE REQUERIDO • After pushing down on the locking lever, push the table leg towards the table top. •...

  • Page 17: Section 2 (Continued) / Section 2 (Suite)

    SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) NO TOOLS AND HARDWARE REQUIRED / AUCUN OUTIL OU QUINCAILLERIE REQUIS NINGÚN INSTRUMENTAL O HERRAJE REQUERIDO • Lock the leg in place by sliding the locking strap under the leg brace. •...
  • Page 18 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN) NO TOOLS AND HARDWARE REQUIRED / AUCUN OUTIL OU QUINCAILLERIE REQUIS NINGÚN INSTRUMENTAL O HERRAJE REQUERIDO • Finally attach the locking strap to itself with the Velcro. Repeat these steps for the other leg. Store the table. •...
  • Page 19 ADDITIONAL WARNINGS / AVERTISSEMENTS SUPPLÉMENTAIRES / ADVERTENCIAS ADICIONALES • WATCH FOR PINCH POINTS! • PRENEZ GARDE DE NE PAS VOUS FAIRE PINCER ! • ¡TENGA CUIDADO CON LOS PUNTOS DE PELLIZCA! 1232926_B 19 19...
  • Page 20 NOTES / REMARQUES / NOTAS 20 20...
  • Page 21 NOTES / REMARQUES / NOTAS 21 21...

  • Page 22: Cleaning And Care

    ® product purchase. By following the instructions below, your new Lifetime product should provide you with years of service and enjoyment. The polyethylene panels are stain and solvent resistant. Most stains can be removed using a mild soap and a soft-bristled brush.
  • Page 23 à des tiers, et ne leur permettra pas d’utiliser vos données personnelles à leurs propres fi ns. Nous vous invitons à lire notre politique de confi dentialité à www.lifetime.com (en anglais seulement) ENREGISTRER CE PRODUIT aujourd’hui! REGISTRAR EL PRODUCTO EN LÍNEA EN WWW.LIFETIME.COM...
  • Page 24 This warranty is expressly in lieu of all other warranties, expressed or implied, including warranties of merchantability or fi tness for use to extent permitted by Federal and state law. Neither Lifetime Products, Inc., nor any representative assumes any other liability in connection with this product. This warranty gives you specifi c legal rights, and you may also have other rights which vary from state to state.
  • Page 25 à cette condition et aucun représentant de la société ne peut renoncer à l’application de cette politique ou la modifi er. Ce produit n’est pas destiné à des fi ns institutionnelles ou commerciales; Lifetime Products, Inc. n’assume aucune responsabilité à cet égard. Toute utilisation institutionnelle ou commerciale annule la garantie.
  • Page 26 SON OBSOLETAS. El comprador original recibe una garantía de que los productos de césped y jardín de Lifetime están libres de defectos de material o mano de obra durante un período de 2 años a partir de la fecha de compra original al por menor. La palabra “defectos”...
  • Page 27 IMPORT INFORMATION / IMPORTATIONS / INFORMACIÓN DE IMPORTACIONES Distributed by: Importado por: Importadora Primex S.A. de C.V. Costco Wholesale Corporation Blvd. Magnocentro No. 4 P.O. Box 34535 Seattle, WA 98124-1535 San Fernando La Herradura Huixquilucan, Estado de México C.P. 52765 1-800-774-2678 www.costco.com RFC: IPR-930907-S70...
  • Page 28 Pour acheter des accessoires ou des autres produits Lifetime , visiter le : www.lifetime.com Ou composer le 1-800-424-3865 ® MEJORAR LA COMPRA DE LIFETIME AGREGANDO ACCESORIOS U OTROS MARAVILLOSOS PRODUCTOS Para comprar accesorios u otros productos de Lifetime®, visitarnos en: www.lifetime.com O marcar al 1-800-424-3865 12/5/2024 1236641_B...
