www.lg.com
Copyright © 2024 LG Electronics Inc. All
Rights Reserved.

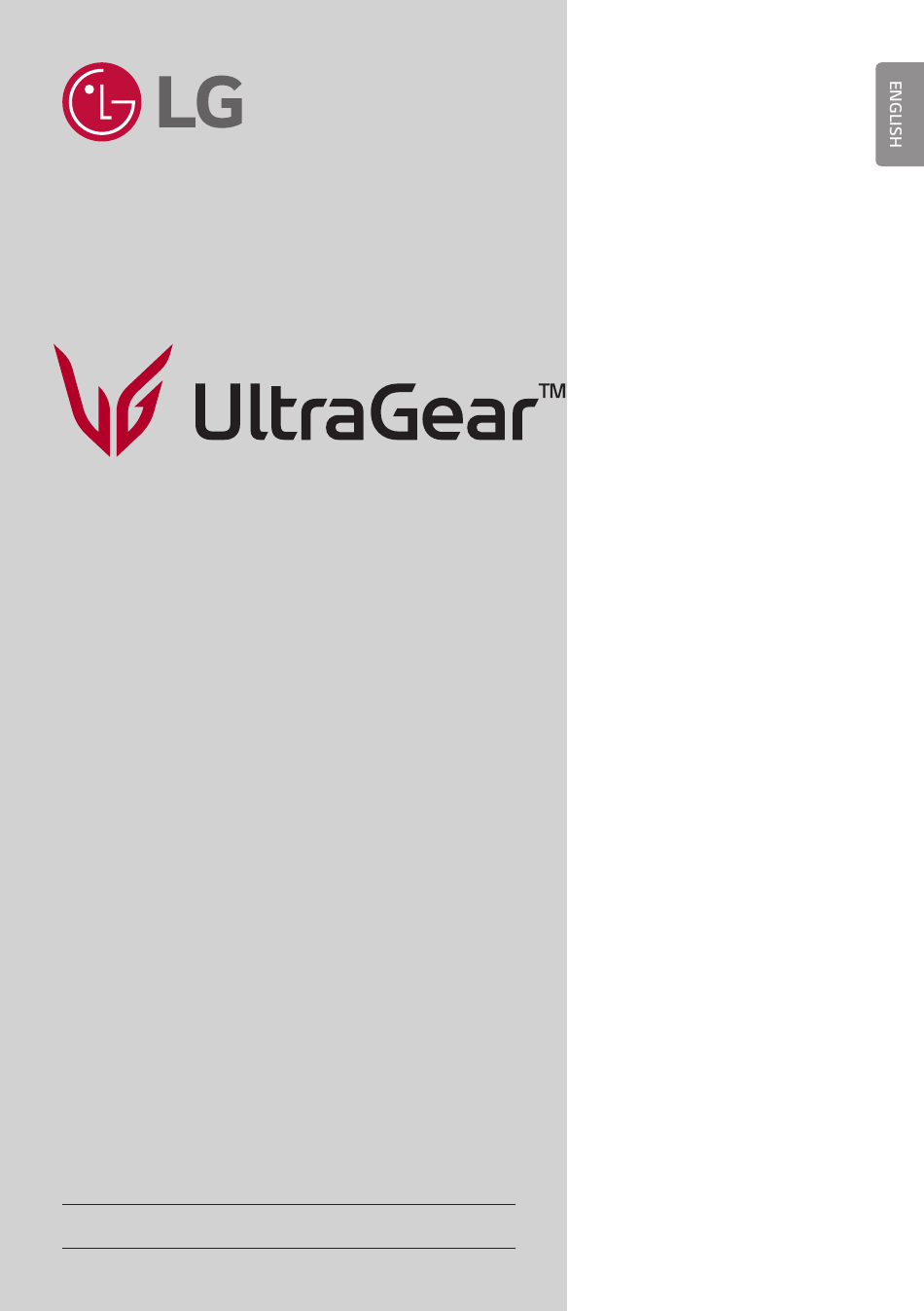

(Smart Monitor)
OWNER'S MANUAL
Please read this manual carefully before operating
your set and retain it for future reference.
32G810SA
The model and serial number of the product are located on the
back and on one side of the product. Record them below in case
you ever need service.
Model
Serial No.
Advertisement
Table of Contents
Related Manuals for LG UltraGear 32G810SA
Summary of Contents for LG UltraGear 32G810SA
- Page 1 Copyright © 2024 LG Electronics Inc. All Rights Reserved. (Smart Monitor) OWNER’S MANUAL Please read this manual carefully before operating your set and retain it for future reference. 32G810SA The model and serial number of the product are located on the back and on one side of the product.
-
Page 2: Before Reading This Manual
- If loosely connected, the poor connection may cause a fire or electric shock. • Be sure to use power cords and AC adaptors provided or approved by LG Electronics, Inc. - The use of non-approved products may cause a fire or electric shock. -
Page 3: Precautions In Installing The Product
• Never disassemble, repair or modify the power cord or AC adaptor. - This may cause a fire or electric shock. • Use only the power cord supplied with the unit or another manufacturer's authorised cord. - Failure to do so may result in fire or electrical shock or damage to the product. •... -
Page 4: Precautions In Moving The Product
• If you smell smoke or other odours or hear a strange sound from the product unplug the power cord and contact LG Customer Service. - If you continue to use without taking proper measures, electrical shock or fire can occur. -
Page 5: Precautions In Using/Cleaning The Product
- Fire or electric shock can occur. - Contact LG Customer Service for repair. • When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not clean with a wet cloth or spray water or other liquids directly onto the product. -
Page 6: Installation
Installation Lifting and moving the Monitor Please note the following advice to prevent the Monitor from being scratched or damaged and for safe transportation regardless of its type and size. • It is recommended to move the Monitor in the box or packing material that the Monitor originally came in. •... -
Page 7: Installing On A Table
Installing on a Table • Lift the monitor and place it on the table in an upright position. Place the monitor at least 100 mm away from the wall to ensure sufficient ventilation. : 100 mm • Unplug the power cord before moving or installing the monitor. There is risk of electric shock. •... -
Page 8: Adjusting The Angle
Adjusting the Angle 1 Place the monitor mounted on the stand base in an upright position. 2 Adjust the angle of the screen. The angle of the screen can be adjusted forward or backward from -8° to 15° for a comfortable viewing experience. And you can also adjust the angle of the screen by 30 degrees to the left or to the right. - Page 9 2 Adjust the angle of the monitor in the direction of the arrow as shown in the figure. 3 Rotate the monitor clockwise as shown in the figure. 4 Complete the installation by rotating the monitor 90° as shown in the figure. Note •...
-
Page 10: Adjusting The Stand Height
Adjusting the Stand Height 1 Make sure to hold and move the monitor with both hands. Max 110.0 mm • To avoid injury when adjusting the height, do not put your hands on the stand. Using the Kensington Lock For more information on installation and usage, refer to the Kensington lock owner’s manual or visit the website at http://www.kensington.com. Connect the monitor to a table using the Kensington security system cable. -
Page 11: Installing On The Wall
Installing on the Wall This monitor meets the specifications for the wall mount plate or other compatible devices. • Install the monitor at least 100 mm away from the wall and leave about 100 mm of space at each side of the monitor to ensure sufficient ventilation. - Page 12 • Unplug the power cord before moving or installing the monitor to avoid electric shock. • Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could lead to injury. Use an authorised LG wall mount and contact the local dealer or qualified personnel.
-
Page 13: Connecting To A Port
Connections You can connect various external devices to your monitor. Change the input mode and select the external device you want to connect. For more information about external device connections, see the user manual provided with each device. Connecting to a Port Some of the cables are not provided. -
Page 14: Hdmi Connection
HDMI connection Transmits digital video and audio signals from your PC to the monitor. • When connecting the HDMI cable, the product and external devices should be turned off and unplugged. • Supported HDMI Audio format: Dolby Digital / Dolby Digital Plus (32 kHz / 44.1 kHz / 48 kHz), PCM (32 kHz / 44.1 kHz / 48 kHz / 96 kHz / 192 kHz) •... -
Page 15: Headphones Connection
USB-C (UPSTREAM) connection Transmits digital video and audio signals from your PC to the monitor. Note • USB-C does not support fast charging. Gender converters for fast charging is also not supported. • PD(Power Delivery) and DP Alternate Mode(DP over USB-C) are supported via USB-C (UPSTREAM) Port. •... -
Page 16: Starting Monitor
Starting Monitor Parts and Buttons The image may be different according to the model. Power On (Press) Quick Menu (Press Volume Control Menu Control Menu Selection (Press Menu Control Power Off (Press and Hold) 1 When the monitor is turned on, press the button one time. 2 You can use the function when you control menu. -
Page 17: Using Remote Control
Using Remote Control Replacing the Remote Control Battery Use 3 V, CR2025 button cell battery. Replace the battery with new one and insert it in the battery tray as shown. 1 To separate the battery tray on the back of the remote control, push the hook to the side and then pull it. 2 Align the side of the replacement battery to the battery tray label and insert them correctly. -
Page 18: Product Information
Product Information Environment Condition Operating Temperature 0 °C to 40 °C Operating Humidity Less than 80 % Storage Temperature -20 °C to 60 °C Storage Humidity Less than 85 % Wireless module (LGSBWAC23) Specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency range Output Power (Max.) 2,400 to 2,483.5 MHz 16 dBm 5,150 to 5,725 MHz 16 dBm... - Page 19 Specifications are subject to change without notice. The symbol means alternating current, and the symbol means direct current. Dimensions: Monitor Size (Width x Depth x Height) • With Stand: 714.6 mm x 249.1 mm x 624.1 mm • Without Stand: 714.6 mm x 67.7 mm x 428.5 mm Weight (Without Packaging) •...
-
Page 20: Support Mode
Support Mode (Preset Mode, HDMI) Horizontal Frequency Resolution Vertical Frequency (Hz) Polarity (H/V) Remarks (kHz) 640 x 480 31.469 59.940 800 x 600 37.879 60.317 1024 x 768 48.363 60.004 1280 x 720 45.000 60.000 1280 x 1024 79.976 75.025 1920 x 1080 67.500 60.000... -
Page 21: Hdmi Timing (Video)
(Preset Mode, DisplayPort/USB-C) Horizontal Frequency Resolution Vertical Frequency (Hz) Polarity (H/V) Remarks (kHz) 640 x 480 31.469 59.940 800 x 600 37.879 60.317 1024 x 768 48.363 60.004 1280 x 720 45.000 60.000 1280 x 1024 79.976 75.025 1920 x 1080 67.500 60.000 1920 x 1080... -
Page 22: Open Source Software Notice Information
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. -
Page 23: Troubleshooting
Troubleshooting Do you see an "Unrecognised monitor, Plug and Play (VESA DDC) Nothing is displayed on the screen. monitor found" message? • Is the monitor's power cord plugged in? • Make sure to check if the graphics card supports Plug and Play - Check if the power cord is correctly plugged into the power outlet.
