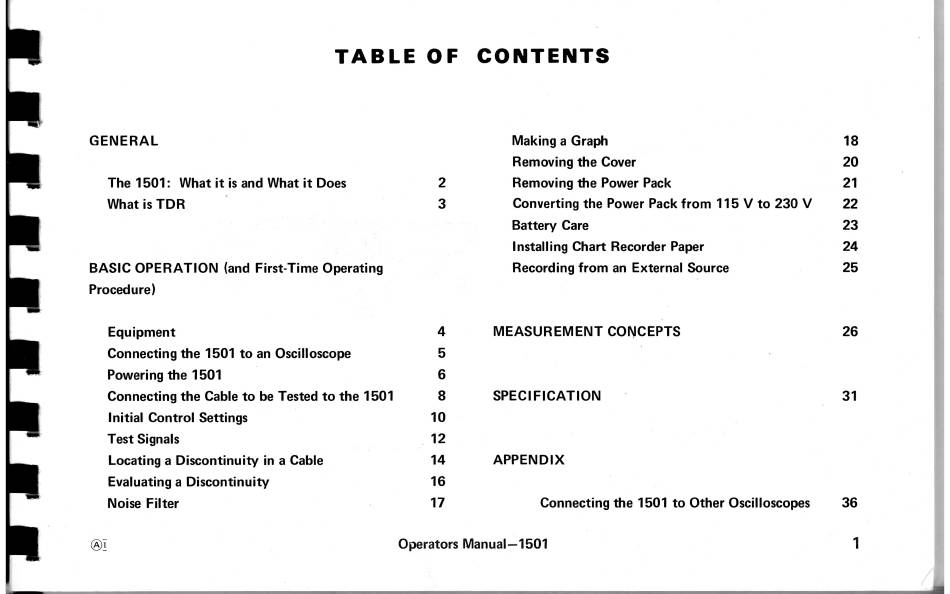

TABLE OF CONTENTS
GENERAL
The 1501: What it is and What it Does
What is TDR
BASIC OPERATION (and First-Time Operating
Equipment
Connecting the 1501 to an Oscilloscope
Powering the 1501 ,
Connecting the Cable to be Tested to the 1501
Initial Control Settings
Test Signals
Locating a Discontinuity in a Cable
Evaluating a Discontinuity
Noise Filter
Making a Graph
Removing the Cover
Removing the Power Pack
Converting the Power Pack from 115 V to 230 V
Battery Care
Installing Chart Recorder Paper
Recording from an External Source
MEASUREMENT CONCEPTS
SPECIFICATION
APPENDIX
Connecting the 1501 to Other Oscilloscopes
Operators Manual-1501
