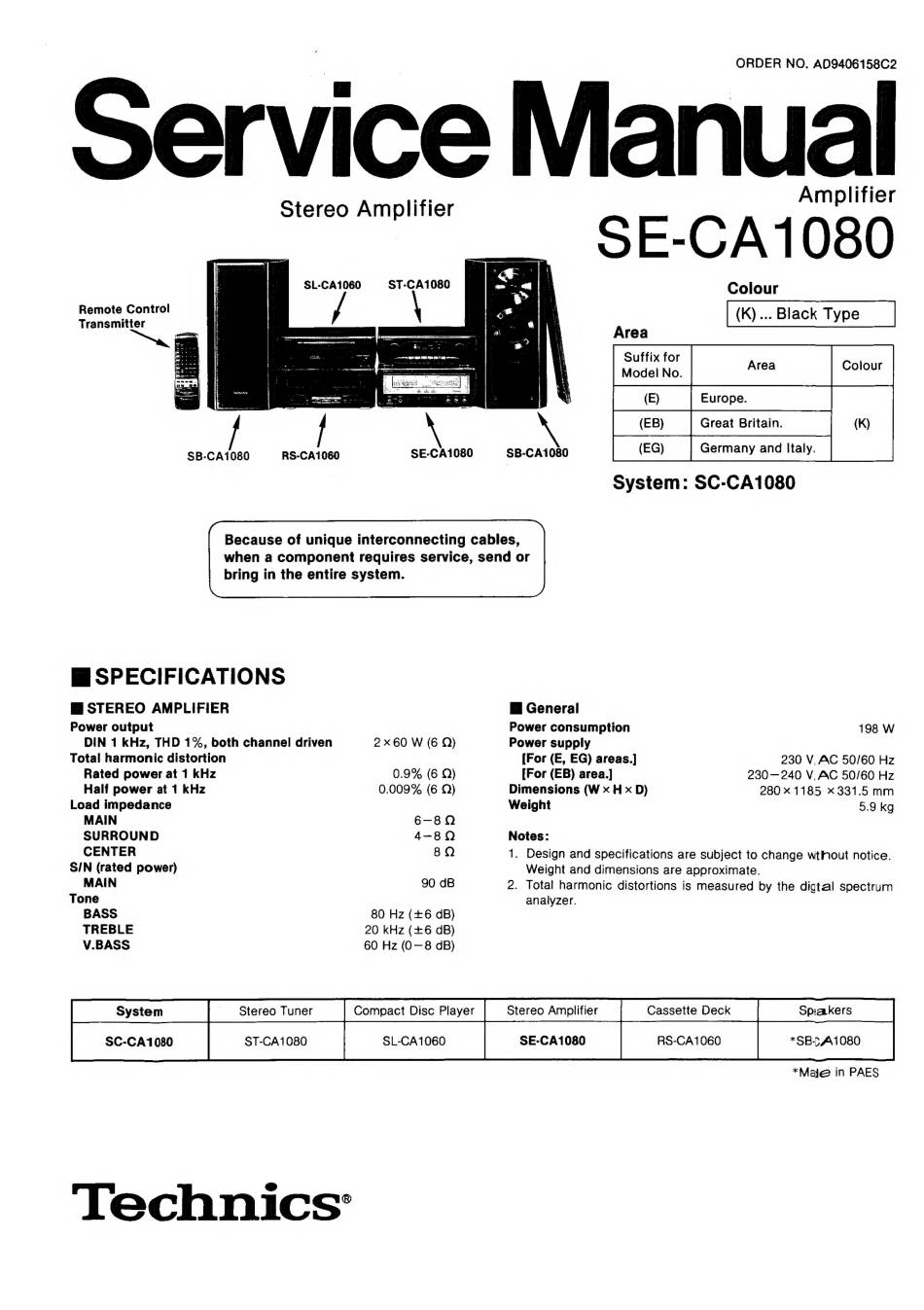

Technics SE-CA1080 Service Manual

ORDER NO. AD9406158C2
Amplifier
SE-CA1080
Suffix for
© | Europe
Stereo Amplifier
Remote Control
Transmitter
(EG) Germany and Italy.
system: SC-CA1080
Because of unique interconnecting cables,
when a component requires service, send or
bring in the entire system.
SPECIFICATIONS
M@ STEREO AMPLIFIER @ General
Power output Power consumption 198 W
DIN 1 kHz, THD 1%, both channel driven 2x 60 W (6 Q) Power supply
Total harmonic distortion [For (E, EG) areas.] 230 V AC 50/60 Hz
Rated power at 1 kHz 0.9% (6 Q) [For (EB) area.] 230-240 V,AC 50/60 Hz
Half power at 1 kHz 0.009% (6 9) Dimensions (W x H x D) 280 x 1185 x 331.5 mm
Load impedance Weight 5.9 kg
MAIN 6-80
SURROUND 4—-8Q Notes:
CENTER
8Q 1. Design and specifications are subject to change wthout notice.
S/N (rated power) Weight and dimensions are approximate.
MAIN
90 dB
2. Total harmonic distortions is measured by the digtal spectrum
Tone analyzer.
BASS 80 Hz (+6 dB)
TREBLE 20 kHz (+6 dB)
V.BASS 60 Hz (O—8 aB)
Compact Disc Player Stereo Amplifier Cassette Deck
ST-CA1080 SL-CA1060 SE-CA1080 RS-CA1060 *SBCA1080
SC-CA1080
*Maje in PAES
Technics:
