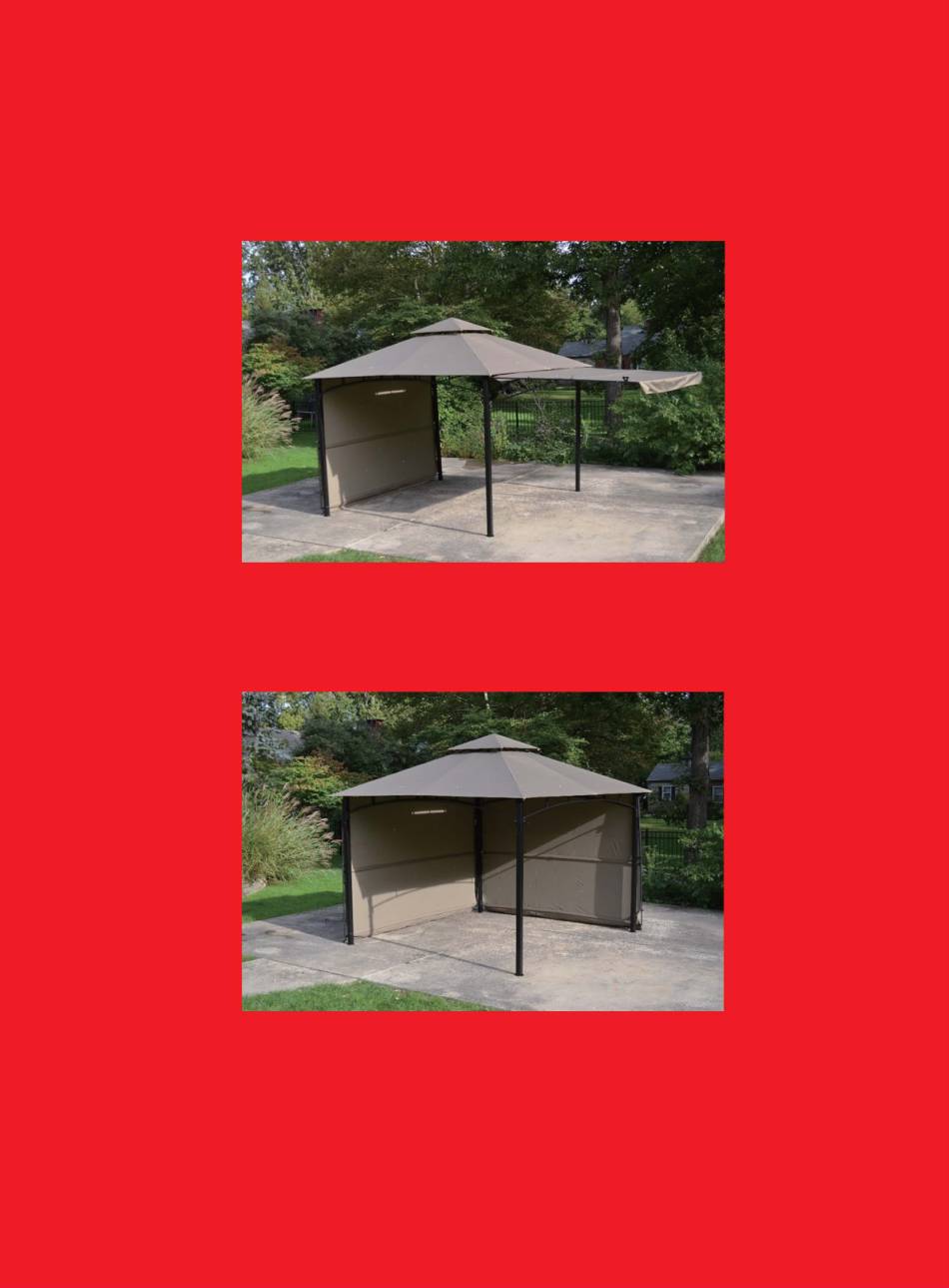

- Page 1 906618 Devonshire Gazebo...
- Page 2 Always secure, stake or weigh down shade canopy during assembly and once setup. We DO NOT recommend assembly or use during weather events such as wind, rain or other adverse condit ions. Provided stakes are to keep canopy in place during assembly and are NOT designed as a permanent method of securing canopy to protect it from weather damage.
- Page 4 Step 2- Set corner posts as shown in Figure 2. Slide side panels that were assembled in Step 1 into the metal pockets un�l the push pins snap in to place. Repeat for all 4 sides and secure with temporary ground stakes ( included Part R )un�l assembly is completed.
- Page 5 Step 3 & 4 r--- . . . Step 3-lnsert Part (F) Roof Support into Part (I) Top Center Hub. NOTE-the step on Part (F), should face up when inserting into Part (I). Insert Part (G) into Part (I) Top Center Hub. NOTE-Part (F) and Part (G) should alternate when inserting into Part (I).
- Page 6 Figure 6 Figure 8 Figure 7 Step 6-Slide Part J Side Support into the top metal ring located on the Part A Corner Post (Figure 6) until the push pins snaps into place. Repeat for the second side. Step 7-Slide Part P Arm Support into bracket located on Part A Corner Post. Fix them together with Bolts 1 and Nuts 2. (Figure7) Take top of part P Arm Support and fix it to Part J Side Support with Nut 2.
- Page 7 Step8 Step 8- The canopy is designed to have a tight fit on the frame of the gazebo. It is important that you put the canopy on the top frame correctly so you do not have to manually pull the canopy corners into place. Following instructions properly concerning Part (H) will make putting your canopy on much easier.
- Page 8 Step 9 & 10 (Figure 9) Step 9- Connect Part (L) Shade Support and Part (M)Shade Support (Figure 9). Repeat for the second set. Step 10-Slide the parts from Step 9 into the fabric pockets of Part (N) Side Co ver. Repeat for the second side panel Step 11 --------- ------...
- Page 9 Step 12 -- -- -------- ----- ----- ----- ----- _____.,.-� _,,, ( Figure 14 ) ( Figure 11 ) ( Figure 12 ) Step 12-Fasten Part (Q) Bungee Ties to Side Panel Frame. See Figure 11 Step 13- Insert Part (R) Ground Stakes in the bottom of each leg frame as shown in Figure 12. There are two holes for stakes in the bottom of each leg.
