PAC Stinger HEIGH10 Manual

Stinger HEIGH10
Introduction and Features
The SRK-GM14HX is a complete radio replacement kit for the installation of the Stinger HEIGH10 (UN1810) modular radio in
Chevrolet Silverado and GMC Sierra trucks. All modules, cables and adapters are included to retain important features of the
factory system, including: OnStar, front and rear park assist, warning chimes, factory reverse camera, steering wheel-mounted
radio controls and AM/FM reception. Plug & Play wiring harnesses allow for quick and easy installation without the need to cut or
splice any wiring. The display mounting panel allows flush mounting the 10 inch display without modifying/cutting any part of the
vehicle's sub-dash.
Important Notes
We recommend reading this manual thoroughly to familiarize yourself
with the entire process prior to beginning the installation.
1. Does not retain the following factory features:
● Factory satellite radio
● Rear seat entertainment system (RSE)
● Time of Day in Cluster
● Factory USB Ports
2. If installing aftermarket amplifiers, the included RPA-SPK can be used to retain OnStar/chimes.
3. Chime volume can be adjusted in the HEIGH10's settings
4. The Voice button can be set to activate the factory OnStar function when pressed for longer than 1.5 seconds or given the
ability to control the aftermarket radio. This option can be found in the Installer Settings on the HEIGH10. By default, this fea-
ture is set to control the aftermarket radio, but OnStar can still be accessed by using the mirror controls.
5. This guide is applicale to HEIGH10 (UN1810) radios. For ix210 (HORIZON10/HEIGH10+) radios, see the ix210 Installation
Guide
Recommended Tools
Plastic Panel Tool
7mm Socket
10mm Socket

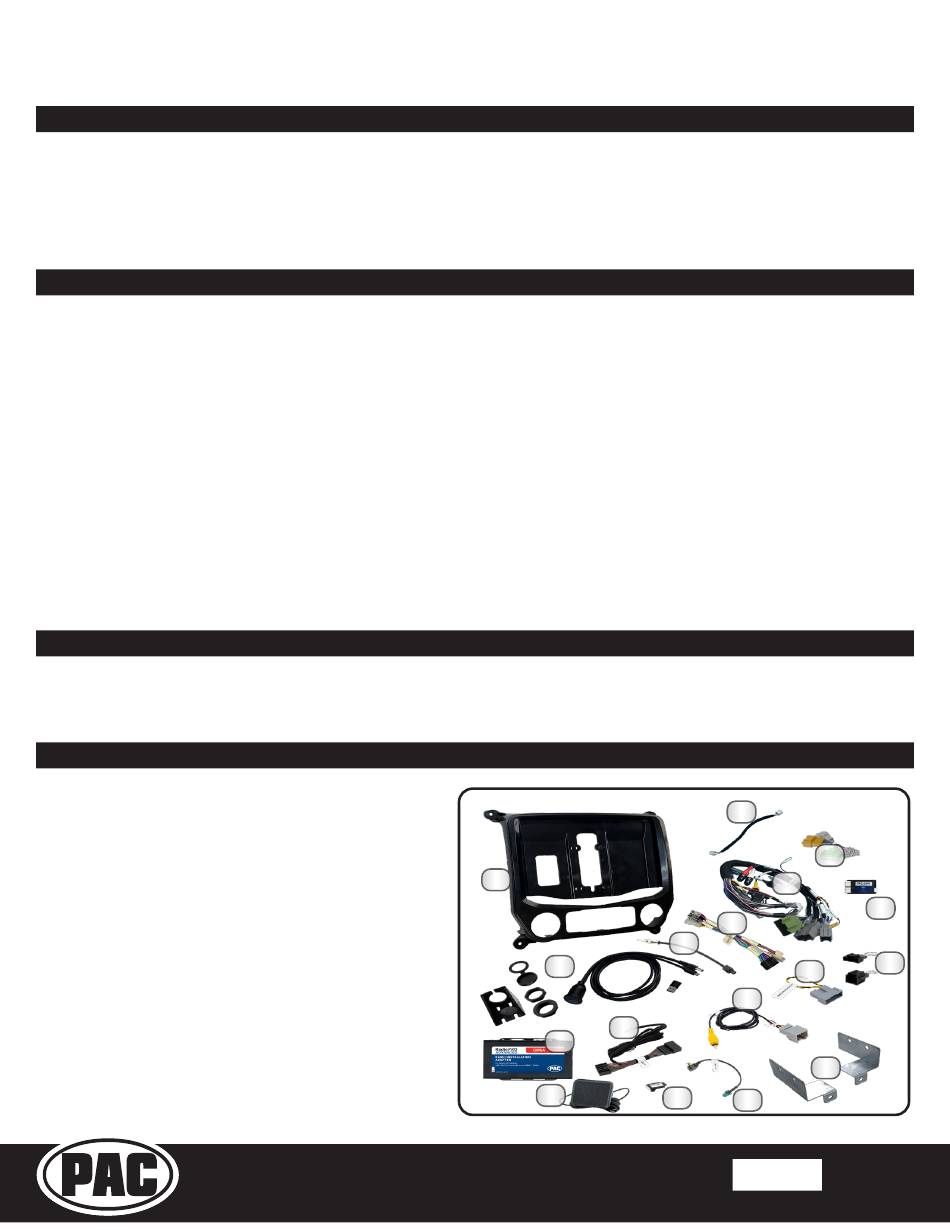

Included Components
1. Display Mounting Panel
2. Dual USB Extension (SSUSB3)
3. AM / FM Antenna Adapter (BAA22)
4. Main Harness Adapter (SR-SRK-ADAPT-UN1810)
5. Main Harness (SRK-GM14HX-HAR)
6. Vehicle Harness Adapter (GM52-ADAPT)
7. Radio Replacement Interface (GM6A-SRK)
8. Steering Wheel Control Harness (GM5LIN-SW-HAR)
9. Factory Rear Camera Adapter (CAM-GM51-HAR)
10. IOB Display Harness (GM5CAM-DIS-HAR)
11. MOST Loops (MOST Loop 1 / MOST Loop 2)
12. External Chime Speaker (RPA-SPK)
13. Differential Video Adapter (RPA-VA1)
14. Satellite Antenna Adapter (SAT-01)
15. Side Mounting Brackets (L & R)
16. PAC-Link Cable (10P-2-10P-6)
17. PAC-Link Module (PL1)
NOTE: Along with the SRK-GM14HX components,
additional hardware and wire harnesses from the HEIGH10
(UN1810) kit will also be used in the installation.
®
Pacific Accessory Corporation
● Valet Mode
● Teen Driver Features
● OnStar Text
● Wi-Fi
Ratchet
Torx T15 Screwdriver
Small Flat-blade Screwdriver
