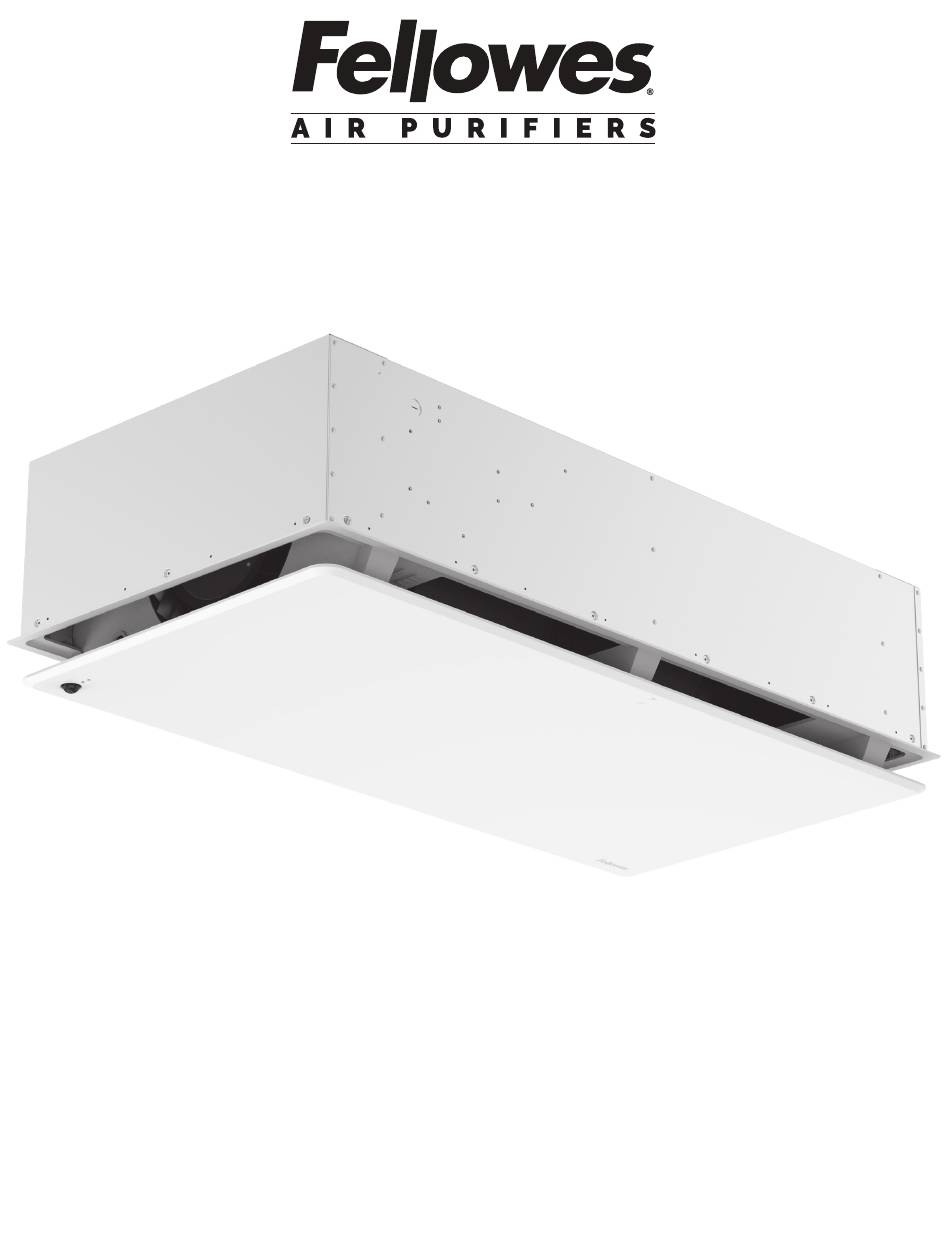

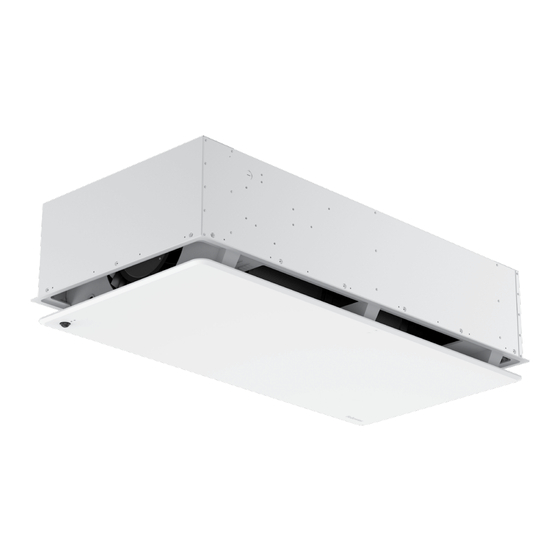

Array AR2
Recessed Air Purifier
Purificateur d'air encastré
Purificador de aire empotrado
Install Guide
Guide d'installation
Guía para la instalación
PLEASE READ THESE INSTRUCTIONS BEFORE USE.
DO NOT DISCARD: KEEP FOR FUTURE REFERENCE.
VEUILLEZ LIRE CES INSTRUCTIONS AVANT D'UTILISER L'APPAREIL.
NE PAS JETER : CONSERVER AFIN DE CONSULTER LES DIRECTIVES
ULTÉRIEUREMENT, EN CAS DE BESOIN.
LEA ESTAS INSTRUCCIONES ANTES DEL USO.
NO LAS DESECHE: CONSÉRVELAS PARA REFERENCIA FUTURA.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Array AR2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fellowes Array AR2

Summary of Contents for Fellowes Array AR2

  • Page 1 Array AR2 Recessed Air Purifier Purificateur d’air encastré Purificador de aire empotrado Install Guide Guide d’installation Guía para la instalación PLEASE READ THESE INSTRUCTIONS BEFORE USE. DO NOT DISCARD: KEEP FOR FUTURE REFERENCE. VEUILLEZ LIRE CES INSTRUCTIONS AVANT D’UTILISER L’APPAREIL.

  • Page 2: Packaging Contents

    ENGLISH PACKAGING CONTENTS • Air Purifier (1X) • Centering Blocks (4X) • Hybrid Filters w/ Pre-Filter (1X) • User Manual (1X) • 16ft mounting cables with clutches (4X) TOOLS REQUIRED FOR INSTALLATION • Gloves • Two adjacent, unobstructed 24” x 24” drop ceiling tiles with at least 18” clearance above the drop ceiling •...
  • Page 3 Close the door until a click is heard. Depending on Remove mounting hardware and verify included Pull filters out by the straps and set aside type of ceiling, attach proper mounting hardware part quantities. for now. above installation area per local regulations for supporting a 92 lb (42kg) fixture.
  • Page 4 Coil and wrap remaining cable out of the way. Check below units for visible gaps. If needed, Tape off the hook slots as shown. Do not trim excess cable lengths. add centering blocks between unit and grid. Trim out as desired. Working from above the unit, attach a UL approved straight or 90°...
  • Page 5 FILTER INSTALLATION PROCEDURE Unit will notify you when filter needs to be changed with a red led visible on the bottom of the unit. For replacement filters, please visit: www.fellowes.com Open the door by depressing the latch button and Remove new filter from protective bag and Gently push in filter until a click is heard.
  • Page 6 Array AR2 Recessed Air Purifier Purificateur d’air encastré Purificador de aire empotrado PleaSe read theSe InStrUCtIonS beFore USe. do not dISCard: keeP For FUtUre reFerenCe. veUIllez lIre CeS InStrUCtIonS avant d’UtIlISer l’aPPareIl. ne PaS jeter : ConServer aFIn de ConSUlter leS dIreCtIveS UltérIeUreMent, en CaS de beSoIn.

  • Page 7: Product Specifications

    ENGLISH *For a copy of the manual please visit www.fellowes.com IMPORTANT SAFETY INSTRUCTIONS — READ AND SAVE THESE INSTRUCTIONS Read carefully before attempting to assemble, install, operate or maintain this product. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage.
  • Page 8 CONTROLS NOTE: To access unit controls, open unit door by depressing the door latch button and pulling downward POWER – CARBON FILTER – Press - sets the unit to OFF or ON mode. power button is ON. R button is for Right side. HEPA FILTER –...

  • Page 9: Filter Change Procedure

    WIRELESS CONNECTION – GETTING STARTED This product has additional features that are only available when using the online dashboard. To get started, please visit www.arrayviewpoint.fellowes.com MAINTENANCE AND CLEANING Power down machine before starting maintenance.

  • Page 10: Troubleshooting

    Fellowes reserves the right to charge the consumer for any additional cost occurred by Fellowes to provide parts or service outside of the designated service personnel, Fellowes reserves the right to supply the customer with replacement parts or product in full satisfaction of its shall Fellowes be liable for any consequential, incidental, indirect or special damages.
