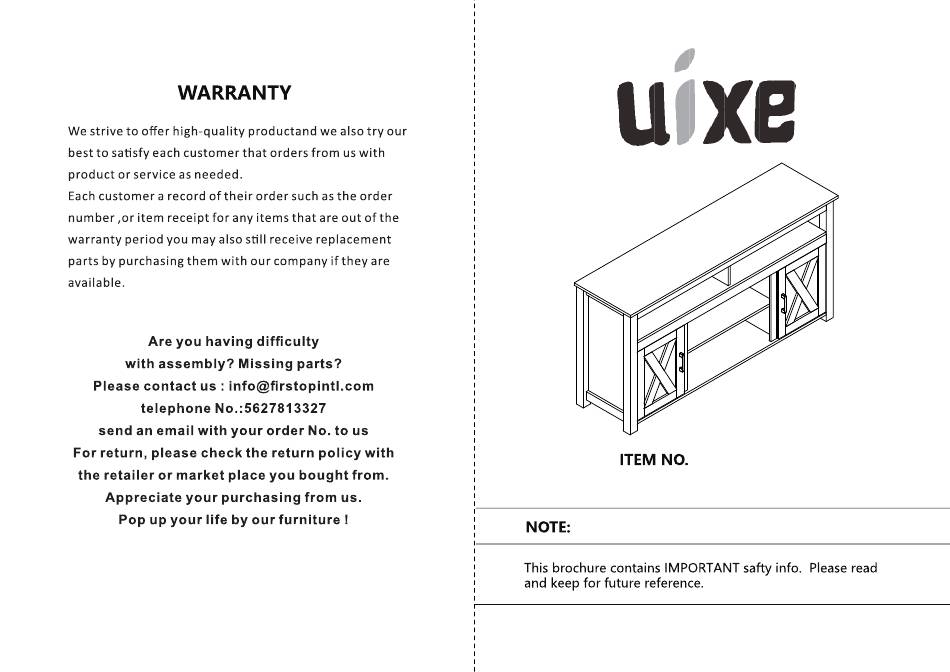

- Page 1 TV STAND-05...
- Page 2 ATTENTION 1. A person who is proficient in assembly can work alone, if not, please ask someone to cooperate with this job. 2. When assembling the parts, please follow the orders, methods and positions of the assembly instruction. If meeting any difficulties, please check with the instruction carefully first. 3.
- Page 3 Top panel Front bar Door Fixed shelf Lower left Lower right Right side Upper middle panel panel panel panel Middle leg Left vertical bar Right vertical bar Left side panel 400LBS Upper back Bottom panel Middle back panel Side back panel panel...
- Page 4 Support Bolt Wood dowel Eccentric Middle adjustable Side adjustable shelf Right front leg shelf M4 X 12mm Metal plate M3.5 X 14mm Hinge Screw Screw Right back leg Left front leg Left back leg Handle M5 X 40mm Board clasp M4 X 20mm Screw Screw...
- Page 5 B X5 Eccentric Wood dowel Bolt M4 X 12mm M3.5 X 14mm M4 X 20mm Screw Screw Screw M5 X 40mm M4 X 32mm Screw Screw STEP 1 Insert bolts A into the panel , tighten with allen key.
- Page 6 STEP 2 Insert bolts A into the panel , tighten with allen key. STEP 3 Do as the above instruction. Insert wood dowels C into the settled holes on panel and bar . Put the eccentrics B into the settled holes on bar .
- Page 7 put the panel on clean padded surface. Insert bolts A into the settled holes on the panel as instruction. STEP 4 Tighten with allen key.
- Page 8 STEP 5 STEP 6 Do as the above instruction. Insert wood dowels C into the Do as the above instruction. Insert wood dowels C into the settled holes on panel and bar . Put the eccentrics B into settled holes on panel and bar .
- Page 9 STEP 8 Put the panel into the rail trough accordingly as instruction. STEP 7 Do as the above instruction. Insert wood dowels C into the settled holes on panels Insert eccentrics B on panels accordingly. Align the other side of bolts A with the breach of eccentrics B, tighten them with allen key.
- Page 10 STEP 9 Insert bolts A into panel , tighten with allen key. Connect bottom panel to assembled part with a wood STEP 10 dowels C. Tighten Screw K with allen key.
- Page 11 STEP 12 STEP 11 Place the assembled part on clean padded surface, insert Start from the edge to the middle, push the panels into wood dowels C accordingly. the rail trough accordingly. Insert screws K through panel to connect panel Do as the above instruction.
- Page 12 Insert bolts A into legs , tighten with screwdriver. Connect legs to panel with a wood dowels C. STEP 13 STEP 14 Turn over it to the right and insert bolts A with screwdriver. Tighten eccentrics B with screwdriver.
- Page 13 Insert bolts A into legs , tighten with allen key. Connect legs to panel with wood dowels C. STEP 15 STEP 16 Turn over it to the right and insert bolts A with allen key. Tighten eccentrics B with allen key.
- Page 14 Note: For this step, there are some difficulties aligning so many settled holes, so please be more patient and peaceful. STEP 17 settled holes on panel and assembled part. Do as the above instruction. Insert wood dowels C into the Insert eccentrics B on panels accordingly.
- Page 15 STEP 18 Do as the above instruction. Insert wood dowels C into the settled holes on panel and bar Insert eccentrics B on panels accordingly. Align the other side of bolts A on panel with the breach of eccentrics B, tighten them with allen key.
- Page 16 STEP 19 Do as the above instruction. Insert wood dowels C into the settled holes on panel and the assembled part. Insert eccentrics B on assembled part accordingly. Align the other side of bolts A on panel with the breach of eccentrics B, tighten them with allen key.
- Page 17 STEP 20 Put the panels into the rail trough accordingly as instruction.
- Page 18 STEP 21 Insert bolts A into top panel , tighten with allen key. Connect metal plate F to the top panel . 80% tighten them with screws E.
- Page 19 Insert the supports D into the settled holes in the stand STEP 23 STEP 22 Connect top panel to assembled part with a wood as instruction, place the shelves accordingly. dowels C. Tighten eccentrics B 。...
- Page 20 STEP 25 STEP 24 Connect handles I to the panel , tighten with screws J. Do as the above instruction. Insert screws G into the Connect hinges H to the panel , tighten with screws G. settled holes on doors and assembled part, tighten with allen key.
- Page 21 STEP 27 Measure the holes distance of metal plates F, drill the holes STEP 26 Do as the above instruction. Fasten the board clasps L accordingly in the wall. Insert the expanable plastic screws M on each corner accordingly, tighten with screws G. into the wall.
