Summary of Contents for Uixe TV STAND-03

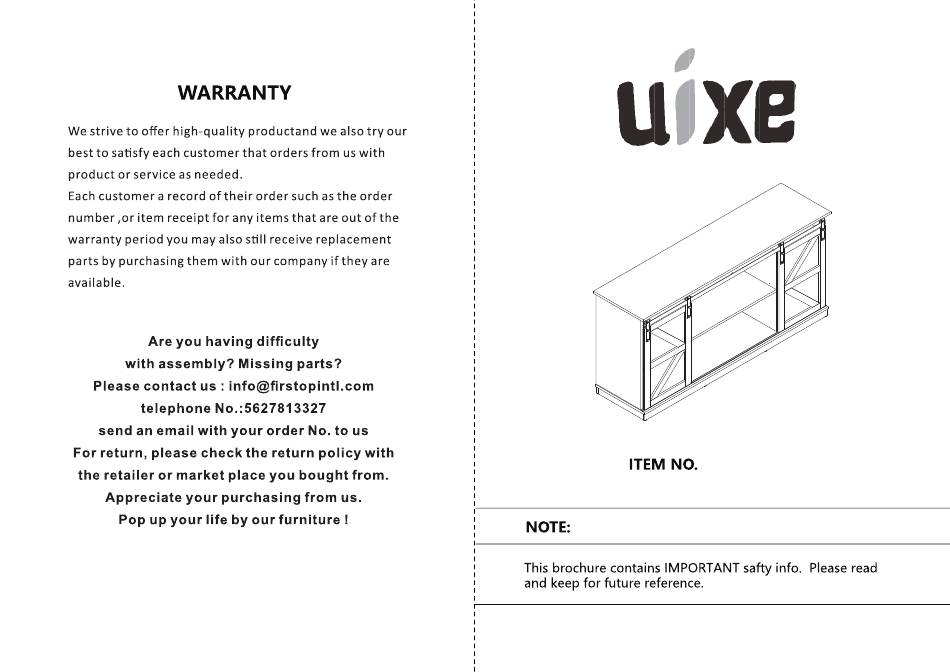

- Page 1 TV STAND-03...
- Page 2 ATTENTION 1. A person who is proficient in assembly can work alone, if not, please ask someone to cooperate with this job. 2. When assembling the parts, please follow the orders, methods and positions of the assembly instruction. If meeting any difficulties, please check with the instruction carefully first. 3.
- Page 3 Right side panel Left side panel Top panel Front bar Lower bar Lower side bar Bottom panel Right vertical panel Side back panel Left door Left vertical panel Right door 400LBS Side adjustable shelf Middle adjustable shelf Middle back panle...
- Page 4 M4 X 12mm Wood dowel Wood dowel Bolt Eccentric Support Eccentric Support Bolt Screw M4 X 12mm M6 X 12mm Screw nut Metal bar M6 X 12mm Screw nut M6 X 25mm Metal plate Roller set Screw Screw Bolt Bolt Board clasp M3.5 X 14mm M6 X 25mm...
- Page 5 STEP 2 STEP 2 STEP 1 STEP 2 Do as the above instruction. Align the settled holes on bar Do as the above instruction. and G . Insert screws K through thees holes. Fix screws H and screw nuts I into metal bar G, tighten Tighten with allen key U.
- Page 6 STEP 3 STEP 4 STEP 4 Do as the above instruction. STEP 4 Do as the above instruction. Insert wood dowels C into the Insert bolts A onto the settled holes on panels settled holes on panel and assembled part. Put the eccentrics B into the settled holes on bar .
- Page 7 NOTE: This side should be with more settled holes. put the panel on clean padded surface. Insert bolts A into the settled holes on the panel as instruction. Tighten with allen key. STEP 5 Fix metal plates F onto the panel .
- Page 8 Note: For this step, carefully align the holes on the panels as instruction. STEP 6 Do as the above instruction. Insert wood dowels C into the settled holes on the assembled part of last step and panel Put the eccentrics B into the settled holes accordingly. Align the other side of bolts A with the breach of eccentrics B. Tighten them with allen key.
- Page 9 NOTE: After this step, all the wood troughs on the panels are aligned. NOTE: The panels may not very fixed after this steps. Don't worry, they will be assembled tightly on next steps. STEP 9 STEP 10 STEP 7 Do as the above instruction. Insert wood dowels C into the STEP 8 Do as the above instruction.
- Page 10 NOTE: This side should be with more settled holes. put the panel on clean padded surface. Insert bolts A into the settled holes on the panel as instruction. STEP 10 STEP 9 STEP 12 STEP 12 Tighten with allen key.
- Page 11 STEP 11 STEP 10 STEP 10 Do as the above instruction. Insert the wood dowels C Do as the above instruction. Insert bolts A into the settled holes on bar . There are two bars, do the same way. into the settled holes on panel Put the panel on the assembled part with aligned holes.
- Page 12 NOTE: It is better to complete this step by two persons, NOTE: Turn the bar upright on the side with settled holes. so that the wood frame will not loosen. STEP 10 STEP 12 STEP 10 STEP 13 Do as the above instruction. Place bars as above.
- Page 13 STEP 15 Insert the supports D into the settled holes in the stand STEP 14 STEP 10 Do as the above instruction. Upside down the assembled part. as instruction, place the shelves accordingly. Fasten the board clasps N on each corner accordingly, tighten with screws O.
- Page 14 place the doors into the corresponding troughs STEP 17 STEP 16 Insert the plastic axles L into the settled holes on the doors on the assembled part, pay attention to the sides of the doors. as instruction.
- Page 15 STEP 18 STEP 19 Hang roller sets J onto the bar G, align the settled holes Measure the holes distance of metal plates F, drill the holes on roller sets J and the top of the doors. accordingly on the wall. Insert the expanable plastic Fix roller sets J and doors with screws K and screw nuts I.
