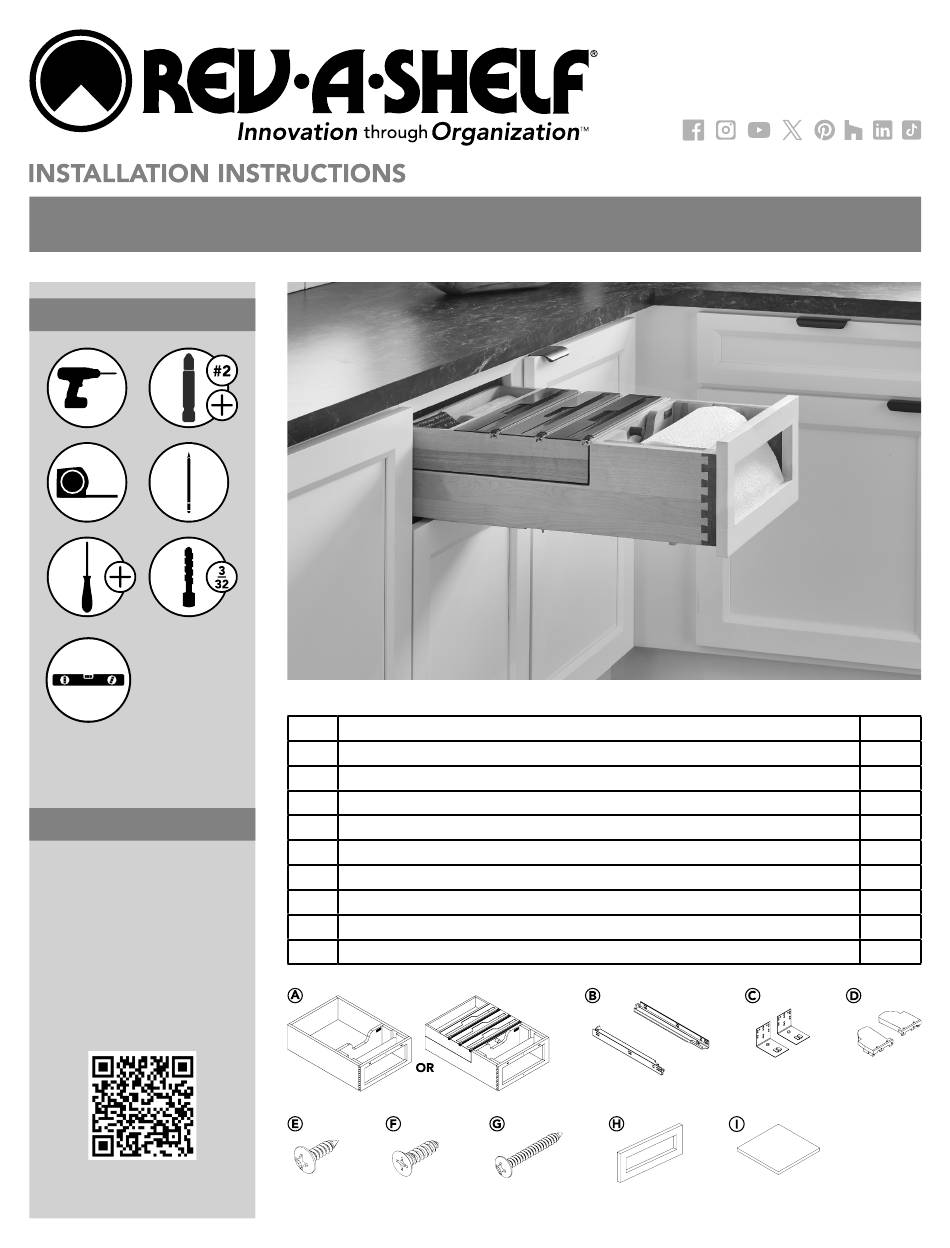

PAPER TOWEL DRAWER
TOOLS REQUIRED:
CARE AND MAINTENANCE:
Clean with a damp cloth and
wipe parts dry.
WATCH TUTORIALS OF OUR
PRODUCTS BEING INSTALLED
WWW.REV-A-SHELF.COM/VIDEOS
No.
A
B
C
D
E
F
G
H
I
INSTALLATION INSTRUCTIONS: PAPER TOWEL DRAWER
PARTS LIST
Description
Paper Towel Drawer Box
Left & Right BLUM Slides
Rear BLUM Brackets
Left & Right BLUM Locking Devices
#6 x 1/2" Phillips Pan Head Deep Thread Screws
#8 x 5/8" Phillips Flat Head Screws
#6 x 1-1/8" Phillips Pan Head Screws
Beauty Ring/Template
Double-Side Tape
12400 Earl Jones Way
Louisville, KY 40299
rev-a-shelf.com
Customer Service: 800-626-1126
Qty.
1
1
2
1
4
10
4
1
4
I-4PTD-0125
Advertisement
Related Manuals for Rev-A-Shelf 4PTD-18HSC-1
Summary of Contents for Rev-A-Shelf 4PTD-18HSC-1
- Page 1 12400 Earl Jones Way Louisville, KY 40299 rev-a-shelf.com Customer Service: 800-626-1126 PAPER TOWEL DRAWER TOOLS REQUIRED: PARTS LIST Description Qty. Paper Towel Drawer Box Left & Right BLUM Slides Rear BLUM Brackets CARE AND MAINTENANCE: Left & Right BLUM Locking Devices #6 x 1/2”...
- Page 2 (See Fig. 2). 7-1/2” (190.5 mm) FOR STEP 3, PROCEED BASED ON THE CABINET TYPE AND APPLICATION. 3A: FACE FRAME 3B: FRAMELESS 3C: INSET FACE FRAME 3D: INSET FRAMELESS Customer Service: 800-626-1126 | rev-a-shelf.com...
- Page 3 FIG. 3A FACE FRAME STEP 3A Connect the Rear BLUM Brackets to the back of the slides in their fully closed position. Align the bottom of the slides with the mark made in 1/8” (3 mm) Step 2. slide setback from the front of the face frame Set the front of the slides back 1/8”...
- Page 4 Attach both the Left and Right BLUM Slides to the walls of the frameless cabinet using (3) #8 x 5/8” Phillips Flat Head Screws for each side, ensuring they are level after fastening the first screw (See Fig. 3D). Customer Service: 800-626-1126 | rev-a-shelf.com...
- Page 5 FIG. 4 STEP 4 Place the Wood Frame on the slides and push the drawer in to latch the slides onto the Locking Devices. The drawer box will make a “click” sound when it is fully engaged (See Fig. 4). FIG.
- Page 6 Wood Frame. Be careful not to drill through the drawer front. Drive (2) #6 x 1-1/8” Phillips Pan Head Screws into the drawer front to complete the installation (See Fig. 7). Customer Service: 800-626-1126 | rev-a-shelf.com...
- Page 7 12400 Earl Jones Way Louisville, KY 40299 rev-a-shelf.com Customer Service: 800-626-1126 CAJÓN DE TOALLAS DE PAPEL PAPER / TIROIR POUR ESSUIE-MAINS EN PAPIER HERRAMIENTAS REQUERIDAS: OUTILS REQUIS: LISTA DE PIEZAS / LISTE DES PIÈCES Descripción / La description Qty. Cajón para toallas de papel / Boîte à tiroirs pour essuie-tout Guías BLUM izquierda y derecha / Glissières BLUM gauche et droit...
- Page 8 3A: MARCO FRONTAL 3A : CADRE FRONTAL : 3B: SIN MARCO 3B : SANS CADRE 3C: MARCO FRONTAL EMPO- TRADO 3C : CADRE FRONTAL ENCASTRÉ : 3D: EMPOTRADO SIN MARCO 3D : CONSTRUIT SANS CADRE Customer Service: 800-626-1126 | rev-a-shelf.com...
- Page 9 CADRE FRONTAL FIG. 3A MARCO FRONTAL PASO 3A CADRE FRONTAL ÉTAPE 3A Conecte los soportes BLUM traseros a la parte posterior de las guías en 1/8” (3 mm) su posición totalmente cerrada. Alinee la parte inferior de las guías con la de retroceso de la guía marca realizada en el paso 2.
- Page 10 à l’aide de (3) vis à tête plate cruciformes # 8 x 5/8 po de chaque côté en vous assurant qu’elles sont de niveau après avoir fixé la première vis (Voir Fig. 3D). Customer Service: 800-626-1126 | rev-a-shelf.com...
- Page 11 FIG. 4 PASO 4 / ÉTAPE 4 Coloque el marco de madera sobre las guías y empuje el cajón hacia dentro para encajar las guías en los dispositivos de bloqueo. El cajón emitirá un sonido de “clic” cuando esté completamente encajado (ver Fig. 4). Placez le cadre en bois sur les glissières et poussez le tiroir vers l’intérieur pour verrouiller les glissières sur les dispositifs de verrouillage.
- Page 12 Veillez à ne pas percer à travers l’avant du tiroir. Enfoncez (2) #6 x vis cruciformes à tête cylindrique de 1-1/8 po dans la façade du tiroir pour terminer l’installation (voir Fig. 7). Customer Service: 800-626-1126 | rev-a-shelf.com...
