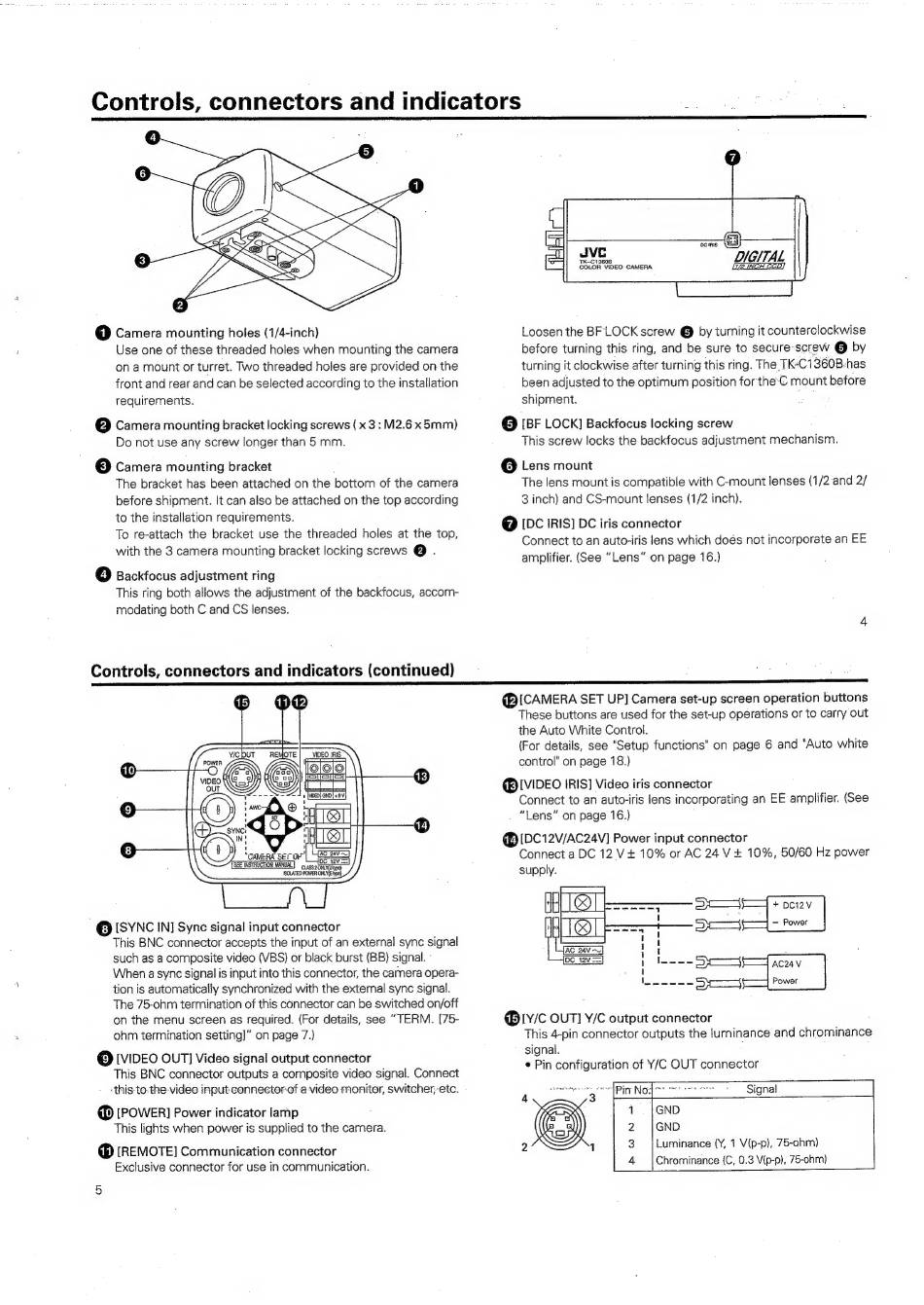

Controls, connectors and indicators
@ Camera mounting holes (1/4-inch)
Use one of these threaded holes when mounting the camera
on a mount or turret. Two threaded holes are provided on the
front and rear and can be selected according to the installation
requirements.
© Camera mounting bracket locking screws (x 3: M2.6 x 5mm)
Do not use any screw longer than 5 mm.
(3) Camera mounting bracket
The bracket has been attached on the bottom of the camera
before shipment. It can also be attached on the top according
to the installation requirements.
To re-attach the bracket use the threaded holes at the top,
with the 3 camera mounting bracket locking screws @ .
4) Backfocus adjustment ring
This ring both allows the adjustment of the backfocus, accom-
modating both C and CS lenses.
Controls, connectors and indicators (continued)
°
YICDUT REMOTE VIDEO IRIS
POW! a ZeN\\, |||
vipgo WS 2 Foor } eSUe=TeS
OUT LY) Leal
———- 4
: AC 24V ~
SEENSTRUCHON MANU) 9 cope
ISOLATED POWER ONLYCE pe]
3] [SYNC IN] Sync signal input connector
This BNC connector accepts the input of an external sync signal
such as a composite video (VBS) or black burst (BB) signal.
When a sync signal is input into this connector, the camera opera-
tion is automatically synchronized with the external sync signal.
The 75-ohm termination of this connector can be switched on/off
on the menu screen as required. (For details, see "TERM. [75-
ohm termination setting]" on page 7.)
@ [VIDEO OUT] Video signal output connector
This BNC connector outputs a composite video signal. Connect
-this tothe video input: connector-of a: video monitor, switcher-etc. -
@ [POWER] Power indicator lamp
This lights when power is supplied to the camera.
® [REMOTE] Communication connector
Exclusive connector for use in communication.
DIGITAL
TK-C13608
COLOR VIDEO CAMERA
Loosen the BFLOCK screw @ by turning it counterclockwise
before turning this ring, and be sure to secure-screw @ by
turning it clockwise after turning this ring. The. TK-C1360B-has
been adjusted to the optimum position for the€ mount before
shipment. ;
@ [BF LOCK] Backfocus locking screw
This screw locks the backfocus adjustment mechanism.
e Lens mount
The lens mount is compatible with C-mount lenses (1/2 and 2/
3 inch) and CS-mount lenses (1/2 inch).
@ IDC IRIS] DC iris connector
Connect to an auto-iris lens which doés not incorporate an EE
amplifier. (See "Lens" on page 16.)
@ICAMERA SET UP] Camera set-up screen operation buttons
These buttons are used for the set-up operations or to carry out
the Auto White Control.
(For details, see "Setup functions" on page 6 and "Auto white
control" on page 18.)
®IVIDEO IRIS] Video iris connector
Connect to an auto-iris lens incorporating an EE amplifier. (See
"Lens" on page 16.)
@IDC12V/AC24V] Power input connector
Connect a DC 12 V+ 10% or AC 24 V + 10%, 50/60 Hz power
supply.
EE Do + civ
fo). ET | Sm - Power
Dio aczav
pes), ae POR Power
@®Iy/c OUT] Y/C output connector
This 4-pin connector outputs the luminance and chrominance
signal.
* Pin configuration of Y/C OUT connector
Signal
GND
GND.
Luminance (Y, 1 V(p-p), 75-ohm)
Chrominance ({C, 0.3 Vip-p), 75-ohm)
