Header Name
Function
Definition

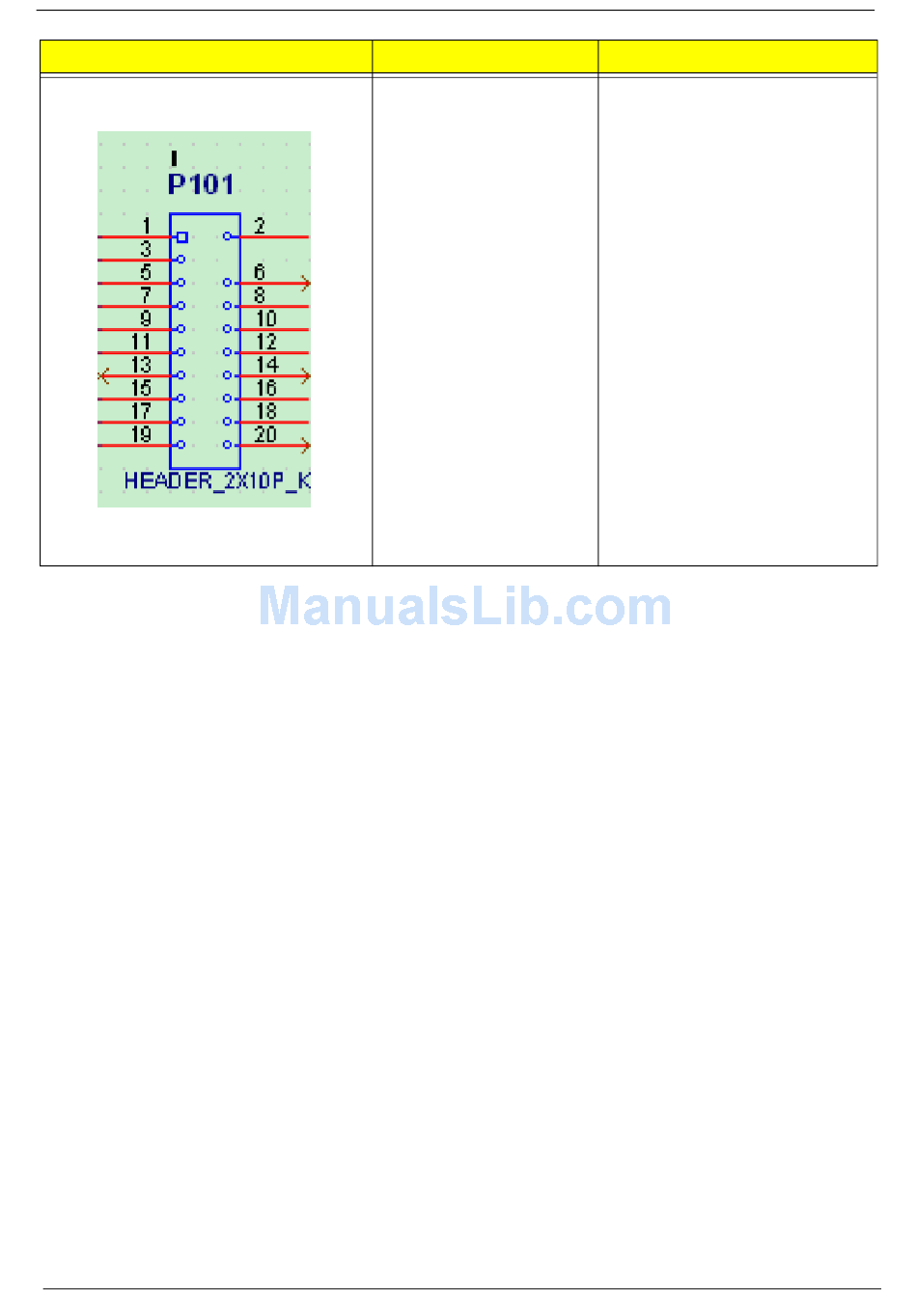

TPM HEADER
1: CK_33M_TPM
2: GND
3: LFRAME#
4: KEY
5: PLTRST#
6: NC
7: LAD3
8: LAD2
9: +3P3V
10: LAD1
11: LAD0
12: GND
13: NC
14: NC
15: +3P3VSB
16: SERIRQ
17: GND
18: F_CLKRUN#
19: LPCPD#
20: NC
100
