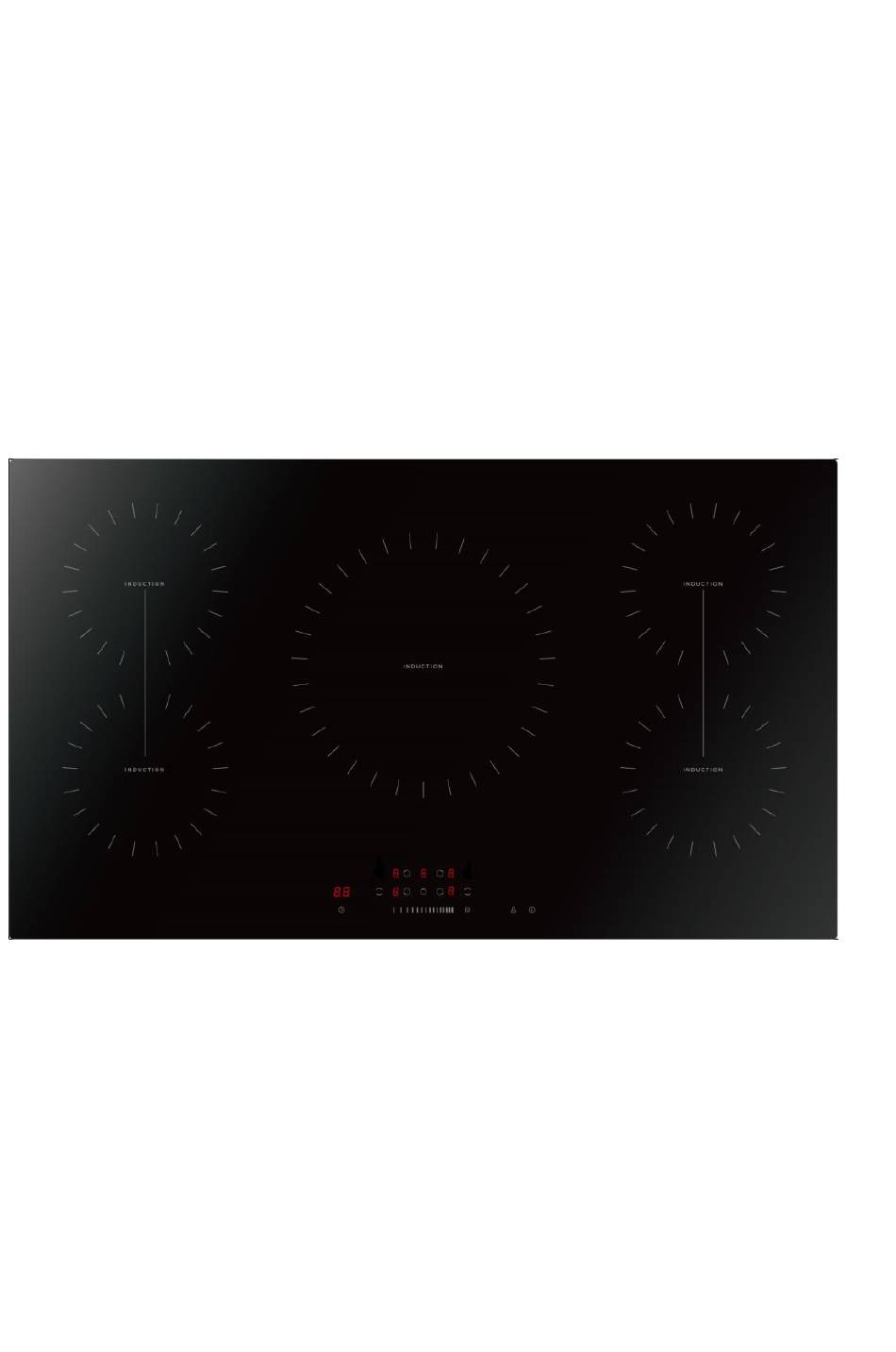

- Page 1 Induction Hob Instruction Manual / Installation Manual MODEL: KÖLN904IBS...
-
Page 2: Safety Warnings
Safety Warnings Your safety is important to us. Please read this information before using your cooktop. Installation Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. • Connection to a good earth wiring system is essential and mandatory. - Page 3 installation. • This appliance is to be properly installed and earthed only by a suitably qualified person. • This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply. • Failure to install the appliance correctly could invalidate any warranty or liability claims.
- Page 4 appliance or sit, stand, or climb on it. • Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured. • Do not leave children alone or unattended in the area where the appliance is in use.
- Page 5 replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments;...
-
Page 6: Health Hazard
but switch off the appliance and then cover flame e.g. with a lid or a fire blanket. • WARNING: Danger of fire: do not store items on the cooking surfaces. • Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts... - Page 7 • However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that their implants will not be affected by the electromagnetic field. •...
-
Page 8: Product Overview
Congratulations on the purchase of your new Induction Hob. We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it. For installation, please read the installation section. Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference. -
Page 9: A Word On Induction Cooking
A Word on Induction Cooking Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up. iron pot magnetic circuit ceramic glass plate... -
Page 10: Choosing The Right Cookware
Choosing the right Cookware • Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan. • You can check whether your cookware is suitable by carrying out a magnet test. -
Page 11: Using Your Induction Hob
Using your Induction Hob To start cooking 1. Touch the ON/OFF control for a while. After power on, the buzzer beeps once, all displays show “ – “ or “ – – “, indicating that the induction hob has entered the state of standby mode. 2. -
Page 12: When You Have Finished Cooking
If the display flashes alternately with the heat setting • you have not placed a pan on the correct cooking zone or, • the pan you’re using is not suitable for induction cooking or, • the pan is too small or not properly centered on the cooking zone. No heating takes place unless there is a suitable pan on the cooking zone. -
Page 13: Using The Boost Function
energy saving function if you want to heat further pans, use the hotplate that is still hot. Using the Boost function Actived the boost function 1. Touching the heating zone selection control 2. Touching the boost control “ ”, the zone indicator show “b” and the power reach Max. -
Page 14: Flexible Area
• The function can work in any cooking zone • The cooking zone returns to its original setting after 5 minutes. • If the original heat setting equals 0, it will return to 9 after 5 minutes. FLEXIBLE AREA • This area can be used as a single zone or as two different zones, accordingly to the cooking needs anytime. - Page 15 We don’t recommend other operations except for above mentioned three operations because it might effect the heating of appliance As two independent zones To use the flexible area as two different zones, you can have two choices of heating. of the (a) Put a pan on the right up side or the right down side flexible zone.
-
Page 16: Locking The Controls
Locking the Controls • You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on). • When the controls are locked, all the controls except the ON/OFF control are disabled. To lock the controls Touch the keylock control. -
Page 17: Using The Timer As A Minute Minder
People with a heart pace maker should consult with their doctor before using this unit. Using the Timer You can use the timer in two different ways: • You can use it as a minute minder. In this case, it will not turn any cooking zone off when the set time is up. -
Page 18: Setting The Timer To Turn One Or More Cooking Zones Off
minutes. 6. When the time is set, it will begin to count down immediately. The display will show the remaining time 7.Buzzer will beep for 30 seconds and the timer indicator shows “- - “ when the setting time finished. Setting the timer to turn one or more cooking zones If the timer is set on one zone: 1. - Page 19 4. Touch timer control again, the “1” will flash. 5. set the time by touching the slider control (e.g.9), now the timer you set is 95 minutes. 5. When the time is set, it will begin to count down immediately. The display will show the remaining time NOTE: The red dot next to power level indicator will illuminate indicating that zone is selected.
-
Page 20: Cooking Guidelines
2. Once the countdown timer expires, the corresponding zone will switch off. Then it will show the new min. timer . • Touch the heating zone selection control, the corresponding timer will be shown in the timer indicator. Cancelled the timer 1. - Page 21 • Using a lid will reduce cooking times and save energy by retaining the heat. • Minimise the amount of liquid or fat to reduce cooking times. • Start cooking on a high setting and reduce the setting when the food has heated through.
-
Page 22: Heat Settings
Heat Settings The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the induction hob to find the settings that best suit you. Heat setting Suitability •... -
Page 23: Hints And Tips
Boilovers, melts, Remove these immediately • Remove stains left by melts and with a fish slice, palette knife or sugary food or spillovers as soon hot sugary spills on razor blade scraper suitable for as possible. If left to cool on the the glass Induction glass cooktops, but glass, they may be difficult to... -
Page 24: Failure Display And Inspection
The touch controls are There may be a slight film of Make sure the touch control area is difficult to operate. water over the controls or you dry and use the ball of your finger may be using the tip of your when touching the controls. -
Page 25: Technical Specification
Problem Possible causes What to do F3-F8 Temperature sensor failure Please contact the supplier. F9-FE Please contact the supplier. Temperature sensor of the IGBT failure. E1/E2 Abnormal supply voltage Please inspect whether power supply is normal. Power on after the power supply is normal. - Page 26 L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm) 50 min。 870+4 Under any circumstances, make sure the Induction cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the Induction cooker hob is in good work state. As shown below Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm.
-
Page 27: Before Locating The Fixing Brackets
Before you install the hob, make sure that • the work surface is square and level, and no structural members interfere with space requirements • the work surface is made of a heat-resistant material • if the hob is installed above an oven, the oven has a built-in cooling fan •... -
Page 28: Connecting The Hob To The Mains Power Supply
Cautions 1. The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. 2. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics 3. - Page 29 • If the cable is damaged or to be replaced, the operation must be carried out the by after-sale agent with dedicated tools to avoid any accidents. • If the appliance is being connected directly to the mains an omnipolar circuit-breaker must be installed with a minimum opening of 3mm between contacts.
