  • Page 1 Induction Hob Instruction Manual / Installation Manual MODEL: KÖLN774IBS...

  • Page 2: Safety Warnings

    Safety Warnings Your safety is important to us. Please read this information before using your cooktop. Installation Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. • Connection to a good earth wiring system is essential and mandatory.
  • Page 3 installation. • This appliance is to be properly installed and earthed only by a suitably qualified person. • This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply. • Failure to install the appliance correctly could invalidate any warranty or liability claims.
  • Page 4 appliance or sit, stand, or climb on it. • Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured. • Do not leave children alone or unattended in the area where the appliance is in use.
  • Page 5 hazard. •This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments ; -bed and breakfast type environments.
  • Page 6 •WARNING: Danger of fire: do not store items on the cooking surfaces. • Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts •A steam cleaner is not to be used.
  • Page 7 implant manufacturer before using this appliance to make sure that their implants will not be affected by the electromagnetic field. • Failure to follow this advice may result in death. Hot Surface Hazard • During use, accessible parts of this appliance will become hot enough to cause burns.

  • Page 8: Product Overview

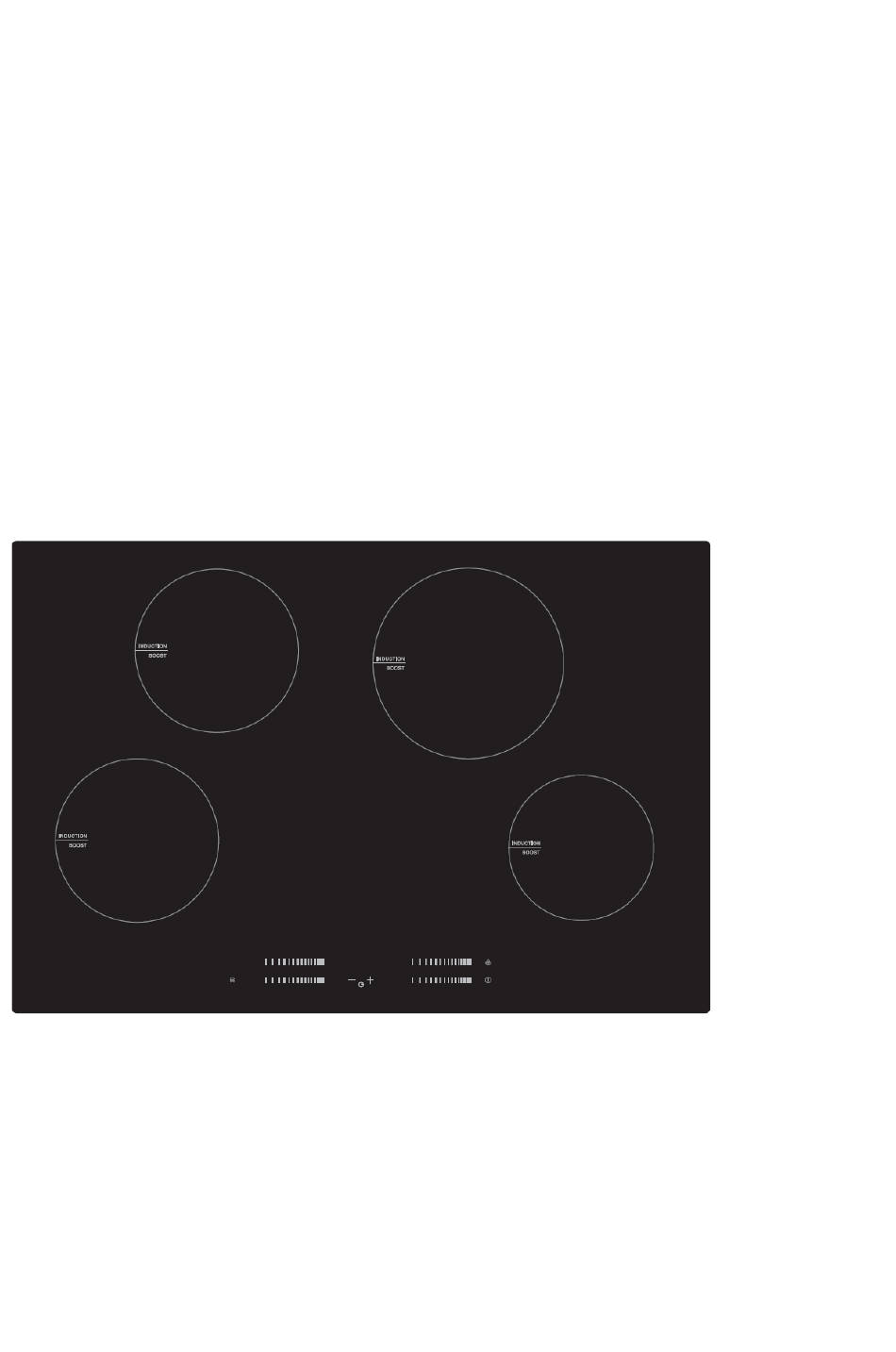

    Congratulations on the purchase of your new Induction Hob. We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it. For installation, please read the installation section. Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference.

  • Page 9: A Word On Induction Cooking

    A Word on Induction Cooking Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up. iron pot magnetic circuit ceramic glass plate...

  • Page 10: Choosing The Right Cookware

    Choosing the right Cookware • Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan. • You can check whether your cookware is suitable by carrying out a magnet test.

  • Page 11: Using Your Induction Hob

    Using your Induction Hob To start cooking 1. Touch the ON/OFF control. After power on, the buzzer beeps once, all displays show “ – “ or “ – – “, indicating that the induction hob has entered the state of standby mode. 2.

  • Page 12: When You Have Finished Cooking

    If the display flashes alternately with the heat setting • you have not placed a pan on the correct cooking zone or, • the pan you’re using is not suitable for induction cooking or, • the pan is too small or not properly centered on the cooking zone. No heating takes place unless there is a suitable pan on the cooking zone.

  • Page 13: Using The Boost Function

    Using the Boost function Actived the boost function 1. Touching the heating zone slider control 2. Touching the boost control “ ”,the zone indicator show “b.” and the power reach Max. Cancel the Boost function 1. Touching the heating zone slider control that you wish to cancel the boost function 2.

  • Page 14: Locking The Controls

    Locking the Controls • You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on). • When the controls are locked, all the controls except the ON/OFF control are disabled. To lock the controls Touch the keylock control.

  • Page 15: Using The Timer As A Minute Minder

    People with a heart pace maker should consult with their doctor before using this unit. Using the Timer You can use the timer in two different ways: • You can use it as a minute minder. In this case, it will not turn any cooking zone off when the set time is up.
  • Page 16 5. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator will flash for 5 seconds. 6.Buzzer will beep for 30 seconds and the timer indicator shows “- - “ when the setting time finished. Setting the timer to turn one or more cooking zones If the timer is set on one zone: 1.
  • Page 17 4. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator flash for 5 seconds. NOTE: The red dot next to power level indicator will illuminate indicating that zone is selected. 5.

  • Page 18: Cooking Guidelines

    2. Once the countdown timer expires, the corresponding zone will switch off. Then it will show the new min. timer and the dot of corresponding zone will flash. • Touch the heating zone silide control, the corresponding timer will be shown in the timer indicator.

  • Page 19: Heat Settings

    • When food comes to the boil, reduce the temperature setting. • Using a lid will reduce cooking times and save energy by retaining the heat. • Minimise the amount of liquid or fat to reduce cooking times. • Start cooking on a high setting and reduce the setting when the food has heated through.

  • Page 20: Care And Cleaning

    The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the induction hob to find the settings that best suit you. Heat setting Suitability • delicate warming for small amounts of food 1 - 2 •...

  • Page 21: Hints And Tips

    Boilovers, melts, Remove these immediately • Remove stains left by melts and with a fish slice, palette knife or sugary food or spillovers as soon hot sugary spills on razor blade scraper suitable for as possible. If left to cool on the the glass Induction glass cooktops, but glass, they may be difficult to...

  • Page 22: Failure Display And Inspection

    The touch controls are The controls are locked. Unlock the controls. See section unresponsive. ‘Using your induction cooktop’ for instructions. The touch controls are There may be a slight film of Make sure the touch control area is difficult to operate. water over the controls or you dry and use the ball of your finger may be using the tip of your...

  • Page 23: Technical Specification

    If an abnormality comes up, the induction hob will enter the protective state automatically and display corresponding protective codes: Problem Possible causes What to do F3-F8 Temperature sensor failure Please contact the supplier. F9-FE Please contact the supplier. Temperature sensor of the IGBT failure.
  • Page 24 heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. As shown below: L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm) 50 mini Under any circumstances, make sure the Induction cooker hob is well ventilated and the air inlet and outlet are not blocked.

  • Page 25: Before Locating The Fixing Brackets

    Before you install the hob, make sure that • the work surface is square and level, and no structural members interfere with space requirements • the work surface is made of a heat-resistant material • if the hob is installed above an oven, the oven has a built-in cooling fan •...

  • Page 26: Connecting The Hob To The Mains Power Supply

    Cautions 1. The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. 2. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics 3.
  • Page 27 The power supply should be connected in compliance with the relevant standard,or a single-pole circuit breaker.the method of connection is shown below. • If the cable is damaged or to be replaced, the operation must be carried out the by after-sale agent with dedicated tools to avoid any accidents. •...
  • Page 28 necessary. the product.
