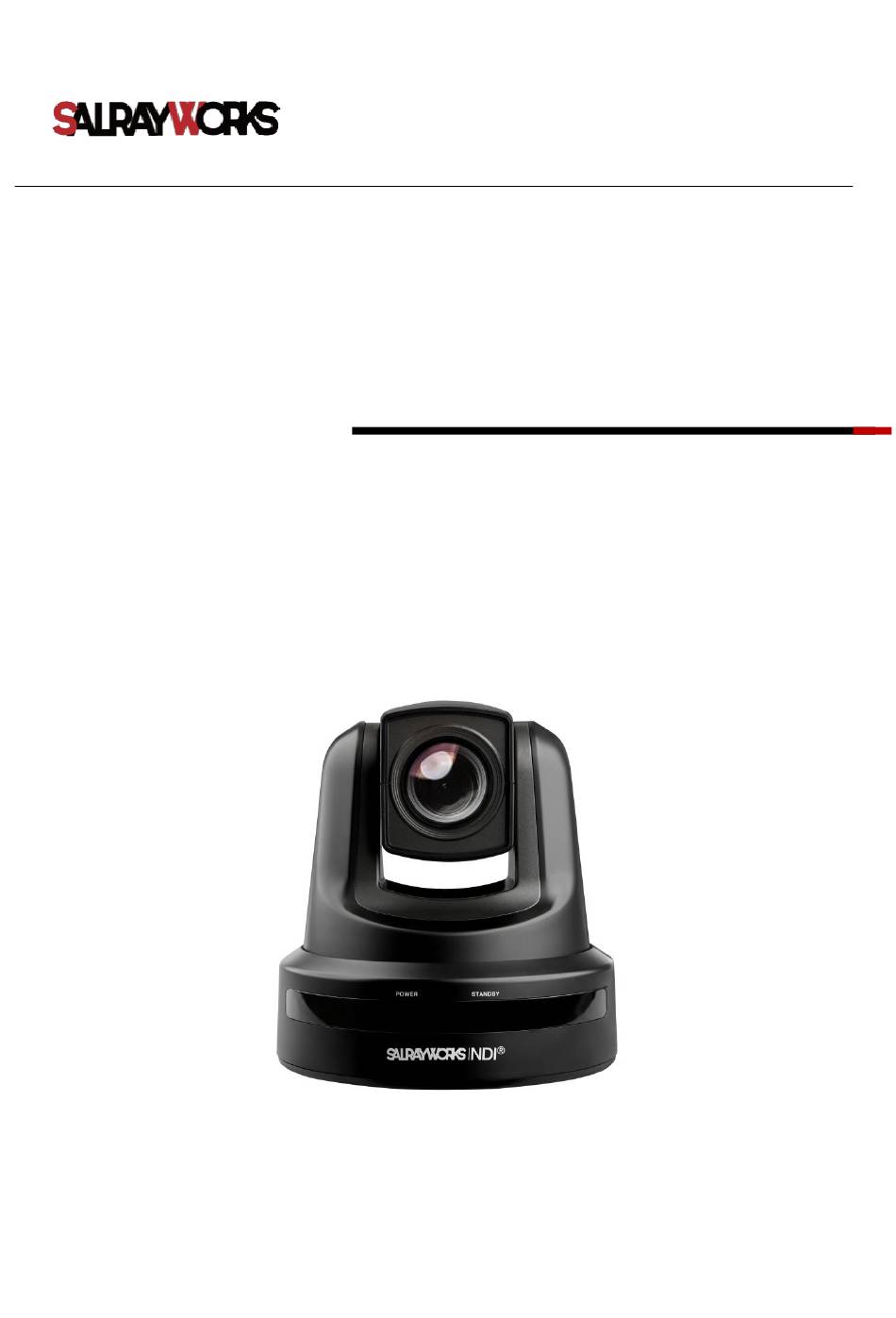

  • Page 1 High Bandwidth full NDI PTZ User Manual Ver 1.00...

  • Page 2: Table Of Contents

    Contents Caution ............................ 4 Introduction ..........................6 Features ............................6 Products & Accessories ........................8 Ceiling Mount Bracket (ZCB-100) Installation ..................9 Wall Mount Bracket (ZWB-200) Installation ..................10 Installation ..........................11 Camera Address-ADRESS Setup ..................... 12 ① Communication Protocol-PROTOCOL Setup ................12 ②...
  • Page 3 PT Speed Setup ........................30 Home Position Setup ......................30 North Direction Setup ......................30 Preset Setting ........................31 Edit Scene- Preset Setup ......................31 Edit Label-Preset Setup ......................32 Swing Setup .......................... 32 Pattern Setup ......................... 33 Group Setup .......................... 33 Edit Group-Group Setup ......................

  • Page 4: Caution

    Caution Caution Don’t open. There may be electric shock. To avoid the risk of electric shock, do not arbitrarily open the cover or disassemble the Caution product. There are no user serviceable replacement parts. Get service from qualified service personnel. This lightning flash with arrowhead symbol is intended to alert the user to the presence of un-insulated "dangerous voltage"...

  • Page 5: Safety Precautions

    Safety Precautions Read all of the safety and operating instructions before using the product.  Save these instructions for future reference.   Do not use attachments or accessories unless recommended by the appliance manufacturer as they may cause hazards, damage product and void warranty. Do not use this product near water or moisture.

  • Page 6: Introduction

    Introduction Features Optical x20/X30 Zoom Lens SHARON 20 : 1/2.8 inch, 2.12 mega pixels "Exmor R" CMOS Sensor Supports Max. x20 including digital x12 zoom SHARON 30 : 1/2.8 inch, 2.38 mega pixels “Exmor R“ CMOS Sensor Sony Zoom Module Supports Max.
  • Page 7 Powerful Pan/ Tilt Function Pan: -172˚~ 172˚ (Non-Endless), Tilt: total 220˚(-20˚~ 0˚~ 180˚~ -160˚) Smart Flip Function This function extend the shooting range by setting the camera to flip the image automatically when it tilts over 90°. → When Smart Flip function is enabled, letter will be shown in the display.

  • Page 8: Products & Accessories

    Products & Accessories  Basic Components Camera IR remote (with battery) Camera Bracket Screw User Manual AC Adapter 1m RJ45 Cable(Direct) 232C to UTP Cable 9p to UTP Cable Camera Bracket Ceiling Bracket Camera body/ Ceiling Ceiling Bracket Screw Plastic Anchor Bracket Screw User Manual...

  • Page 9: Ceiling Mount Bracket (Zcb-100) Installation

    Ceiling Mount Bracket (ZCB-100) Installation  Ceiling bracket installation method 2) Attach the bracket to the camera body as 1) Fix the ceiling bracket on the ceiling using the shown in the picture using the camera bracket and screws (4EA). screws (4EA).

  • Page 10: Wall Mount Bracket (Zwb-200) Installation

    Wall Mount Bracket (ZWB-200) Installation  ZWB-200 Components (Optional) Cover Camera bracket Wall bracket Plastic anchor Wall bracket screws Camera screws Bracket screws (For fastening wall screws)  Installation Method 2) Attach the bracket to the 1) Fix the Wall bracket on the wall 3) Insert the camera bracket into camera body as shown in the using the wall bracket screws...

  • Page 11: Installation

    Installation  SHARON 30/20 Rear-Side High Bandwidth Full NDI PTZ Camera...

  • Page 12: ① Camera Address-Adress Setup

    ① Camera Address-ADRESS Setup Change the Camera ID as shown below. - Up to 14 addresses can be set to control multiple cameras. ※ Do not use Number and 15(F). - Factory default is set to 1. When operating multiple cameras with the controller, set the different ID for each camera.

  • Page 13: ③ Output Video Format-System Select Setup

    ③ Output Video Format-SYSTEM SELECT Setup Set the video output format by changing the switch as shown below. Factory Default: Output Video Format Switch Output Video Format Switch 1920x1080p60 1920x1080p50 1920x1080i60 1920x1080i50 1920x1080p30 1920x 1080p25 1280x720p60 1280x720p50 1280x720p30 1280x 720p25 1920x1080p59.94 1920x1080i59.94 Reserved...

  • Page 14: ④ Communication Type-Communication Setup

    ④ Communication Type-COMMUNICATION Setup * The RS-232C/RS-422/RS-485 communication is available without setting the DIP Switch separately. * Do not mix the 232C / RS-422 (Parallel) / RS-422 (Daisy) communication methods. There may be a problem with the operation of the product. * Set the terminating resistance by selecting DIP switches 4 (Rx) and 5 (Tx) as ON / OFF as follows.

  • Page 15: ⑤ Connection

    ⑤ Connection Connect a controller that transmits and receives PTZ control commands. ● RS-232C Connection (232C to RJ45 Cable, RJ45 Cable) Example High Bandwidth Full NDI PTZ Camera...
  • Page 16 1. Connection of Controller and Camera Connect the 232 IN / 232 OUT cable using the direct LAN cable. 2. Multiple Camera Connection Connect the 232 IN / 232 OUT cable using the direct LAN cable. User Manual...

  • Page 17: N:n Camera Connection Using Rj-45 Lan (Rs-422)

    - N:N camera connection using RJ-45 LAN (RS-422) ● Camera connection is possible with only LAN cable. Example ● Refer to the figure below for the LAN cable wiring between the controller and cameras. High Bandwidth Full NDI PTZ Camera...

  • Page 18: 1:N Camera Connection Using Rj-45 Lan (Rs-422)

    - 1:N camera connection using RJ-45 LAN (RS-422) Example ●You can conveniently connect the camera with only a LAN cable using the RJ-45 to RJ-45 IN/OUT cable included with the Package. User Manual...

  • Page 19: ⑥ Installation Check

    ⑥ Installation Check  Before supplying power, make sure that there is no abnormality in wiring.  Check the camera ID you want to adjust and then select the correct camera ID on the controller. You can check the camera ID on the screen or ID setting switch. ...

  • Page 20: Main Features

    Main Features Screen Menu While viewing the menu displayed on the connected monitor, you can change various status settings such as camera shooting conditions, system settings, information, and functions. IR Remote C-K100 C-K200 GO to MENU or DATA SCREEN EXIT Joystick Button or HOME/SET Top button of the Joystick...

  • Page 21: Preset

    PRESET Preset is a function that saves and recalls the video status, white balance, and exposure adjusted by pan / tilt and zoom / focus. Number of assignable presets depends on its protocol. VISCA Preset 255 PELCO D/P Preset 255 When using VISCA protocol, pattern, swing, group will be carried out in each range from 1 to 8.

  • Page 22: Swing

    SWING Swing function allows you to make camera move between 2 preset positions repeatedly. When swing function activates, the camera moves from the first preset to the second preset position, and then from the second preset position to the first preset position. If you push other buttons or move joystick, swing will stop running.

  • Page 23: Group

    GROUP Group function is a function that repeatedly activates preset combinations of the preset, swing, and pattern functions. Max. eight groups can be assigned, and each group can set up to 20 actions (presets, swings, patterns). The presets set in the group can specify the operation speed, and pattern and swing can specify the number of repetitions.

  • Page 24: Menu Function

    Menu Function OSD (On Screen Display) Configuration Displays preset name during preset operation. Preset Label Displays the image flip status by Smart Flip function. Smart Flip Displays the current Camera ID. Camera ID The following information is displayed in the Action Title. - Set Preset xxx: When setting the preset position - Preset xxx: When moving to the preset position Action Title...

  • Page 25: Main Menu

    Main Menu Focus/Zoom : Controls focus and zoom Full HD Motion Video Camera ☞<Focus/Zoom > White Balance : Sets the White Balance. <White Balance> <AE Mode> AE Mode : Sets exposure value by selecting brightness, aperture, <Picture> <Image> <Motion/Action> and shutter speed. <Display>...

  • Page 26: ➋ White Balance

    ➋ White Balance Calibrates the colors for better reproduction based on the exact white color under the various light sources. Mode : Auto and ATW are set automatically, and Sodium is set White Balance based on sodium, etc. In Manual mode, the camera chromaticity ☞Mode Auto (Red / Blue Gain) is set manually.

  • Page 27: ➍ Picture

    ➍ Picture Configures general settings of the camera’s exposure. Slow Shutter : Set ON to set Slow Shutter automatically in dark Picture environment. It operates when AE Mode is Full Auto. [On/ Off] ☞Slow Shutter : Used to set the BLC(Back Light Compensation) function to HR Mode make the subject and background clear at the same time when Image Stabilizer...

  • Page 28: ➎ Image

    ➎ Image Image Flip : Flips the current image up, down, left, and right. Set Image the Image Flip to Off when using in forward direction, and On ☞Image Flip when using in reverse direction. [On/ Off] Defog Mode Picture Effect Defog Mode : Use when exposed to fog or smoke .

  • Page 29: Motion

    Motion Sets the general motion operation settings. Action Lock : When the Action Lock is set to On, functions such Motion as preset, swing, and group cannot be deleted or set as new in ☞Action Lock Power Up Action normal operation, but can only be executed. [Off /On] Smart Flip ※...

  • Page 30: Pt Speed Setup

    PT Speed Setup Sets the operation speed related to Jog, Preset and Home position movement. PT Max Speed : Used to set the maximum operation speed. The PT Speed operation speed is linked to the zoom magnification(PT with ☞PT Max Speed 60/sec Zoom ON), so the larger the zoom magnification, the slower the PT with Zoom...

  • Page 31: Preset Setting

    To set the North direction, move to desired Pan position and press North Direction the SET button or the button on the Joystick to save. ┏ ┓ ┗ ┛ Move to North Position [SET:Save /BACK:Cancel] Preset Setting Preset No. : Select the preset number you want to set. If you Preset select a predefined preset number, preset move is performed and ☞Preset No.

  • Page 32: Edit Label-Preset Setup

    Edit Label-Preset Setup Edit Label-Preset1 The highlighted portion of the label is the current cursor position, and the character moves to the right. ---------- 1234567890 Select the letter specified in the Character Map section at the ABCDEFGHIJ Cancel bottom of the label. KLMNOPQRST UVWXYZabcd Move the cursor to the desired character position by using the IR...

  • Page 33: Pattern Setup

    Pattern Setup Pattern No. : Used to select the pattern number to be set. If the Pattern selected pattern is not defined, "Undefined" is displayed below ☞Pattern No. the pattern number. [1~8] Undefined Clear Pattern Cancel Clear Pattern : Used to delete the current pattern setting. <Edit Pattern>...

  • Page 34: Edit Group-Group Setup

    Edit Group-Group Setup Action ### [None/Preset/Swing] : Select the pattern number Edit Group1 to set. If the selected pattern is not defined, "Undefined" is No Action ### Dwell OPT displayed below the pattern number. [1~8] None None Dwell [0 sec~4 min] : Used to set the delay after completion of None None...

  • Page 35: Parking Action Setup

    Parking Action Setup This function automatically executes the specified operation when the camera is not operated during the set "Wait Time". Park Enable : Used to set the activation of the Parking Action Parking Action function. [On/Off] ☞Park Enable Wait Time 00:10:00 Wait Time : It is displayed as "hour: minute: second"...

  • Page 36: Area Label Setup

    Area Label Setup It is a function that sets a specific area and its label to display the label on the main screen when the camera is move to the corresponding area. Display : Displays the set Area Label. If set to Auto, it is displayed Area Label during operation.

  • Page 37: Edit Scene

    Edit Scene You can pan the camera only in a clockwise direction. When Edit Scene-Area Label setting the setting area, Image Flip is automatically set to Off. After completing the setting, Image Flip will return to the original ┏ ┓ setting value.

  • Page 38: Edit Label

    Edit Label Area Label No.[1~16] : Select the area number to be set. Edit Label-Area Label If the selected area is not yet defined, Undefined displays under ☞Area Label No. Undefined the area number. <Edit Area Label> AREA 01 Edit Area Label : Used to set the area label in the sub menu.

  • Page 39: ➑ System Info

    ➑ System Info. Camera Model : Displays the model name of the camera. System Info. Camera Model : PRC-KA30S CAM F/W ver. : Displays the S/W version of the camera. CAM F/W ver. : 0.02Sxx System Select : 1080p60 System Select : Displays the set Video Format.

  • Page 40: System Initialize

    System Initialize Factory Default : Initializes the Display setting value, camera System Initialize setting value, motion setting value, and user edit data. ☞Factory Default ├Display Control Display Control ├Camera Mode : Initializes the Display setting value. ├Motion └Action Camera Mode : Initializes the White and AE function.

  • Page 41: Ir Remote Control

    IR Remote Control High Bandwidth Full NDI PTZ Camera...
  • Page 42 1. POWER : Turn On/ Off the camera 2. MENU : Enter menu or exit menu. 3. PRESET/SWING/PATTERN/GROUP : Select to operate, set, or save. 4. Number pad (0~9) - Used to set the camera ID to be controlled with the CAM button. - Used to select a number for operating, setting, saving the selected preset, swing, pattern, group.
  • Page 43 7. FOCUS AUTO : Sets Auto focus. 8. P/T SPEED : Changes the camera’s up/down/left/right movement speed. The speed can be adjusted from 5˚ /sec to 360˚. 9. FOCUS : It is set manually. Use the NEAR or FAR button to adjust the focus. 10.

  • Page 44: Ndi Finder Appilcation

    NDI Finder appilcation BASIC NDI finder apps can be downloaded by visiting the download center of Salrayworks' homepage as below. http://salrayworks.com/index.php/download-center/. Both the Window version and the MAC version are valid. After installation, the NDI Finder icon appears on the desktop. User Manual...
  • Page 45 Clicking the NDI ICON runs NDI finder apps as below The main purpose of NDI finder is to automatically search and acquire SHARON's NDI Devices’ full IP information in the local network. And if you lose the login password of each web server of SHARON NDI devices, you could initialize for reset Password, if you forgot PW.
  • Page 46 5. After clicking, you can change the IP and hostname through the setting window below. After the change, the camera is rebooted. 6. Camera Reboot Initialize the admin account and password. After that, access the web page and reset the ID and password.

  • Page 47: Ndi Web-Server

    NDI Web-Server If SHARON PTZs exists on the same network, you can access the web server through Chrome or another browser (Internet explorer, Edge) and Enter IP Address with a browser address and you will see the set password window as below. Set Password When you access the web server of SHARON NDI for the first time,...
  • Page 48 Control In the control menu, the pen tilt of SHATON PTZ can be adjusted and up to 100 position values can be saved. The value can be freely adjusted by selecting the focus or exposure automatically manually. Auto, Indoor, Outdoor, and Manual modes can be selected in White Balance menu.
  • Page 49 Setup In the set-up menu, you can change the password and update the new firmware (the latest updated firmware can be downloaded from the download center of the homepage). Please check the current firmware version. High Bandwidth Full NDI PTZ Camera...

  • Page 50: Controller

    Controller C-K100  Controller for the SHARON PTZs  Compact type keyboard controller  Up to 4 cameras can be controlled  LAN JACK support for convenient installation  422 communication interface  LCD Display  Variable speed control of PAN/TILT/ZOOM using the Joystick ...
  • Page 51 C-K200  Controller for the SHARON PTZs  Max. 14 Pan/Tilt/Zoom cameras can be controlled.  Two-way remote control is supported by using RS-232C and RS-422 communication, and the camera operation status can be checked by button and LCD.  Supports VISCA protocol. ...

  • Page 52: Problem Solving

    Problem Solving If an error occurs in the camera, check the following. If the problem persists after checking, please contact the distributor from whom you purchased this product. Problem Check Make sure that the power of this product and the monitor are connected. Make sure that the video cable is connected correctly.

  • Page 53: Menu Structure

    Menu Structure You can check the all menu structure. Please refer to the relevant page for more detailed function and usage. * Bold letters indicate default values. Main menu Submenu Submenu Submenu Submenu Focus Mode Semiauto/ Auto/ Manual 1cm/ 11cm/ 30cm/ 0.8m/ 1.2m/ 1.4m/ 1.65m/ 2.0m/ Focus Near Limit 2.5m/ 3.1m/ 4.2m/ 6m/ 10m/...
  • Page 54 Freeze in Preset On/ Off Action Lock On/ Off Power Up Action Off/Home/ Preset1 Smart Flip On/ Off PT Direction Normal <Motion> Preset Speed 300/sec PT Max Speed 60/sec <PT SPEED> PT with Zoom Acceleration High Center <Home Position> <North Direction> Center Preset No.
  • Page 55 Protocol Baudrate Camera ID IR-Receive On/ Off Camera Type Camera ver. Pan Rotation Factory Default Display Control <Additional Info.> Camera Mode <System Initialize> Motion Action Restart Zoom Restart System High Bandwidth Full NDI PTZ Camera...

  • Page 56: Default Value

    Default Value Menu category Saved Presets Setting value Default Value Camera setting value Focus Mode ● Semiauto Focus Near Limit ● 0.8m AF Sensitivity ● Normal Digital Zoom ● Zoom Speed ● White Balance - Mode ● Auto Red Gain ●...
  • Page 57 User setting value Preset 1~ 255 Undefined Swing 1~8 Undefined Pattern 1~8 Undefined Group 1~8 Undefined Motion setting Value ❍ Action Lock ❍ Power Up Action ❍ Smart Flip ❍ PT Direction Normal ❍ Preset Speed 360/sec ❍ PT Max Speed 60/sec ❍...

  • Page 58: Specifications

    Specifications Model SHARON 30 SHARON 20 1/2.8inch “Exmor R” CMOS Sensor 1/2.8 Type "Exmor R" CMOS Sensor Module Sony Zoom Module 1920[H]x1080[V] 1920[H]x1080[V] Valid pixels (Approximately 2.38 million pixels) (Approximately 2.12 million pixels) 1080p60, 1080i60, 1080p30, 720p60, 720p30, Video output 1080p59.94, 1080i59.94, 720p59.94, format 1080p50, 1080i50, 1080p25, 720p50, 720p25...
  • Page 59 High Sensitivity Off/ On Noise Reduction Off/ 1~5 Aperture 10, 0~15 Auto/ Indoor/ Outdoor/ One Push/ ATW/ Manual/ Outdoor Auto/ Sodium Auto/ White Balance Sodium/ Sodium Out Auto Program AE Full Auto/ Bright/ Shutter Pri/ Iris Pri/ Manual Off/ On/ VE Off/ On Pan: -172˚~ 172˚(Non-Endless) Moving Angle...

  • Page 60: Dimension

    Dimension  PTZ Camera (SHARON 20/30 Series) User Manual...
  • Page 61  Ceiling Bracket (ZCB-100) High Bandwidth Full NDI PTZ Camera...
  • Page 62  Wall Bracket (ZWB-200) (Optional) User Manual...

  • Page 63: Glossary

    Glossary  HD-SDI(High Definition-Serial Digital Interface signal) The digital video interface with 1.5 Gb/s transfer rate is standardized in SMPTE 292M. It supports 1080i /59.94 signals and can transmit signals up to 208M (stable distance 145.6M) when coaxial cable is connected. The advantages of HD-SDI include no signal delay, video and audio reporting, and time code signals.
  • Page 64 all iris is open. However, since the amplification is forcibly amplified by using the electrical characteristics, noise may occurs and may be a deterioration of image quality.  Shutter Speed This function sets the opening time of the shutter. Only when the shutter is open, the light is transmitted to the image sensor and the image is taken.

  • Page 65: Index

    Index Ａ Action Lock ..........................29, 30 Action Title ............................35 Additional Info........................... 39 AE Mode ............................26 AF Sensitivity ............................. 25 Aperture ............................28 Area Label ............................35 Ｂ BAUDRATE ............................64 BLC ..............................27 Ｃ Camera ID ............................35 CVBS ..............................
  • Page 66 Ｉ Image Flip ............................28 Image Stabilizer ..........................27 IR Info..............................35 IRIS ..............................63 IR-Receive ............................39 Ｍ Mecha F/W ver..........................39 Ｎ Noise Reduction ..........................28 North Direction ..........................29 Ｏ ONE PUSH ............................63 Ｐ Parking Action ...........................
  • Page 67 Unit 905, 1126 Bemon-ro, Geumchon-gu, Seoul, Korea 08595, +82 2 2626 6425, anyhelp@salrayworks.com www.salrayworks.com...
