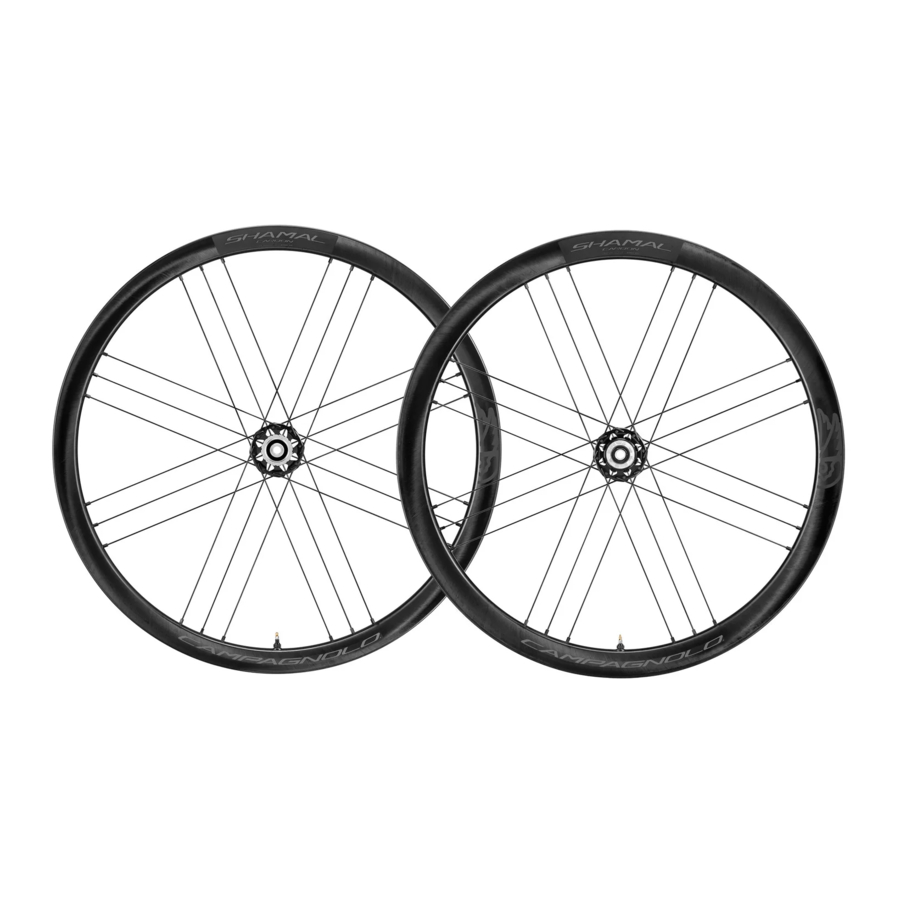

CAMPAGNOLO Shamal, Levante, Zonda GT Manual

WHEEL CENTERING

Always wear protective gloves and glasses while working on the bicycle.

warning THIS TECHNICAL MANUAL IS INTENDED FOR USE BY PROFESSIONAL MECHANICS.
Anyone who is not a qualified professional for bicycle assembly must not attempt to install and operate on the components independently due to the risk of carrying out incorrect operations which could cause the components to malfunction, resulting in accidents, physical injury or even death.
The actual product may differ from what is illustrated, as the specific purpose of these instructions is to explain the procedures for using the component.

PRODUCTS ON WHICH THE PROCEDURE SHOULD BE APPLIED
Refer to the "Table of Technical Manuals for Wheels", available at www.campagnolo.com / section "Technical Documentation – Technical Manuals"

Insert the wheel on the Truing stand.
Adjust the stands arms tight against the axle flanges of the hub.
Insert a front or rear quick release from the left side of the stand.
Push the axle of the quick release through to the other side and tighten the adjustment nut.
Close the release lever.
Position the gauge on the side of the rim using the provided adjustment
Using the spoke retainer ring UT-WH010, start to tension the wheel starting from the valve hole. For each spoke turn the nipple by ¼ of a turn.
Once you have reached average tension, use a tensiometer to check the tension of the individual spokes. If there is sufficient tension, go to the next stage. If not, repeat point 7.
Start to adjust the true (axial clearance) of the wheel by loosening or tightening the nipples as needed, until you attain adequate reading of the guage.
Position the guage with the feeler on the edge of the bead of the rim.
Start to adjust the hops (radial clearance) of the wheel by loosening or tightening the nipples as needed, until you attain adequate reading of the guage.
Check the tension of all the spokes of the wheel. If the tension value is low, repeat from point 7.
Settle the spokes. For each spoke firmly pull the rim with two hands from the opposite side of the spoke. Repeat on the opposite side of the wheel.
After the wheel has settled, check again both the axial and the radial clearance.
- AXIAL CLEARANCE Point 9
- RADIAL CLEARANCE Point 11
Check the tension of all the spokes of the wheel. If the tension value is low, repeat from point 7.
Check the dish of the wheel using the special dishing tool. By resetting the dishing tool on one side of the wheel, the distance between the fixing screw and the part on the opposite side should be reduced to a minimum.
Example of correct dish.
Example of incorrect dish.
Insert the designated thread lock once the operation is complete.
