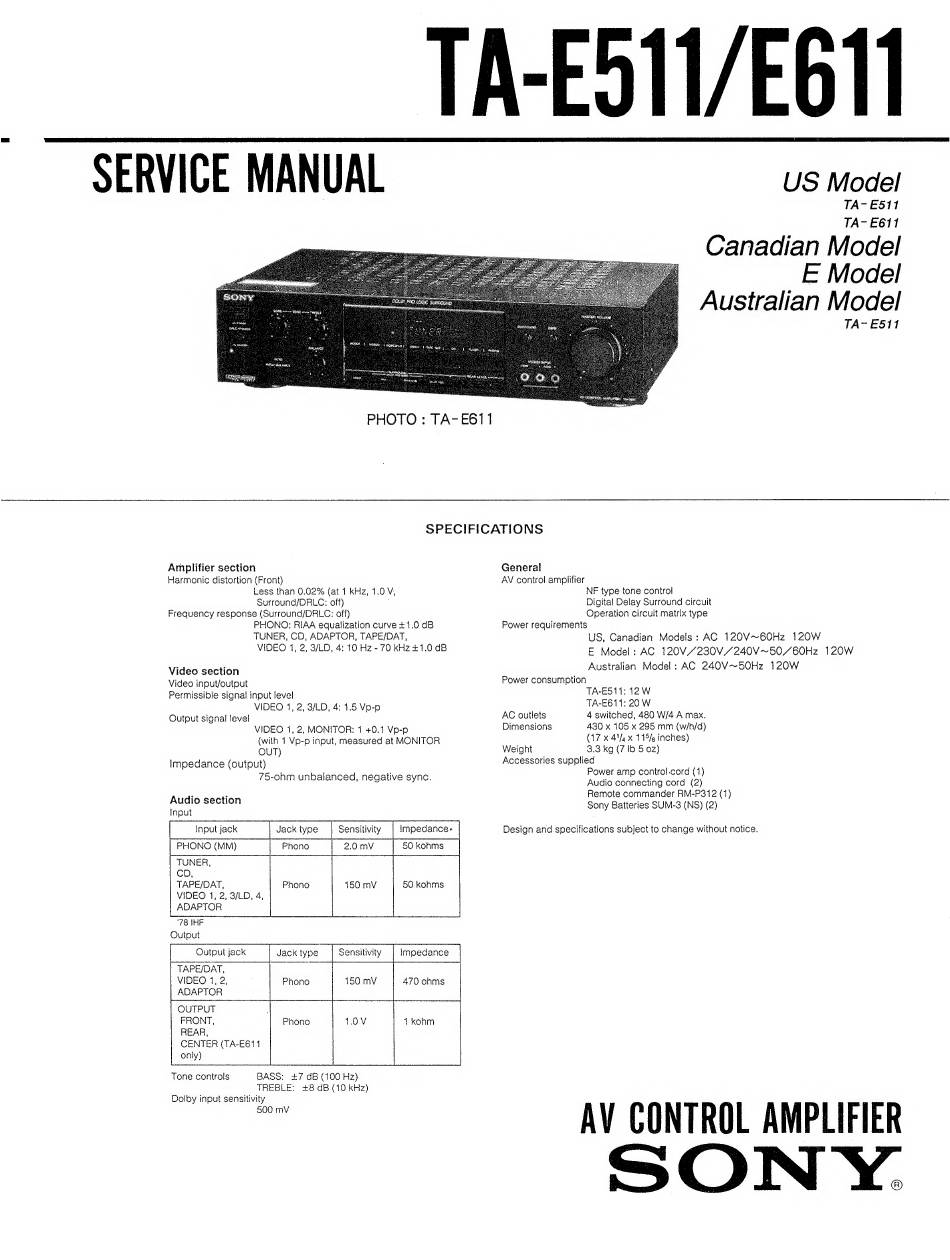

TA-E511/E611
SERVICE MANUAL US Model
TA- E511
TA- E611
Canadian Model
E Model
Australian Model
TA- E511
PHOTO : TA- £611
SPECIFICATIONS
Amplifier section General
Harmonic distortion (Front) AV control amplifier
Less than 0.02% (at 1 kHz, 1.0 V, NF type tone control
Surround/DRLC: off) ; Digital Delay Surround circuit
Frequency response (Surround/DRLC: off) Operation circuit matrix type
PHONO: RIAA equalization curve + 1.0 dB Power requirements
TUNER, CD, ADAPTOR, TAPE/DAT, US, Canadian Models: AC 120V~60Hz 120W
MEE Nn grdipe seiner heaps LOGE E Model : AC 120V,/230V/240V~50/60Hz 120W
Video section Australian Model: AC 240V~50Hz 120W
Video input/output Power consumption
Permissible signal input level TA-ES11: 12 W
VIDEO 1, 2, 3/LD, 4: 1.5 Vp-p TA-E611: 20 W
Output signal level AC outlets 4 switched, 480 W/4 A max.
VIDEO 1, 2, MONITOR: 1 +0.1 Vp-p Dimensions 430 x 105 x 295 mm (w/h/d)
(with 1 Vp-p input, measured at MONITOR ' (17 x 4"/4 x 11%/ inches)
OUT) Weight 3.3 kg (7 Ib 5 02)
Impedance (output) Accessories supplied
Power amp control-cord (1)
Audio connecting cord (2)
Remote commander RM-P312 (1)
Sony Batteries SUM-3 (NS) (2)
75-ohm unbalanced, negative sync.
Audio section
Input
Input jack
PHONO (MM)
Jack type Impedance.
50 kohms
Sensitivity Design and specifications subject to change without notice.
Phono
co,
TAPE/DAT, Phono 150 mV
VIDEO 1, 2, 3/LD, 4,
ADAPTOR
'78 JHIF
Output
50 kohms
. eos ca Output jack Jack type Sensitivity Impedance
TAPE/DAT, 7
VIDEO 1, 2, ; Phono 150 mV 470 ohms
ADAPTOR
OUTPUT
FRONT, Phono 1.0V 4 kohm
REAR,
CENTER (TA-E614
only)
Tone controls BASS: +7 dB (100 Hz)
TREBLE: +8 dB (10 KHz)
Dolby input sensitivity
