Summary of Contents for BODEGA MCD Series

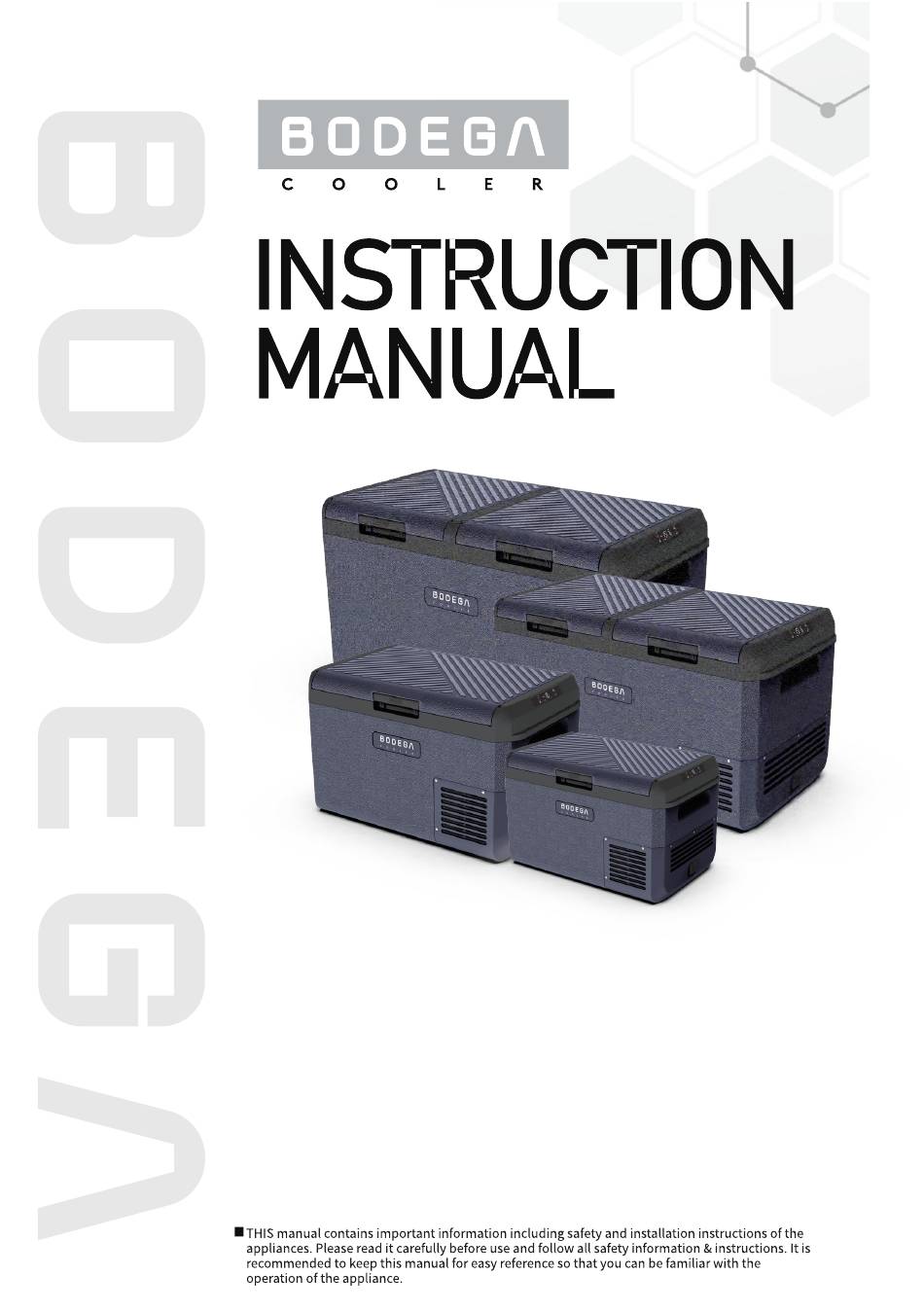

- Page 1 MCD SERIES MOBILE REFRIGERATOR BRAND: BODEGA MODEL: MCD25D/60D/75D/95D DC 12V/24V...
- Page 2 MOBILE REFRIGERATOR...
-
Page 3: Table Of Contents
English Safety Information Ventilation Clearance Electrical Connection Specifications Reversing the Door Swing Operating Instructions - Part I Operating Instructions - Part II Defrosting Care and Cleaning Troubleshooting Error Codes APP Connection... -
Page 4: Safety Information
English English Safety Information WARNING Please read the user manual and safety instructions carefully before using the appliance. ●This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 5: Correct Disposal Of This Product
English CORRECT DISPOSAL OF THIS PRODUCT To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the recovery systems or contact the retailer that they can take this product for environmental safe recycling. -
Page 6: Ventilation Clearance
English Ventilation Clearance Slots and openings in the body are provided for ventilation. To ensure reliable operation and to protect against overheating, these openings should never be blocked or covered. A minimum clearance of 60mm (2.4”) is recommended on the back, side and front of the fridge for ventilation. This product should never be placed in a built-in installation with limited airflow unless adequate ventilation is provided. -
Page 7: Specifications
English Specifications MCD25D MCD75D MCD95D Model MCD60D Dimensions 572x345x378 mm 657x401x524 mm 852x451x464 mm 852x451x552 mm (LxWxH) 22.5x13.6x14.9 inch 25.9x15.8x20.6 inch 33.5x17.7x18.3 inch 33.5x17.7x21.7 inch Capacity 25 L / 26 Qt 60 L / 63 Qt 75 L / 79 Qt 95L / 100 Qt Net Weight 10.3 kg... -
Page 8: Reversing The Door Swing
English Reversing the Door Swing The door of the fridge can be removed and switched to the opposite side. Please refer to the instructions provided below. 1. Set the door to open at a 60-degree position. 2. Take out the door along the track. 3. -
Page 9: Operating Instructions - Part I
English Operating Instructions - Part I The instructions provided here are intended solely for the models: MCD25D MCD60D Lid Latch LED Light (*MCD60D) 12V/24V DC Power Cable Control Panel AC Power Cable Tie Down Points Handle Power Adaptor Power Input Model MCD25D MCD60D... -
Page 10: Temperature Setting
English The instructions provided here are intended solely for the models: MCD25D MCD60D Temp. Setting UP Power Settings Temp. Setting DOWN NOTE: Model MCD25D does not include the Bluetooth icon Press the power button to turn on / off the fridge. 1. - Page 11 English Operating Instructions - Part II The instructions provided here are intended solely for the models: MCD75D MCD95D Lid Latches LED light 12V/24V DC Power Cable LED Light Control Panel AC Power Cable Tie Down Points Handle Power Input Power Adaptor Drain hole Drain hole...
- Page 12 English The instructions provided here are intended solely for the models: MCD75D MCD95D Power button Temp. Setting UP Temp. Setting DOWN Settings button Press the power button to turn on / off the fridge. 1. Single/Double Box Mode The fridge features a dual-section layout, and you can turn off one of them whenever necessary. How to turn off: 1.
- Page 13 English The instructions provided here are intended solely for the models: MCD75D MCD95D Power button Temp. Setting UP Temp. Setting DOWN Settings button 3. Mode Setting 1. Hold down the setting button for 2 seconds to enter the setting menu. 2.
-
Page 14: Defrosting
English Defrosting It is normal for ice to accumulate on the cooling surfaces of a freezer. This will be more significant in humid environments. Increased ice build-up will reduce cooling performance and should be removed periodically. Useful tips: ● Before defrosting, remove any contents of the fridge or freezer compartments. ●... -
Page 15: Troubleshooting
English Troubleshooting Fridge concern is not cooling or running for only a short period etc. The above STEP concerns can have several causes. The following helps confirm where the issue lies. Rest the fridge. If the fridge has turned on and off too quickly, a number of errors can STEP occur. -
Page 16: Bluetooth Connection
English APP Connection The APP connection instructions are intended for below models: MCD60D MCD75D MCD95D 1. Download the APP Scan the QR Code with your smart phone or search “Outdoor Joy” in the APP Store or Google Play to download the mobile application. -
Page 17: Device Sharing
English 5. Device Sharing The fridge is designed to connect with only one device at a time, but you can easily share that connection with a friend or another device if you wish. * If another device is managing the fridge, you might not be able to access the fridge dashboard. -
Page 18: Connection Issues
6. Connection Issues If there was a failure in the Bluetooth pairing process: 1. Check if the Bluetooth feature on your device is activated. 2. The most recent connection may remain paired. Unpair the current connection before making a new one. 3.
