Summary of Contents for BODEGA YC60

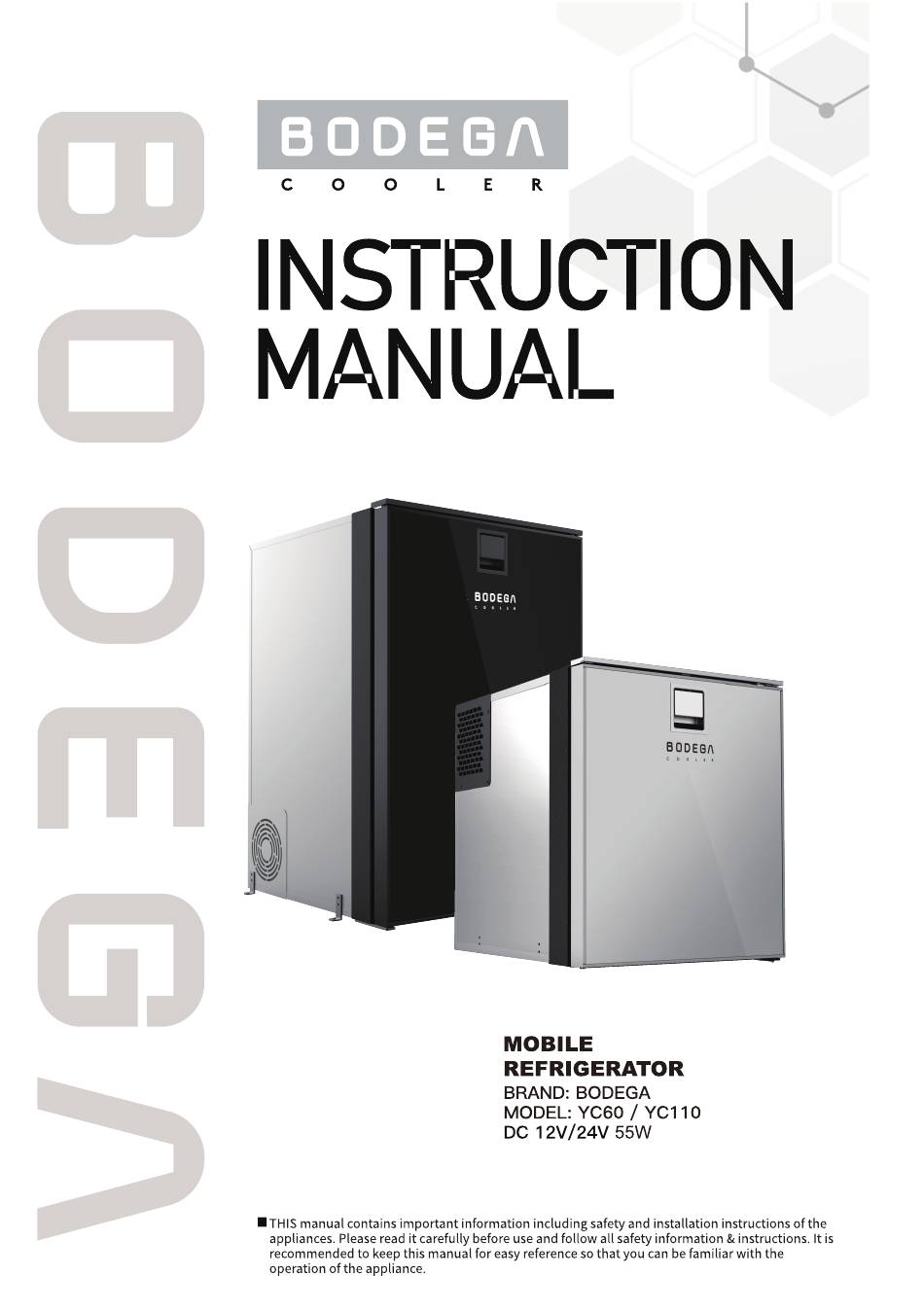

- Page 2 MOBILE REFRIGERATOR...
-
Page 3: Table Of Contents
English Safety Information Getting Started Specifications Wiring Instruction Ventillation Options Moving the Door Hinge Moving the Shelf Brackets Sketch Map Of Main Parts Operation Cooling Tips Care and cleaning Troubleshooting Error codes... -
Page 4: Safety Information
English Safety Information NOTICE Please read the user manual and safety instructions carefully before using the appliance. ◆ By ignoring the safety instructions, the manufacturer cannot be held responsible for the damage. ◆ The use of accessories that are not recommended by manufacturer can cause injuries and will invalidate any warranty that you may have. -
Page 5: Correct Disposal Of This Product
English WARNING! Food needs to be packed in bags before putting into the refrigerator, and liquids need to be packed in bottles or capped containers to avoid the problem that the product design structure is not easy to clean. WARNING! ●... -
Page 6: Getting Started
2. If the device can't turn on or you encounter other problems for first time use, please contact us for help. 3. Pre-cool the empty unit before using it to enhance system efficiency. Specifications Model YC60 YC110 17.9x20.7x21.1(inch) 20.8x20.8x31.6(inch) Dimensions (WxDxH) -
Page 7: Wiring Instruction
English Wiring Instruction Black (-) Connect the DC power cable to a 12V or 24V power source. DC 12V / 24V The appliance is designed to operate on DC only. Red (+) When connecting to the power source with the stripped cable: 1. -
Page 8: Ventillation Options
English Ventillation Options Exterior Ventillation min. 400 cm² (62 sq.in) Interior Ventillation Option 1 Interior Ventillation Option 2 min 60 mm (2.36 inch) min 200 mm (7.87 inch) min 60 mm (2.36 inch) Interior Ventillation Option 3 Interior Ventillation Option 4 min 60 mm (2.36 inch) min 200 mm... -
Page 9: Moving The Door Hinge
English Moving the Door Hinge Remove the screws securing the top and the fastening pins, remove the door, and reverse the fastening hinges as illustrated below. Then re-insert the door and re-tighten all parts. Switch the pins across the diagonal. Moving the Shelf To change the position of the shelf, follow below procedures: 1. -
Page 10: Brackets
2. There are 6 attachment points on the refrigerator. Choose 4 of these points, and remove 2 screws from each. 3. Secure the bracket to the refrigerator using the screws that were just removed. 4. Use the 4 screws provided, secure the refrigerator in the intended position. YC60 YC110... -
Page 11: Sketch Map Of Main Parts
English Sketch Map Of Main Parts YC60 A. Control Panel B. Shelf C. Water Tray D. NTC E. LED Light F. Retainer YC110 D. Drawer A. Evaporator Baffle B. Water Tray C. Shelf E. Control Panel F. Retainer G. LED Light... -
Page 12: Operation
English Operation Hold 3 Sec Setting Up and Down Buttons Power Display Hold down the “ ” button for 3 seconds to turn on / off the appliance. Memory Function The appliance features a memory function that retains settings in case of a power outage. Temperature Setting With the appliance on, short press “... -
Page 13: Cooling Tips
English Cooling Tips Imagine your fridge as a mini climate control system. The secret to its efficiency? Energy management. When you take energy away, things get chilly, and when you add energy, things heat up. It's like a kettle: turn it on, and the water inside starts to dance with heat; turn it off, and the water cools down as it releases that energy. -
Page 14: Troubleshooting
English Troubleshooting Fridge concern is not cooling or running for only a short period etc. The above STEP concerns can have several causes. The following helps confirm where the issue lies. Rest the fridge. If the fridge has turned on and off too quickly, a number of errors can occur. -
Page 16: Utilisation Prévue
Français ATTENTION ! Les aliments doivent être emballés dans des sacs avant d'être placés dans le réfrigérateur, et les liquides doivent être emballés dans des bouteilles ou des récipients fermés afin d'éviter que la structure du produit ne soit difficile à nettoyer. ATTENTION ! •...
