Summary of Contents for ETS NORD NORDcanopy HM 1.1

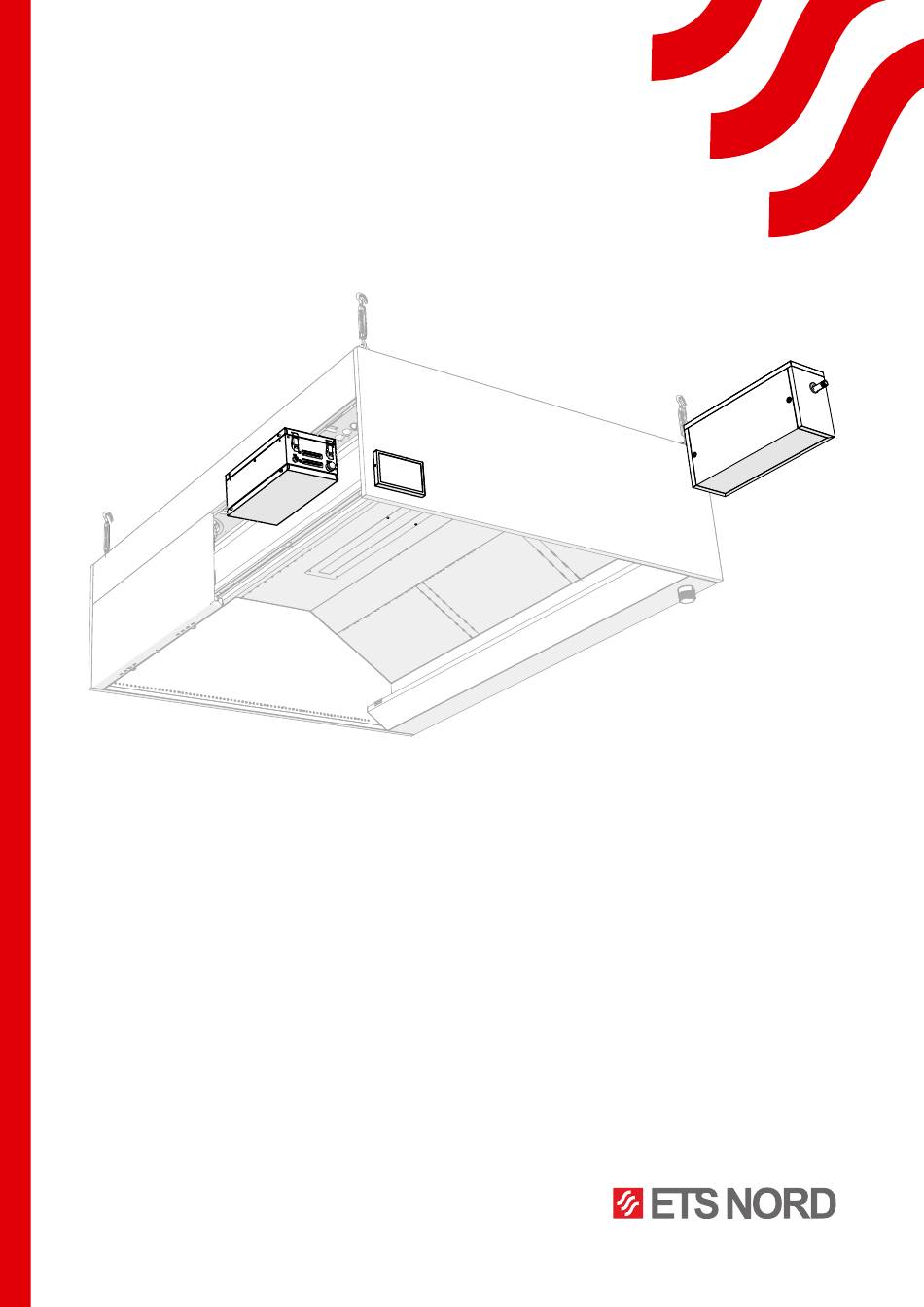

  • Page 1 NORDcanopy HM 1.1 Control Unit and Water Supply Unit Installation Guide...
  • Page 2: Table Of Contents

    ® NORDcanopy | HM 1.1 Contents 1. General 2. Checking the product 3. System overview 4. HM 1.1 Water supply unit installation 5. HM 1.1 Control unit installation into HM canopy 6. Electrical installation 7. LED notification panel installation 8. Building automation 9.
  • Page 3: General

    If goods purchased from ETS NORD have defects for which ETS NORD is responsible, ETS NORD will repair or replace the defective goods. If the goods cannot be repaired or replaced, ETS NORD will refund to the buyer all fees for such items resulting from the sales contract.
  • Page 4 ® NORDcanopy | HM 1.1 LED notification panel package contains: - LED notification panel Optional accessories: - Relay box – for BMS connection WARNINGS! Risk of falling! Make sure installation and service personnel have stable work platforms when installing the device. Risk of electric shock! Electrical connections to the system may only be made by an authorized electrician.
  • Page 5: System Overview

    ® NORDcanopy | HM 1.1 3. System overview One HM 1.1 Control unit allows to control one HM 1.1 Water supply unit. One HM Water supply unit can direct water into a maximum 5-meter canopy. Each control unit comes with a LED notification panel that displays information about the system status to the user.
  • Page 6 ® NORDcanopy | HM 1.1 4.1 Water supply unit installation The water supply unit must be installed in an upright position on the wall or on the side of the canopy. Access to the filter found inside of the water supply unit must be guaranteed when opening the front panel of the unit, to be able to change the filter when the need calls for it.
  • Page 7 ® NORDcanopy | HM 1.1 4.2 Water supply unit’s water pipe connections 1/2" 1/2" 1/2" 2" Images are for illustrative purposes. RDM-115-0125 We reserve the right to make changes.
  • Page 8: Hm 1.1 Control Unit Installation Into Hm Canopy

    ® NORDcanopy | HM 1.1 5. HM 1.1 Control unit installation into HM canopy Risk of falling! Make sure installation and service personnel have stable work platforms when installing the device. www.etsnord.com RDM-115-0125...
  • Page 9: Electrical Installation

    24 V/DC 0 V/DC Yellow * Cable is supplied by ETS NORD and already connected to the water supply unit. NB! The maximum cable cross-section for connector X1 is 1,5 mm for solid cable core. For cable with flexible cores (ferrule) 1,0 mm Images are for illustrative purposes.
  • Page 10 ® NORDcanopy | HM 1.1 6.2 External connections to the control unit X2 connector Connector X2 I/O grouping I/O name Cable core colors Cable marking Lighting White Control unit synchronization Watermist Brown „Handshake“ Green Input Reserve input 24 V/DC Input Reserve input 24 V/DC Input...
  • Page 11 ® NORDcanopy | HM 1.1 6.4 Connecting canopy luminaire Connect W2 cable into control unit LIGHTING socket. Connect the luminaire and the W2 cable using the XB2 junction box. 6.5 Connecting water supply unit cables From the water supply unit you must connect the solenoid cable W4 and the sensor cable W5. These cables are located on the water supply unit with a lenght of 6 meters.
  • Page 12 ® NORDcanopy | HM 1.1 Connection diagram HM 1.1 Water supply unit Pressure before Water flow after valve OK valve OK Water valve W5.1 W5.2 2x0,5 mm2 Device cable 0,5 m Junction 3G0,75 mm2 6 meters 3x0,25 mm2 6 meters HM 1.1 Control unit www.etsnord.com RDM-115-0125...
  • Page 13 ® NORDcanopy | HM 1.1 6.6 Conneting extract air damper actuators Spring-return or fail-safe valve actuators must be installed on each extract pipe of the HM canopy. The actuators must be connected in parallel and connected to the HM control unit. Specified actuator characteristics: •...
  • Page 14 ® NORDcanopy | HM 1.1 6.7 Control unit synchronization (Handshake) HM 1.1 control units can be synchronized so that from one HM canopy buttons it is possible to turn on the other HM canopy lightning and watermist, the other HM canopy contains a separate HM 1.1 control unit. Connections between control units: Control unit 1 Control unit 2...
  • Page 15: Led Notification Panel Installation

    ® NORDcanopy | HM 1.1 7. LED notification panel installation NB! To install the LED notification panel, choose a location in the kitchen that is highly visible to the staff. Avoid placing the LED panel above kitchen appliances. Each HM 1.1 control unit comes with a LED notification panel which displays simplified information about the system states to the user.
  • Page 16 ® NORDcanopy | HM 1.1 Wall mounting www.etsnord.com RDM-115-0125...
  • Page 17 ® NORDcanopy | HM 1.1 Canopy mounting Images are for illustrative purposes. RDM-115-0125 We reserve the right to make changes.
  • Page 18: Building Automation

    ® NORDcanopy | HM 1.1 8. Building automation HM 1.1 Control unit can be connected to building automation via I/O status signals and by granting work permis- sion to the system through a potentially free NO contact from the building automation centre, ventilation unit or fire alarm system (FAS).
  • Page 19 ® NORDcanopy | HM 1.1 8.2 Building automation compatibility through status signals (Relay box) To use status signals, a Relay Box must be used, which is an optional accessory. When using a relay box, the connection between the LED notification panel and the building must go through it. Connections between HM control unit X1 connector and Relay box: Control unit X1 connector Relay box terminal block...
  • Page 20: Closing The Hm Canopy Front Panel And Connecting The Buttons

    ® NORDcanopy | HM 1.1 The status table is given in the table: IO name Value is 0 Value is 1 Status – OFF Status – ON Working status (Watermist is not working) (Watermist is working) Status – OFF Status – ON Critical error (No fault in HM system) (Fault in HM system)
  • Page 21: Warranty Information

    • A two-year warranty is granted for the new product against possible defects or manufacturing defects, provided that: - The introduction of the HM Watermist canopy has been carried out by ETS NORD technician or authorized partners. - The annual maintenance of the device has been completed on time.
  • Page 22 21363 Malmö Sweden Phone: +46 40-94 68 70 Address: Förrådsvägen 5 151 58 Södertälje Sweden Phone: +46 8 550 301 40 info@etsnord.se www.etsnord.se ETS NORD International info@etsnord.com www.etsnord.com ETS NORD Ventilation Manufacturing LLC UAE Sepin Rayo sepin.rayo@etsnord.com +971 5257 02916...
