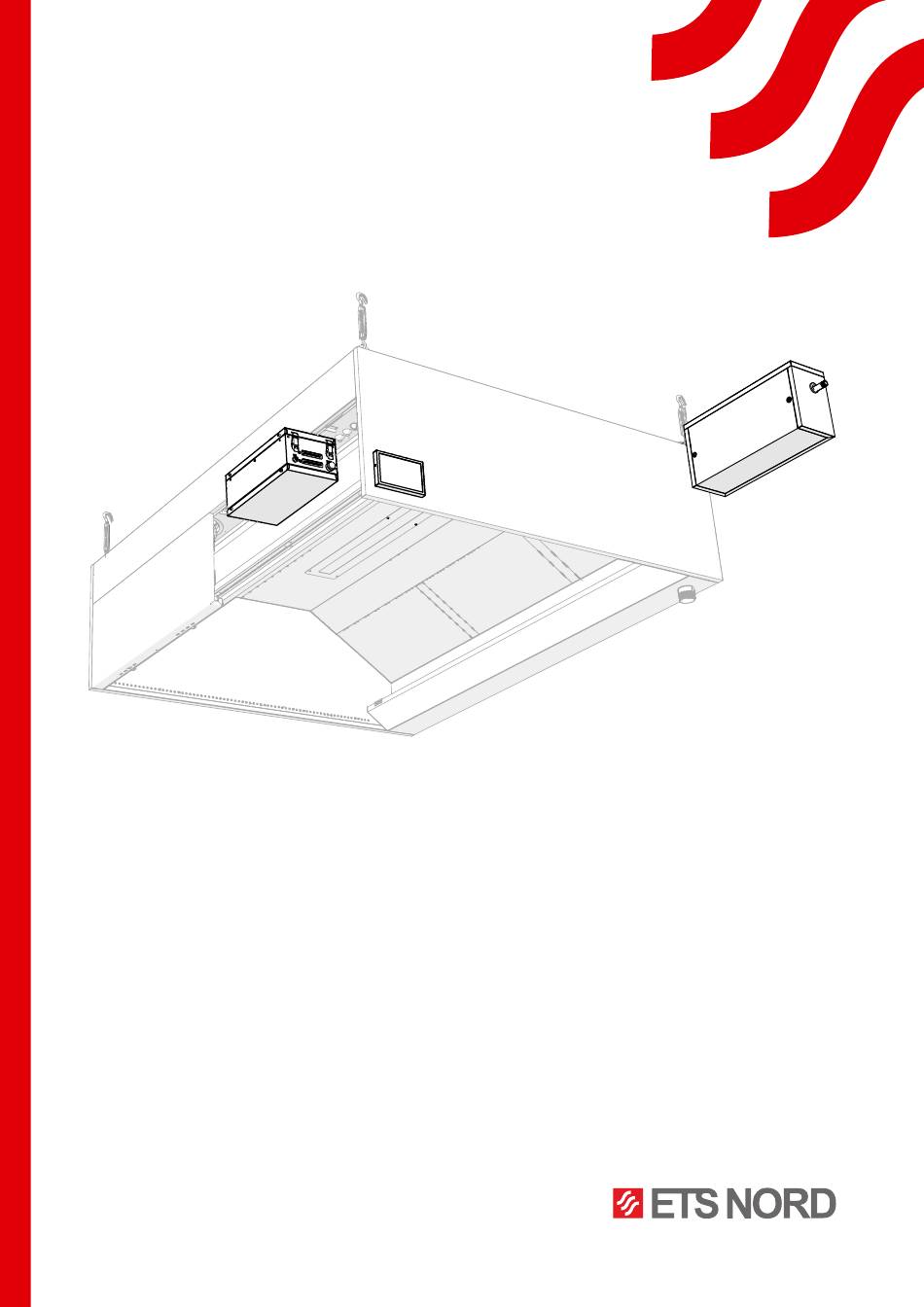

  • Page 1 NORDcanopy HM 1.1 Control Unit and Water Supply Maintenance and Usage Manual...

  • Page 2: Table Of Contents

    ® NORDcanopy | HM 1.1 Contents WARNINGS! 1. ETS NORD kitchen canopy maintenance instructions 1.1 Removing the HFM labyrinth filters, hatches and hatch beams 1.2 Reinstalling the HFM labyrinth filters, hatches and hatch beams 1.3 Water supply unit wound filter 1.4 Cleaning the water nozzles...

  • Page 3: Warnings

    When removing the filters, make sure that the system is not working! 1. ETS NORD kitchen canopy maintenance instructions • The frequency of cleaning the canopy depends on its use and should be determined based on the intensity of kitchen use. To ensure the best hygiene, fire safety and functionality, it is important to maintain cleanliness in the entire kitchen, including the appliances located in the kitchen.

  • Page 4: Removing The Hfm Labyrinth Filters, Hatches And Hatch Beams

    ® NORDcanopy | HM 1.1 1.1 Removing the HFM labyrinth filters, hatches and hatch beams PUSH 1.2 Reinstalling the HFM labyrinth filters, hatches and hatch beams PUSH www.etsnord.com RDM-116-0125...

  • Page 5: Water Supply Unit Wound Filter

    ® NORDcanopy | HM 1.1 1.3 Water supply unit wound filter At least once a month a visual inspection of the HM 1.1 water supply unit wound filter must be performed as the filter becomes dirty over time. The wound filter itself must be exchanged every 3-6 months. 1.4 Cleaning the water nozzles Once a month clean the water nozzles using a regular descaling product.
  • Page 6 ® NORDcanopy | HM 1.1 When reinstalling the water nozzles make sure that all the water nozzles are in line so that the water spray is parallel to the rear wall. PUSH NB! Once a day for at least 30 min. activate the watermist, this helps to prevent water nozzle blockage.

  • Page 7: Hm 1.1 System Description

    ® NORDcanopy | HM 1.1 2. HM 1.1 system description The operation of the HM Watermist canopy is controlled using buttons located on the lower right side of the canopy’s front panel. The lighting button controls the canopy lights. The watermist button controls the water mist function. The button’s blinking light indicates that the system is ready for work (stand-by mode).

  • Page 8: Description Of A System Without Disturbances

    Both lights and water mist have been turned on. Canopy exhaust dampers will open when the water mist is turned on. The LED notification panel will light up with the words “ETS NORD Canopy system”. This means that the water mist is working.

  • Page 9: Description Of A System With A Disturbance - Power Failure

    ® NORDcanopy | HM 1.1 2.3 Description of a system with a disturbance – power failure The following describes the system operation and status indications if there is a power outage during system operation. Water mist and lights buttons will not work. The water mist will not activate, and the solenoid will be closed.
