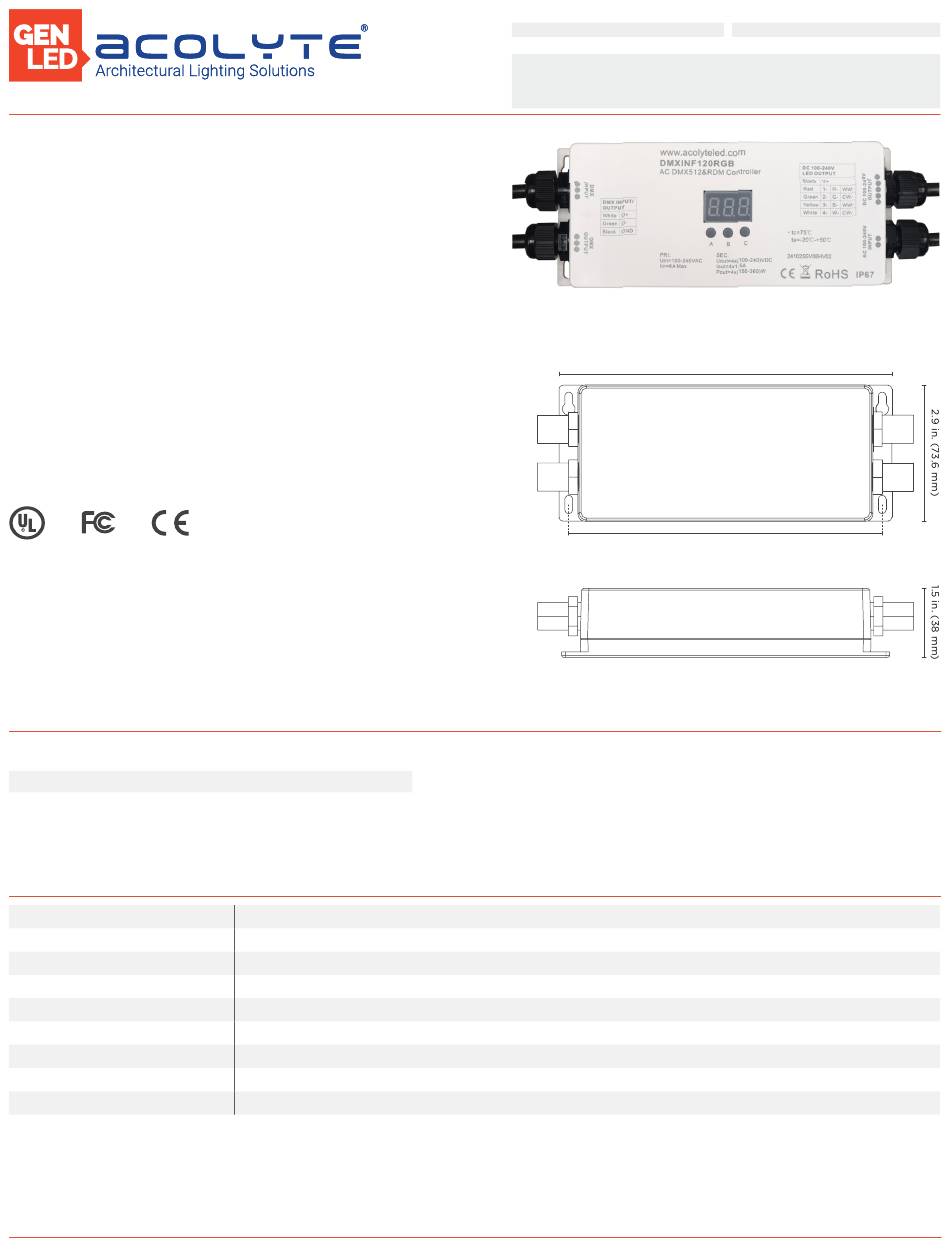

GENLED Acolyte DMXINF120RGB Quick Start Manual

HIGH VOLTAGE 3 CHANNEL WATERPROOF DMX INTERFACE
The Acolyte High Voltage 3 Channel Waterproof DMX Interface is
used with our DMX controllers to seamlessly operate our high-voltage
color changing RibbonLyte and fixtures.
• Standard DMX512 compliant control interface enables user
to set DMX address freely
• LCD display for digital programming
• Safe and reliable full isolation design
• Output for high voltage DC100-240 V 3 Channel LED Strip
• With both Master/Decoder functions switchable
• High temperature resistant address digital display
• IP67 protection, rated for outdoor use
Applications:
Commercial Hospitality
Entertainment Museums
Healthcare Public Spaces
ORDERING GUIDE
Category
DMXINF120RGB
DMXINF120RGB - High Voltage 3 Channel Waterproof DMX Interface
SPECIFICATIONS
Input Voltage
Output Voltage
Output Current (Max.)
Output PWM Frequency
Max. Load
Ambient Temperature
IP Rating
Dimensions (L x W x H)
Warranty
Acolyte does not warrant or represent that the information is free from errors or omission. The information may change without notice and Acolyte is not in any way liable for the
accuracy of any information printed and stored or in any way interpreted or used.
Acolyte | Architectural Lighting Solutions
Residential
Retail
RoHS IP67
Date
Notes Notes
100-240 VAC
100-240 VDC
1.5 A (x4 channels)
500 Hz-30,000 Hz
660 W @ 110 V, 1320 W @ 220 V
-4 — 122 °F (-20 — 50 °C)
IP67
7.1 x 2.9 x 1.5 in. (180.5 x 73.6 x 38 mm)
3 years
Acolyte is a quality division of GENLED
Project Project
7.1 in. (180.5 mm)
6.69 in. (170 mm)
Brands™ | www.AcolyteLED.com | Page 1
