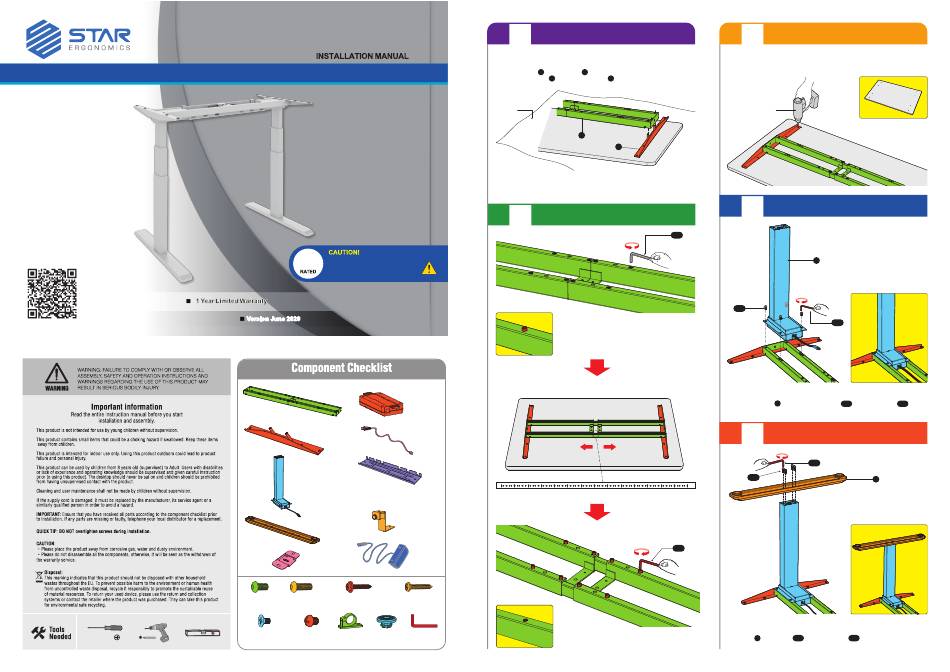

Star SE07E1FW Installation Manual

ELECTRIC Height Adjustable Desk Frame
Scan the QR Code™ below
for more info about this product:
SE07E1FW
125kg
Do not exceed the maximum rated weight
(275lbs)
specified. Otherwise, serious injury or
r.
property damage may occu
Version June 2020
F (x1)
control box
A (x1)
crossbar
G (x1)
B (x2)
power plug
side bracket
H (x1)
cable management tray
C (x2)
lifting column
I (x2)
tray hanger
D (x2)
foot
J (x1)
E (x1)
controller
fixing plate
S-A (x8) S-B (x8) S-C (x10) S-D (x2)
hex head screw hex head screw phillips head screw+1 spacer phillips head screw
S-E (x2) S-F (x4) S-G (x3) S-H (x10) S-I (x1)
phillips head screw phillips head screw cable clip anti-vibration pad allen wrench
1
Attaching Side Brackets
• Please prepare a spacious area for installation, and put a shipping blanket on the area to prevent
scratches.
• Carefully place the tabletop (not included) upside down on the blanket.
A B
• Place the crossbar and side brackets on the top.
• Attach the side brackets B to the end of the crossbar A . (This step doesn't require the use of the
screws.)
Shipping
Blanket
A
B
Note: The drawings of both of the crossbar and side brackets are the backside of the components.
Please make sure the crossbar and side brackets keep facing down while installation, which is
convenient for the further steps.
2
Adjusting the Frame
S-I
Loosen the hex head screws that fix the adjustable junction,
but don't completely take out the screws.
• Ensure that the frame is placed in the center of the table.
• Then adjust the frame to suit the size of the tabletop.
35(max) 30 25 20 15 10 5 0(min) 5 10 15 20 25 30
When adjusting the frame position, please make sure it doesn't exceed the range of silk screen printing
on the inner crossbar.
S-I
Retighten all the hex head screws to finish the adjustment.
3
Drilling Mounting Holes
• Use a drill to make mounting holes on the backside of the tabletop through the 8 mounting holes on
the side brackets.
Note: The depth of the mounting holes should be over 10mm and the diameter should be less than 3mm.
Drill
4
Assembling the Lifting Columns
C
S-A
S-I
• Insert one lifting column into one end of the crossbar with the head of the lifting column facing inward.
Make sure the mounting holes on the lifting column completely align with the screw holes on the crossbar.
• Fix the lifting column C with crossbar using 4 screws S-A with the Allen wrench
• Repeat the same process to assemble the other lifting column.
5
Assembling the Feet
S-I
S-B
35(max)
• Place the foot on the bottom of the lifting column. Align the mounting holes on the foot with the screw
holes on the lifting column.
D
• Fix the foot using 4 screws S-B with the Allen wrench S-I .
• Repeat the same process to assemble the other foot.
S-I .
D
