ASM CB-1 Instructions

Bottom mount cover butler style lifter

Advertisement

Quick Links

10. With cover hanging vertically behind spa with
about 1" between spa cover and the back of the spa
cabinet (The cover lifter will be in a slightly
over-vertical position), attach the Chain Bracket
to the spa cabinet with three #8 x 5/8" wood
screws. The Retaining Chain should be
approximately parallel with the ground, but this is
NOT critical to operation. Tighten Screw securely,
but make sure chain can move freely on screw
shaft. See Figure D.
ENJOY YOUR NEW COVER LIFT!!
CB-1 / CB-2 LIMITED LIFETIME WARRANTY
ASM Manufacturing LLC warrants this product to be free from defects in workmanship
and material, under normal use and service conditions, for a Limited Lifetime Warranty.
This warranty extends only to the original purchaser. What we will do to help with
warranty replacement, we will repair or replace the product subject to receiving
acceptable photos and or the defective parts shipped to us freight prepaid. Our warranty
does not include the return shipping cost of the replacement parts and or a new cover
lift.
This warranty does not extend to any product or damage to a product caused by or
attributable to freight damage, abuse, misuse, improper or abnormal usage or
Specifically waterlogged spa covers or for commercial, rental purposes and or used as
store display models. CB-2 Black Powder Coating finish has a 1 year warranty.
No other warranty beyond that specifically set forth above is authorized and we are not
responsible or liable for indirect, special or consequential damages arising out of or in
connection with the use or performance of the product or damages with respect to any
economic loss, loss of property, loss or revenues or profits, loss of enjoyment or use,
costs of removal, installation or other consequential damages of whatsoever nature.
Some states do not allow the exclusion or limitation of incidental or consequential
damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any
implied warranties for a particular purpose is limited in its scope and duration to the
terms set forth herein.
Some states do not allow limitations on how long an implied warranty lasts.
Accordingly, the above limitation may not apply to you. This warranty gives you
specific legal rights. You may also have other rights which vary from state to state.
The ORIGINAL Cover Lift (since 1994) adjusts to fit most square/rectangular spas up to
99" in width. When assembled it forms a rectangular shape. The cover lift attaches to the
back of the spa cabinet, either on the back wall of the cabinet or on the pedestal base.
THERE MUST BE 18" CLEARANCE BEHIND THE SPA.

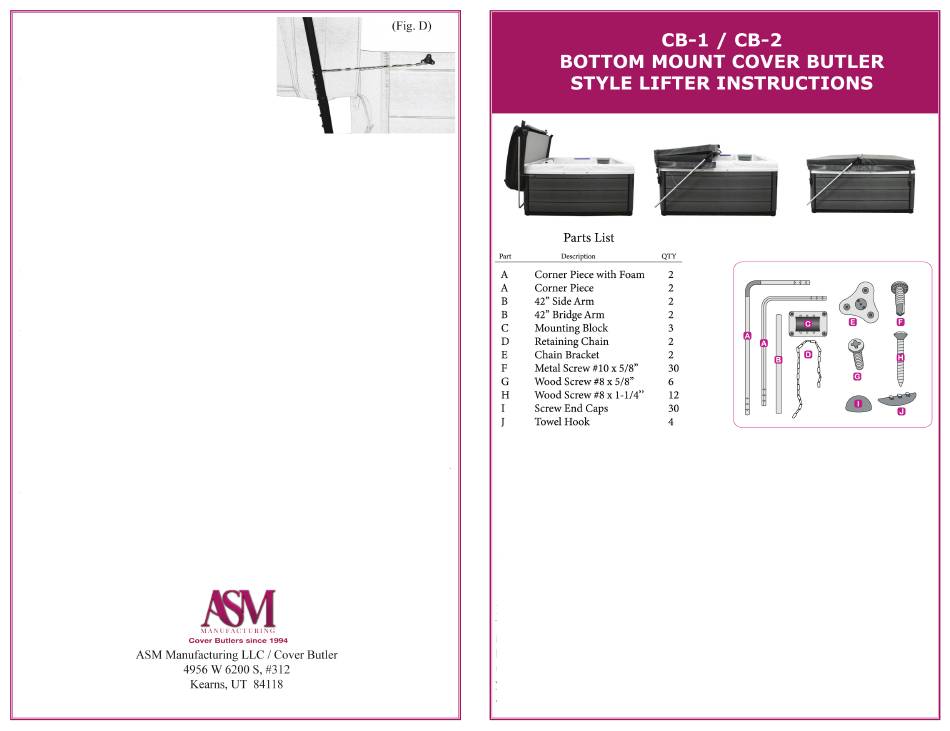

Before assembling the cover lift, check the components in the box against the Parts List
to insure all parts are present. A power/cordless drill with Phillips bit and a tape measure
is required.
BEGIN
The Bridge Arm (B) lies across the spa cover parallel to the seam (hinge) of the cover
and is "captured" when the cover is folded back over it. Once the cover is folded back,
simply lift back on the Side Arm and the cover lift will lift the cover off the spa and hold
it in an upright position behind the spa. Pilot holes are pre-drilled in the Corner Pieces
(A). Once you've sized to your spa, the self-tapping screws will penetrate the Bridge
Arms and Side Arms (B) to lock the tubing in place.

Advertisement

loading
Need help?

Need help?

Do you have a question about the CB-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for ASM CB-1

  • Page 1 ENJOY YOUR NEW COVER LIFT!! CB-1 / CB-2 LIMITED LIFETIME WARRANTY ASM Manufacturing LLC warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a Limited Lifetime Warranty. This warranty extends only to the original purchaser. What we will do to help with warranty replacement, we will repair or replace the product subject to receiving acceptable photos and or the defective parts shipped to us freight prepaid.
  • Page 2 1. Lay out the components in the shape of a rectangle as shown below Fig. A. There are 5. Next connect these two assembled pieces together with the Side Arms (B) by sliding 2 sets of Corner Pieces (A). They have been drilled so that the top left and bottom right the Side Arms into each of the four Corner Pieces as shown in Fig.
