process-informatik MONI V1.1 Short Instruction

Handling-Short Instruction for
EtherSens-devices / MONI V1.1
The EtherSens devices and MONI are data loggers according to their specification. Either for digital or analog
input- and output-signals, energy data or just as a pure messenger.
Commissioning of the device :

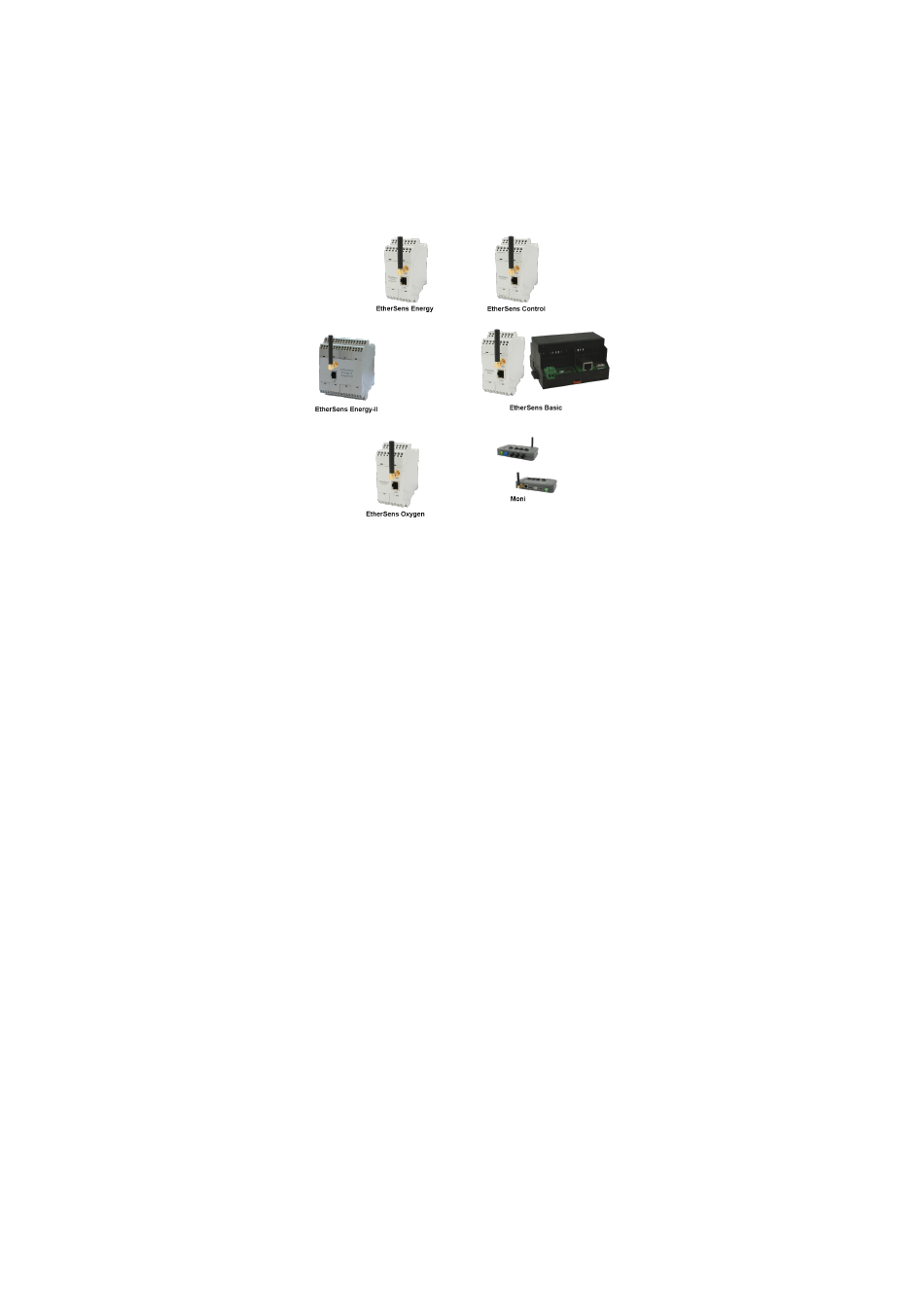

- EtherSens Bridge, EtherSens Control, Ethersens-ProSuite, EtherSens-ProSuite-LTE, MONI:
Connect the voltage 24V DC ± 20% to the labeled terminal connectors + 24V and GND
- EtherSens Energy, EtherSens Energy II, MONI:
Connect the voltage 230V AC to the labeled terminal connectors L1 and N.
The device starts up now, you will see the status of the device on the two-color illuminated LED display :
Green: ON
OFF
Red: ON
flashing at device boot
flashing 0,5 Hz
fast flashing
List of error codes:

1x flash:

2x flashes:

3x flashes:

4x flashes:

5x flashes:
If you want to reset your device, you must press and hold the reset-button FS when starting the device until the
LED lights up green. On some devices, the button is operated using a paper-clip and is located on the
bottom/back of the device.
device ready
device executes a restart or is powered off
device is booting
device is updating the firmware
device is logging data
output of error codes (see below)
Initialization error of a sensor.
Space on the SD card smaller than 1 Kilobyte
or SD card removed without logging off.
Error at last mail transfer (SMTP).
Error at last time adjusting (NTP).
No network connection available (only when there isn't a connection to the
Access-Point and no LAN link state available).
