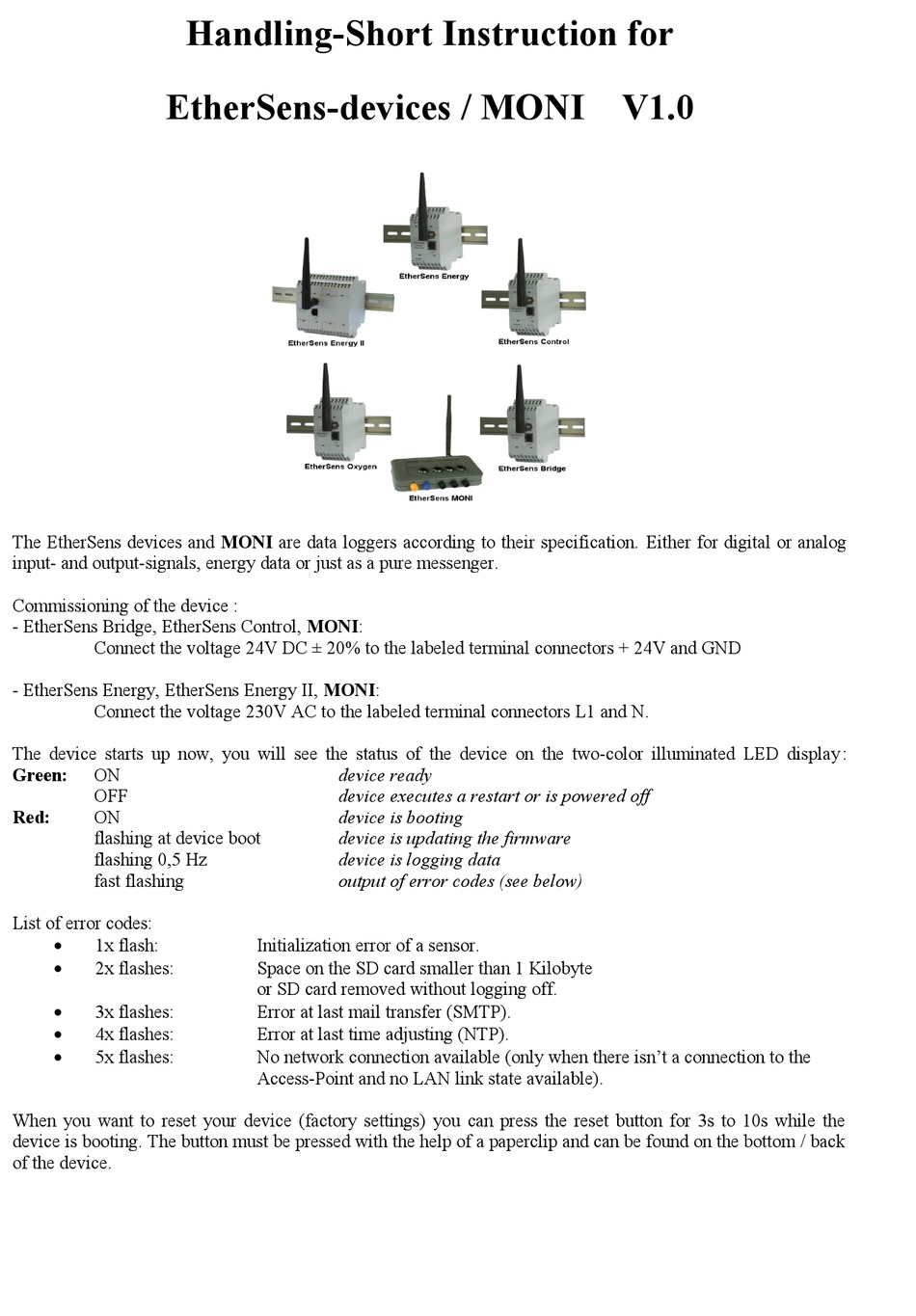

process-informatik EtherSens Energy Handling-Short Instruction

EtherSens-devices / MONI V1.0
The EtherSens devices and MONI are data loggers according to their specification. Either for digital or analog
input- and output-signals, energy data or just as a pure messenger.
Commissioning of the device :

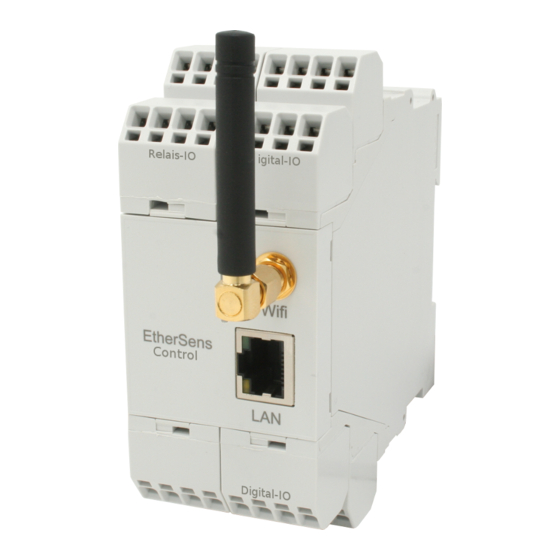

- EtherSens Bridge, EtherSens Control, MONI:
Connect the voltage 24V DC ± 20% to the labeled terminal connectors + 24V and GND
- EtherSens Energy, EtherSens Energy II, MONI:
Connect the voltage 230V AC to the labeled terminal connectors L1 and N.
The device starts up now, you will see the status of the device on the two-color illuminated LED display :
Green: ON
OFF
Red: ON
flashing at device boot
flashing 0,5 Hz
fast flashing
List of error codes:

1x flash:

2x flashes:

3x flashes:

4x flashes:

5x flashes:
When you want to reset your device (factory settings) you can press the reset button for 3s to 10s while the
device is booting. The button must be pressed with the help of a paperclip and can be found on the bottom / back
of the device.
Handling-Short Instruction for
device ready
device executes a restart or is powered off
device is booting
device is updating the firmware
device is logging data
output of error codes (see below)
Initialization error of a sensor.
Space on the SD card smaller than 1 Kilobyte
or SD card removed without logging off.
Error at last mail transfer (SMTP).
Error at last time adjusting (NTP).
No network connection available (only when there isn't a connection to the
Access-Point and no LAN link state available).
