CashCode CO5-CRP-ST33-ML User Manual

5. Diagnostics
If the red light on the front of the bill validator is ON insert bill and remove it after the red
light goes OFF. Count the number of red flashes and compare with the diagnostic chart
below.
# Description
1 Cassette is removed from bill
acceptor
2 Stacking motor does not rotate
3 Cassette is full
4 Mechanical jam in the cassette
5 Stacking motor electrical
overload
6 Failure of optical sensors
Notes:
•
If the bill was inserted but the red light on the front of the bill acceptor did not go OFF
there is a failure in communication.
•
When diagnostics is completed the red light becomes steady again. Do not consider it
as a flash and do not count it.
6. Features
DATA COLLECTION: CO5-CRP-ST33-MH(L) contains a data collecting software
feature.
To download the data from the BV use the followings:
Data Downloading software:
Bi-Directional Interface adapter:
or Serial Interface Test Adapter
TROPICAL CASSETTE ALGORITHM: CO5-CRP-ST33-MH(L) contains an algorithm
for bill stacking using the P-series (tropical) cassettes.

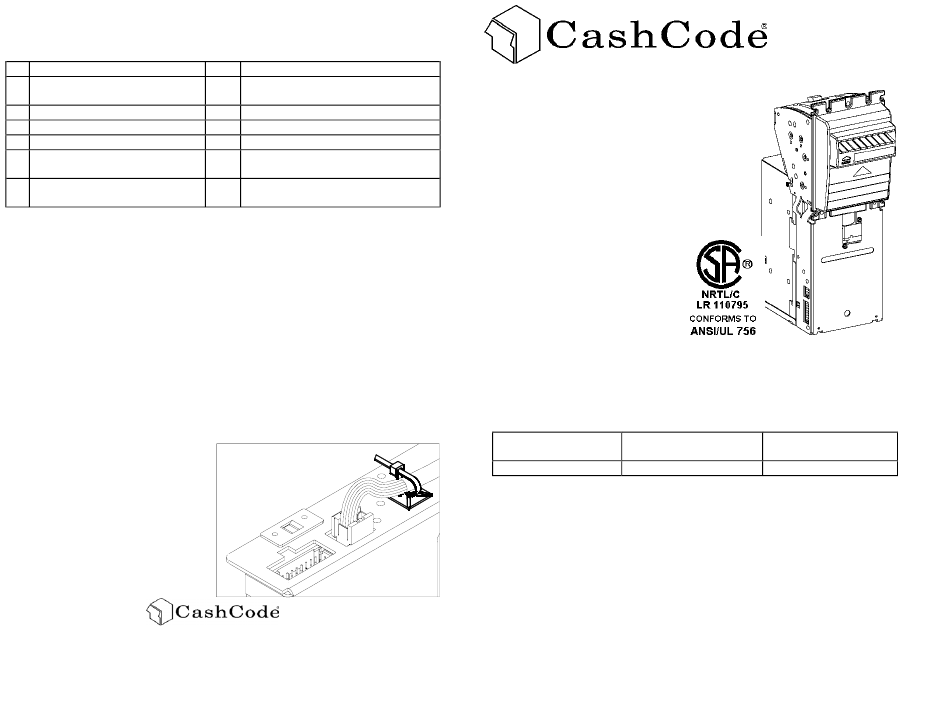

To eliminate occasional disconnection
of the cable use self-sticking Holder
and cable Flat Tie as shown on the
picture.
CashCode Company Inc.
553 Basaltic Rd, Concord, Ontario Canada. L4K 4W8
TEL: (905) 303-8874 (800)-584-2633
FAX: (905) 303-8875 (800)-593-2633
 1998-2003, CashCode Co. Inc
# Description
7 Failure of magnetic sensors
8 Transport motor does not move
9 Speed of transport motor is too high
10 Transport motor electrical overload
11 Bill pathway security latch is open
12 Banknote is in the entry slot of the
cassette and credit's not issued
PT# OPT-SW-DC
PT# OPT-AD-BD9
PT# OPT-AD-CS
PT# UG_ CO5-CRP-ST33-MH(L)_B 07/03
CO5-CRP-ST33-ML
Low height bezel
CO5-CRP-ST33-MH
High height bezel
Model AMZ-CLB-PLUS-UNV
for CashCode® Serial and
Bi-Directional Interfaces
1. General Specifications:
1000, 2000, 5000 10000, 20000 Colombian Pesos
CURRENCY:
INTERFACES: Pulse Interface
CashCode Serial Interface (MEI compatible)
Bi-Directional (RS232 MEI compatible) Interface
POWER REQUIREMENTS:
Operating Voltage Maximum Operating
12..14V DC
Note: Use current limiting Power Supply only
OPERATING TEMPERATURE:
TOTAL WEIGHT WITHOUT CASSETTE
ENCLOSURE: Bill Validator,
User's Guide,
Accessories: Power Harness, Part # OPT-HS-12v-06p
Front Label,
Holder with Flat Tie, Part #OPT-MKST-HFT
OPTIONAL ACCESSORIES:
Bi-Directional interface adapter,
Serial Interface Test adapter,
Data Reading software,
Jumper Connector,
12V Bill Validator
with Stacker
User's Guide
Maximum Current
Current (t< 2.0 sec)
0.8A 2.2A
-0 to +50 degrees Celsius
< 1.2 kg
Part #: CO5-CRP-ST33-MH(L)
Part # UG- CO5-CRP-ST33-MH(L)
Part # OPT-LB-CO5AD
Part # OPT-AD-BD9
Part # OPT-AD-CS
Part # OPT-SW-DC
Part # OPT-HS-JC18
