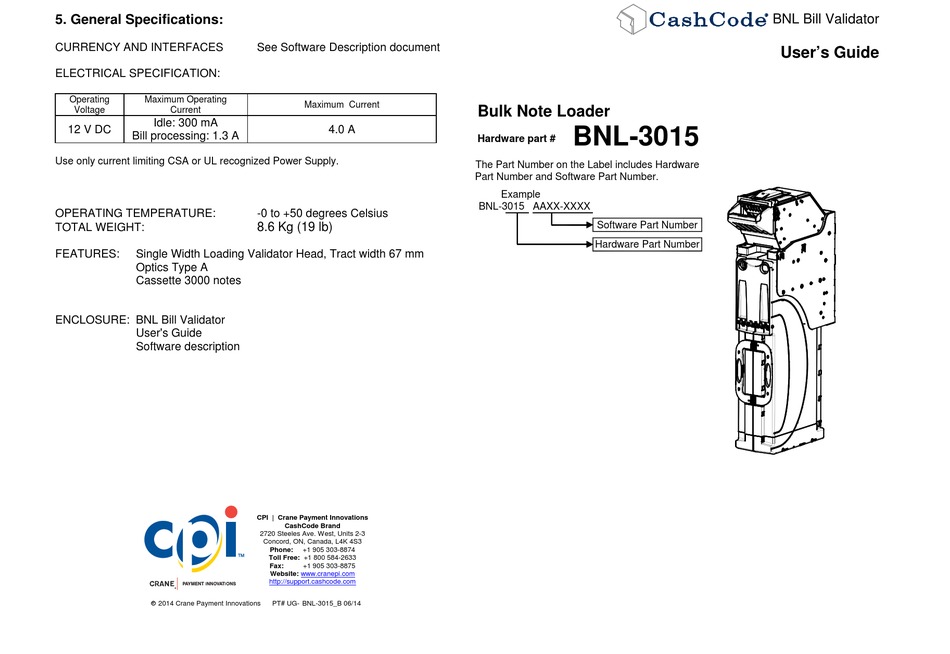

5. General Specifications:
CURRENCY AND INTERFACES
ELECTRICAL SPECIFICATION:
Operating
Maximum Operating
Voltage
Current
Idle: 300 mA
12 V DC
Bill processing: 1.3 A
Use only current limiting CSA or UL recognized Power Supply.
OPERATING TEMPERATURE:
TOTAL WEIGHT:
FEATURES:
Single Width Loading Validator Head, Tract width 67 mm
Optics Type A
Cassette 3000 notes
ENCLOSURE: BNL Bill Validator
User's Guide
Software description
2014 Crane Payment Innovations
See Software Description document
Maximum Current
4.0 A
-0 to +50 degrees Celsius
8.6 Kg (19 lb)
CPI | Crane Payment Innovations
CashCode Brand
2720 Steeles Ave. West, Units 2-3
Concord, ON, Canada, L4K 4S3
Phone:
+1 905 303-8874
Toll Free: +1 800 584-2633
Fax:
+1 905 303-8875
Website:
www.cranepi.com
http://support.cashcode.com
PT# UG- BNL-3015_B 06/14
Bulk Note Loader
BNL-3015
Hardware part #
The Part Number on the Label includes Hardware
Part Number and Software Part Number.
Example
BNL-3015 AAXX-XXXX
Software Part Number
Hardware Part Number
BNL Bill Validator
User's Guide
Advertisement
Related Manuals for CashCode BNL-3015
Summary of Contents for CashCode BNL-3015
- Page 1 Use only current limiting CSA or UL recognized Power Supply. The Part Number on the Label includes Hardware Part Number and Software Part Number. Example BNL-3015 AAXX-XXXX OPERATING TEMPERATURE: -0 to +50 degrees Celsius Software Part Number 8.6 Kg (19 lb)
- Page 2 1. Typical DIP Switches Setting 3. Power connections To access switches open the back lid. Switches are located on the right side of +12 V lines must be connected together directly at the connector. the lid, as observed from the bezel. The “up” state is defined as the switch position closer to the top cover of the lid.
