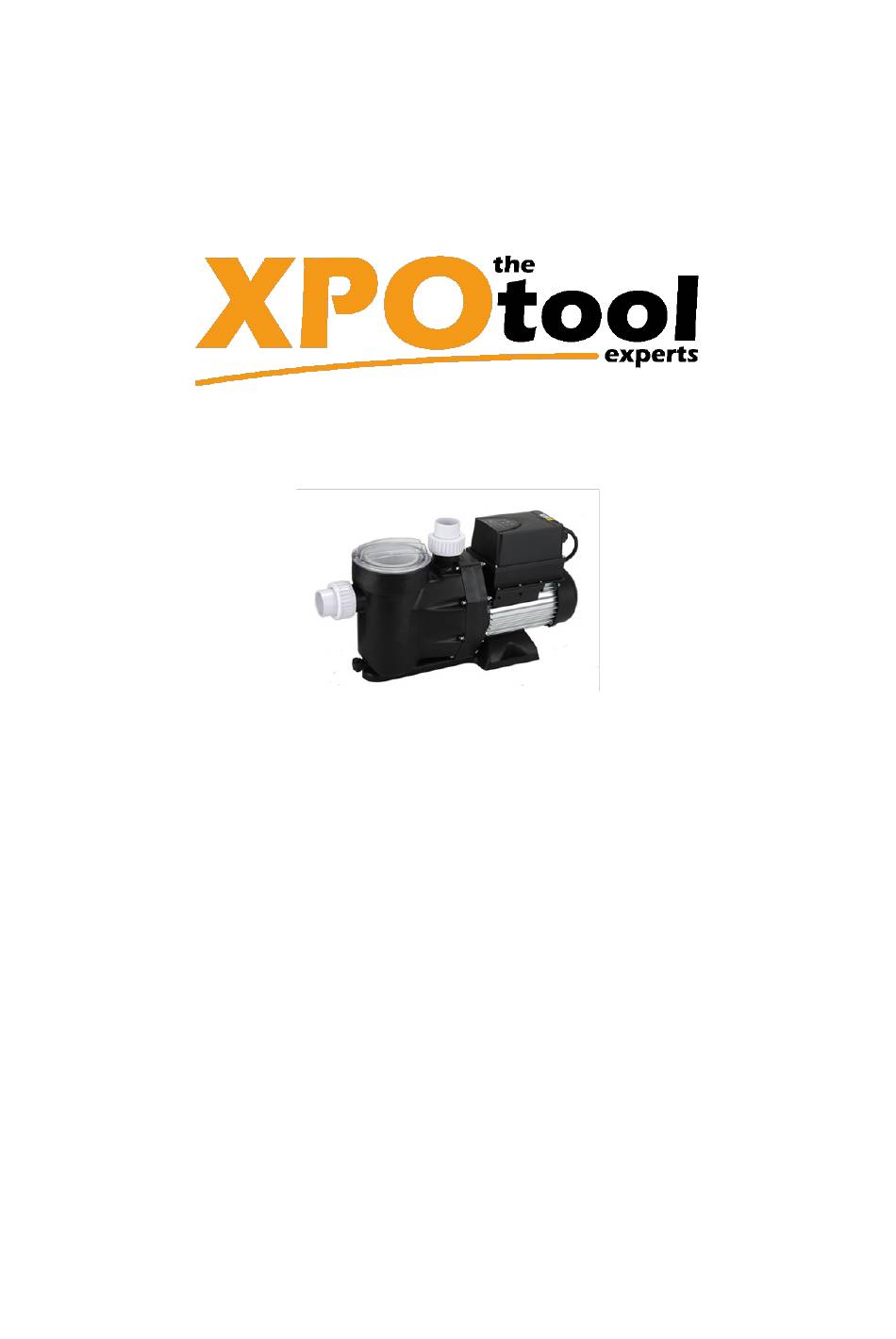

User's Manual
Pool Pump with Variable Rotation Speed
63908–63910
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further
developments.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
Advertisement
Related Manuals for XPOtool HPP Series
Summary of Contents for XPOtool HPP Series
- Page 1 User’s Manual Pool Pump with Variable Rotation Speed 63908–63910 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further developments.
- Page 2 To allow for a trouble-free complaint or return, it is important to contact our customer service team before returning your goods. Retourenabteilung WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler – Germany E-mail: service@wiltec.info Tel: +49 2403 55592–0 Fax: +49 2403 55592–15 https://www.XPOtool.com Item 63908–63910 Page 2 The Tool Experts 03 2025-1...
- Page 3 • Whenever you use the pump, install the frequency converter according to the instructions. • Always and only operate the pump in accordance with the instructions. https://www.XPOtool.com Item 63908–63910 Page 3 The Tool Experts 03 2025-1...
- Page 4 50-Hz mode: S1 = 1150 RPM, S2 = 1700 RPM, S3 = 2100 RPM, S4 = 2850 RPM • 60-Hz mode: S1 = 1700 RPM, S2 = 2500 RPM, S3 = 3000 RPM, S4 = 3600 RPM https://www.XPOtool.com Item 63908–63910 Page 4 The Tool Experts 03 2025-1...
-
Page 5: Temperature Protection
If the voltage deviates by more than ±20 % from the rated value for over 3 s, the system shuts down and triggers an alarm. • Once the voltage returns to within ±15 %, the system resumes operation automatically. https://www.XPOtool.com Item 63908–63910 Page 5 The Tool Experts... - Page 6 • RS485: interface for MODBUS communication (reserved) • RLY1: Fault-signal output • RLY2: Output for light relay Active from 18:00 to 24:00, with LCD indication when the pump is running. https://www.XPOtool.com Item 63908–63910 Page 6 The Tool Experts 03 2025-1...
- Page 7 WilTec Wildanger Technik GmbH Königsbenden 12 / 28 52249 Eschweiler Germany Important Note: Reproduction and any commercial use (of parts) of this operating manual, requires a written permission of WilTec Wildanger Technik GmbH. https://www.XPOtool.com Item 63908–63910 Page 7 The Tool Experts 03 2025-1...
