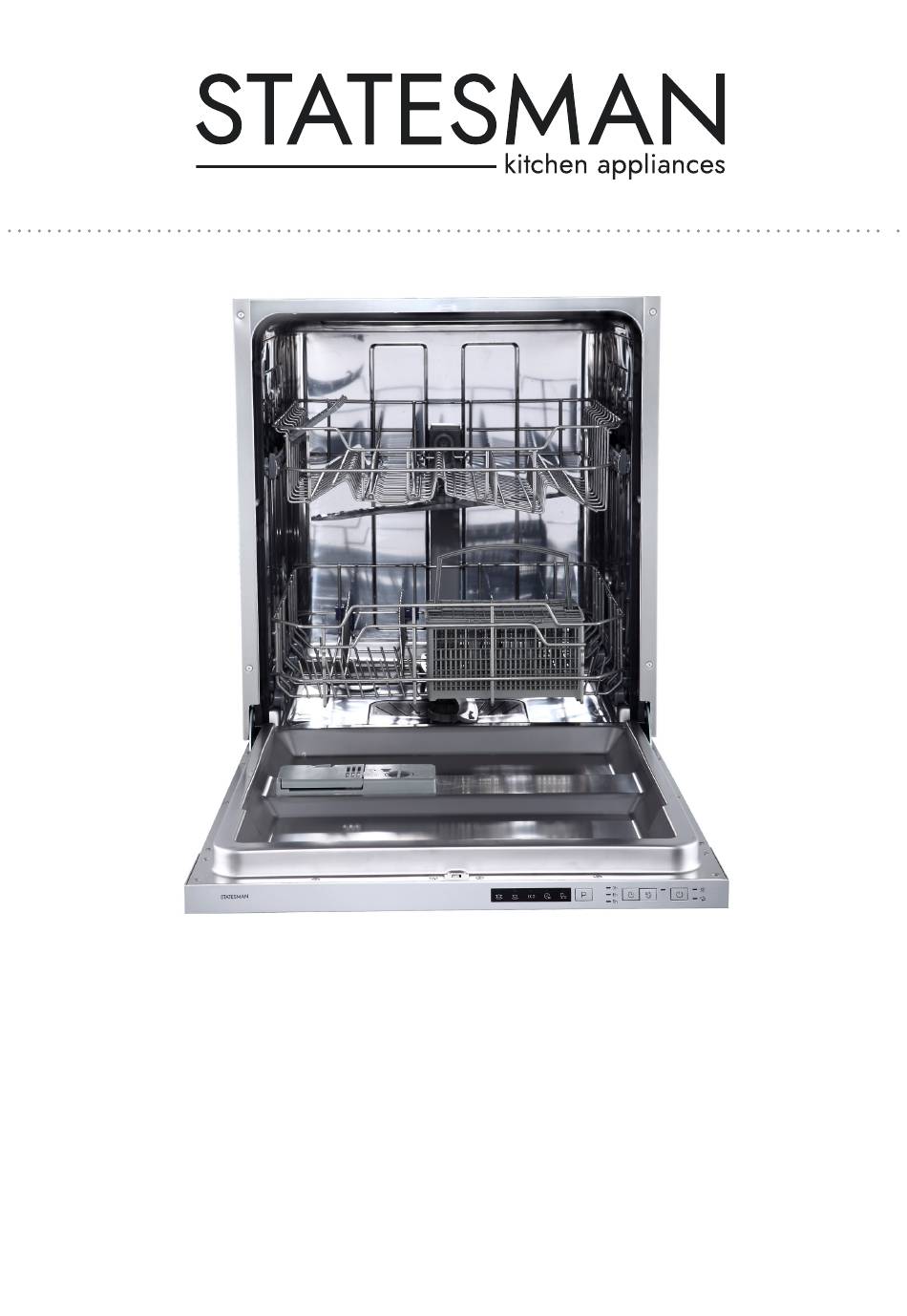

- Page 1 BDW6014 DISHWASHER Instruction Manual Please read these instructions carefully before use and retain for future reference. Before switching on your appliance – Always check for any damage that may have been caused in transit.
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions ......3 - 5 Specification ............6 - 7 Appliance Overview .............8 Installation ............9 - 11 Power Connection ............9 Water Supply and Draining ..........9 Connection of Drain Hoses .........10 Positioning the Appliance ..........11 Operating Instructions ........12 - 27 Before Using your Appliance ........12 Water Softener ............12 Adjusting Salt Consumption ........12... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read and follow all of the instructions even if you feel you are familiar with the product, and find a place to keep this manual handy for future reference. Important: This product is intended for domestic indoor household use only. - Page 4 • This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with an earthing conductor plug. • The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances.
- Page 5 • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard. • During installation, the power supply must not be excessively or dangerously bent or flattened. • Do not tamper with controls. • The appliance needs to be connected to the main • water valve using new hose sets.
-
Page 6: Specification
SPECIFICATION Sheet of household dishwasher according to EU Directive 1016/2010 & 1059/2010: Manufacturer Statesman Type / Description BDW6014 Standard place settings Energy efficiency class (1) A++/E Annual energy consumption (2) 266kWh Energy consumption of the standard cleaning cycle 0,937kWh Power consumption of off-mode 0,45 W Power consumption of left-on mode... - Page 7 Product Information Sheet (EN60436) Supplier’s name or trade mark: Statesman Supplier’s address ( Model identifier: BDW6014 General product parameters: Parameter Value Parameter Value Height 81,5 Rated capacity ( ) (ps) Dimensions in cm Width 59,8 Depth 55,0 EEI ( 55,9...
-
Page 8: Appliance Overview
APPLIANCE OVERVIEW Inner Pipe Lower Spray Arm Salt Container Filter Assembly Dispenser Cutlery Basket Upper Basket Lower Basket Cutlery Rack Upper Spray Arm Cup Rack NOTE: Images are for reference only... -
Page 9: Installation
INSTALLATION WARNING: ELECTRICAL SHOCK HAZARD Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. IMPORTANT: The installation of the pipes and electrical equipment should be done by professionals. POWER CONNECTION WARNING: For personal safety: Do not use an extension cord or an adapter plug with this appliance. -
Page 10: Connection Of Drain Hoses
How to connect the safety supply hose • Pull The safety supply hoses completely out from storage compartment located at rear of dishwasher. • Tighten the screws of the safety supply hose to the faucet with 3/4inch thread. • Turn water fully on before starting the dishwasher. How to disconnect the safety supply hose • Turn off the water. -
Page 11: Positioning The Appliance
Syphon connection The waste connection must be at a height less than 100 cm (maximum) from the bottom of the dish. The water drain hose should be fixed. POSITIONING THE APPLIANCE Position the appliance in the desired location. The back should rest against the wall behind it, and the sides along the adjacent cabinets or walls. -
Page 12: Operating Instructions
OPERATING INSTRUCTIONS Before using your Appliance Inside Outside 1. Set the water softener 2. Load the salt Into the softener Load the basket 3. Fill the dispenser Water Softener The water softener must be set manually, using the water hardness dial. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. -
Page 13: Loading Salt Into The Softener
Loading the Salt into the Softener NOTE: Always use salt intended for dishwasher use. The salt container is located beneath the lower basket and should be filled as explained in the following: WARNING: Only use salt specifically designed for dishwasher use! Every other type of salt not specifically designed for dishwasher use, especially table salt, will damage the water softener. -
Page 14: Adjusting The Upper Basket
Adjusting the upper basket Type 1: The height of the upper basket can be easily adjusted to accommodate taller dishes in either the upper or lower basket. To adjust the height of the upper rack, follow these steps: lower position Pull out the upper basket. -
Page 15: Folding Back The Cup/Rack Shelves
Folding back the cup shelves To make room for taller items in the upper basket, raise the cup rack upwards. You can then lean the tall glasses against it. You can also remove it when it is not required for use. Folding back the rack shelves The spikes of the lower basket are used for holding plates and a platter. -
Page 16: Recommendations For Loading
Recommendations for loading the dishwasher Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. For best performance of the dishwasher, follow these loading guidelines. (Features and appearance of baskets and cutlery baskets may vary from your model.) Place objects in the dishwasher in following way: • Items such as cups, glasses, pots/pans, etc. -
Page 17: Loading The Baskets
Loading the cutlery basket Cutlery should be placed in the cutlery rack separately from each other in the appropriate positions. Make sure the utensils do not nest together as this may cause bad performance. WARNING: Do not let any item extend through the bottom. Always load sharp utensils with the sharp point down! Loading the Baskets According to EN60436: Upper Basket:... - Page 18 Cutlery Rack: NOTE: Please place the light flat wares on the shelf. The total weight is less than 1.5kg. Cutlery Basket: Number Item Soup Spoons Forks Knives Tea Spoons Dessert Spoons Serving Spoons Serving Fork Information for comparability tests in accordance with EN60436 Gravy Ladle Capacity: 14 place settings Position of the upper basket: lower position Program: ECO Rinse aid setting: Max Softener setting: H3...
-
Page 19: Function Of The Rinse Aid And Detergent
Function of the Rinse Aid and Detergent The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. WARNING: Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). -
Page 20: Filling The Rinse Aid Reservoir
Filling the Rinse Aid Reservoir Remove the rinse aid reservoir cap Carefully pour in the rinse-aid into its by rotating it counter clockwise. dispenser, whilst avoiding overflow. NOTE: Clean up any spilled rinse aid with an absorbent cloth to avoid excessive Close the rinse aid reservoir cap by foaming during the next wash. -
Page 21: Filling The Detergent Dispenser
Filling the Detergent Dispenser Push latch to open Press the release catch on the Add detergent into the larger cavity detergent dispenser to open the cover. (A) for the main wash cycle. For more heavily soiled wash loads, also add some detergent into the smaller cavity (B) for the pre-wash cycle. -
Page 22: Control Panel
Control Panel Operation (Button) 1 Power Press this button to turn on your dishwasher. 2 Half-load When you have less than half of a full place setting to wash, you can choose this function to save energy and water. (It can only be used with Intensive, Universal, ECO, Glass and 90 min) 3 Delay Press the button to set the delay time. -
Page 23: Wash Cycle Tables
Wash Cycle Table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also shows various information about the programs. ( )Means: need to fill rinse into the Rinse-Aid Dispenser. Description of Detergent Running Energy Program Water (L) Rinse Aid Cycle... -
Page 24: Starting A Cycle Wash
Starting a Cycle Wash 1. Draw out the lower and upper basket, load the dishes and push them back. It is recommended to load the lower basket first, then the upper one. 2. Pour in the detergent. 3. Insert the plug into the socket. For the power supply refer to last page ”Product fiche”. Make sure that the water supply is turned on to full pressure. 4. -
Page 25: Cleaning And Maintenance
CLEANING AND MAINTENANCE The Door and the Door Seal Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. Any deposits should be wiped off before the door is closed. - Page 26 Larger food remnants can be Reassemble the filters in the reverse cleaned by rinsing the filter order of the disassembly, replace the under running water. For a filter insert, and rotate clockwise to more thorough clean, use a soft the close arrow. cleaning brush. WARNING: Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage.
-
Page 27: Fuse Replacement
Frost Precaution Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows: 1. Cut off the electrical power to the dishwasher at the supply source. 2. Turn off the water supply and disconnect the water inlet pipe from the water valve. 3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water) 4. -
Page 28: Troubleshooting
TROUBLESHOOTING If you are having problems with your appliance, please use our troubleshooting guide below. If you are unable to resolve the issue using this guide please ring our Customer Service Department on 0844 848 5861. Please have the model code and purchase information available. Problem Possible Cause Solution... - Page 29 Problem Possible Cause Solution The affected items are not Avoid washing items that are not corrosion corrosion resistant. resistant in the dishwasher. A program Always run a wash program without any There are rust was not run after dishwasher crockery after adding stains on cutlery salt was added.
-
Page 30: Error Codes
Problem Possible Cause Solution Improper loading Load the dishwasher as suggested in the directions. Dishes are removed too soon Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can come out. Take out the dishes until the inside temperature is safe to touch. - Page 34 38 Bluestem Road, Ransomes Europark Ipswich, IP3 9RR 0844 848 5861...
