Installation instructions for Carplay interface
Harman Kardon
The interface is connected via a connecting cable with
sockets. It is estimated that it takes about 30 minutes of
work to connect the interface. No programming required. There is enough
space behind the display to install the interface. The interface uses the existing
microphone.
Tools Needed
Torx screwdriver (20), auxiliary tools
Step 1. Turn off the ignition
By turning off the ignition, there is no more power on the radio and the cables
can be safely disconnected and connected.

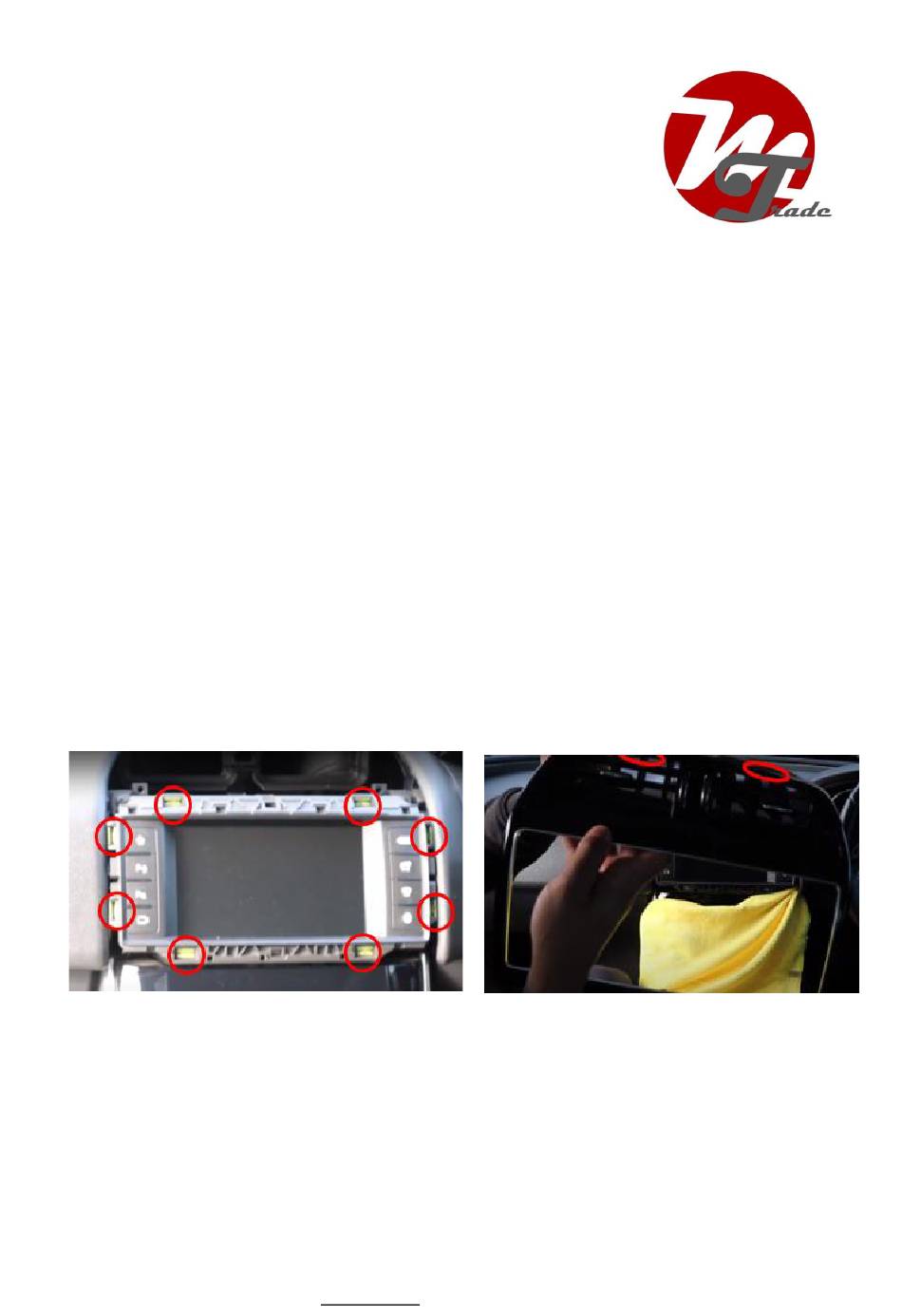

Step 2. Remove the trim strip from the display (unclip)
Using an auxiliary tool (spatula), carefully unclip the panel. To do this, start at
the top right of the clip and work your way counterclockwise via the two push
clips at the top to the top left of the screen. Then click out the two clips at the
top of the display. Use the space created to now pop off the bottom four clips
one by one. For the bottom two clips, protect the dashboard with tape or fabric
to be able to apply some force without damaging anything.
MoTrade
24 december 2023 ©
Advertisement
Related Manuals for Motrade XE HK
Summary of Contents for Motrade XE HK
- Page 1 Use the space created to now pop off the bottom four clips one by one. For the bottom two clips, protect the dashboard with tape or fabric to be able to apply some force without damaging anything. MoTrade 24 december 2023 ©...
- Page 2 Unclick the cover plate under the air conditioning panel (it is clicked into place in three places). Pull off the air conditioning panel completely. This one is very tight, but it's 6 clips, it's not screwed. MoTrade 24 december 2023 ©...
- Page 3 Step 6. Connect the black power strip (plugs) Disconnect the black power strip from the multimedia unit by pressing the tab of the plug, pressing the lever down slightly, and then pulling. The power strip will then come out on its own. MoTrade 24 december 2023 ©...
- Page 4 To do this, press the tab of the video plug and, if necessary, use a thin flat object to pop the plug loose. Connect the released video plug to the socket of the other video cable (this can only be done in 1 way). MoTrade 24 december 2023 ©...
- Page 5 For sound, the audio source must first be set to AUX. Check the position of the dip switches in case something is not functioning properly. After changing a dip switch, the power must be drawn from the unit (power plug out/in). MoTrade 24 december 2023 ©...
- Page 6 The system is basically ready. Stap 13. Enjoy! This manual has been compiled on the basis of experience and with due care. No rights can be derived from it. Improvement tips/tricks are of course always welcome! (motrade@kpnmail.nl) MoTrade 24 december 2023 ©...
