Installation instructions for Carplay interface
MINI NBT-EVO system
The interface is connected via a connection cable with contrast
plugs. It is estimated that it takes about 30 minutes of work to connect the interface.
When purchasing the interface, we take care
the correct settings. No
of
programming is necessary.

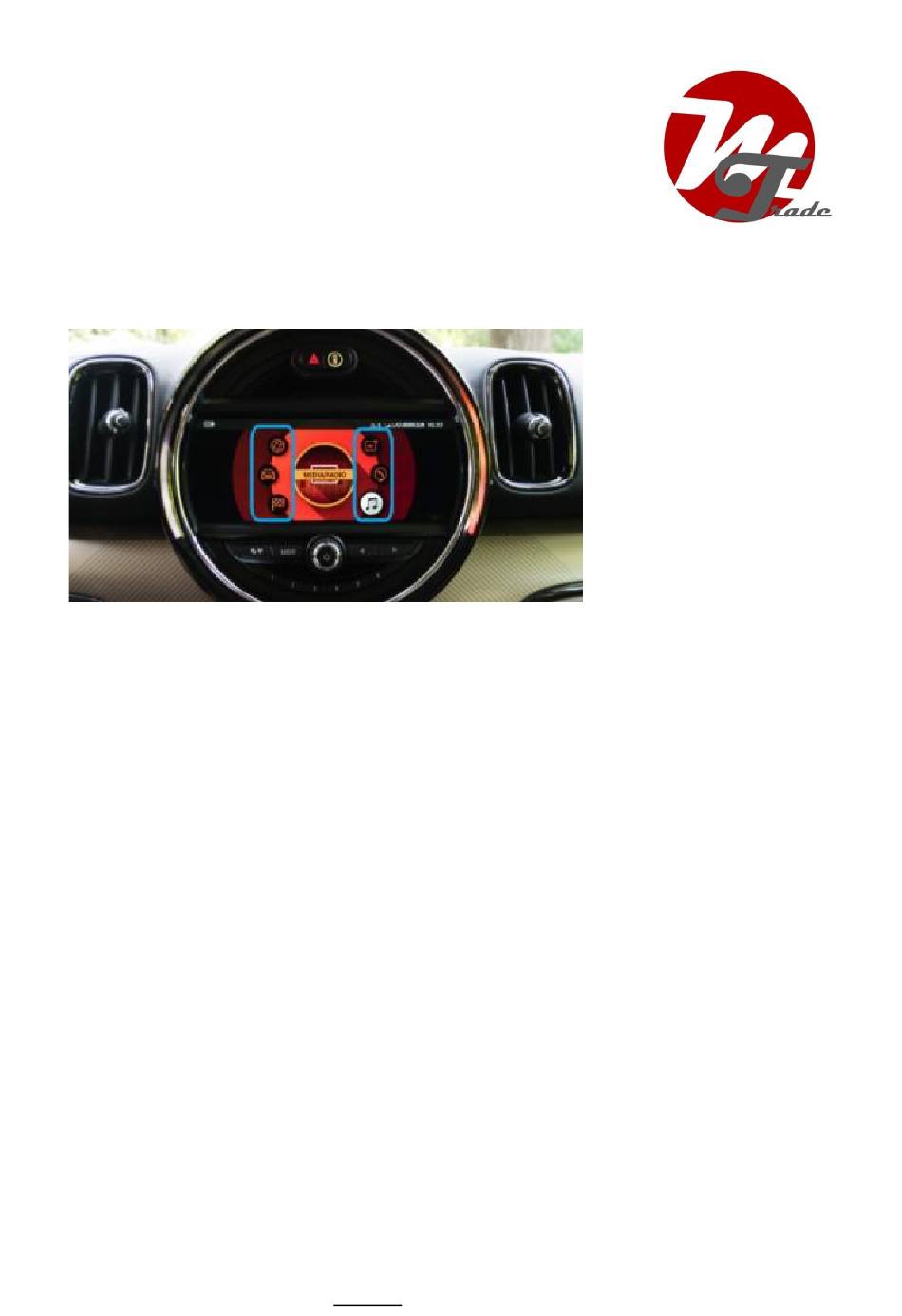

The interface is suitable for systems with 6 icons (see image).
In most cases, the
5 instead of 6 icons. However,
interface also works on systems with
it is
when not.
not possible to say in advance when and
Necessary tools
Torx screwdriver (20x100)
Step 1. Turn off the contact
By turning off the ignition, there is no more power on the multimedia unit and the
cables can be safely disconnected and connected.
Step 2. Remove trim screen (pull)
Remove the two plugs at the bottom
and gently pull the trim off the display.
of the trim
If it does not work the trim a little turn. In principle, the list should be easy to
delete
forcing.
without
MoTrade 27 december 2021 ©
